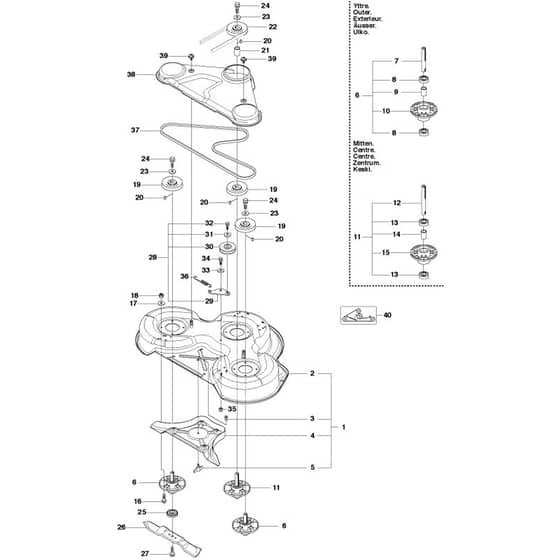

McCulloch M125-94FH - 967028401 - 2014-03 - Cutting Equipment (2) Parts Diagram

Name: McCulloch M125-94FH - 967028401 - 2014-03 - Cutting Equipment (2) Parts Diagram
SKU: m125_94fh_967028401_2014_03_cutting_equipment_2_-group
Price: 1.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M125-94FH - 967028401 - 2014-03 - Cutting Equipment (2) Parts Diagram

Description

McCulloch M125-94FH - 967028401 - 2014-03 - Cutting Equipment (2) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV581 11 76-12 Available to backorder	Deck Shell Assy (1)	£530.40 £442.00
3	HV506 91 62-01 Available to backorder	Nut (1)	£6.08 £5.07
4	HV544 06 58-01 Available to backorder	Plug (1)	£91.76 £76.47
5	HV544 06 61-01 Available to backorder	Knob (1)	£6.08 £5.07
6	HV576 38 41-02 In stock	Blade Housing Assy	£134.88 £112.40
10	HV576 38 42-01 Available to backorder	Bearing Housing (6)	£76.60 £63.83
11	HV576 38 41-03 Available to backorder	Blade Housing Assy	£149.12 £124.27
12	HV544 06 79-03 Available to backorder	Shaft (11)	£20.96 £17.47
13	HV738 23 04-34 Available to backorder	Ball Bearing (11)	£9.96 £8.30
16	HV535 42 38-01 Available to backorder	Screw Rsqm	£5.04 £4.20
17	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
18	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
19	HV506 92 21-01 Available to backorder	Pulley	£37.42 £31.18
20	HV506 53 35-01 Available to backorder	Parallel Key	£4.54 £3.78
21	HV544 06 80-03 Available to backorder	Spacing Sleeve	£14.88 £12.40
22	HV506 77 86-01 Available to backorder	Pulley	£82.51 £68.76
23	HV734 11 74-41 Available to backorder	Washer	£4.54 £3.78
24	HV506 67 54-02 Available to backorder	Screw Ehhfm	£7.57 £6.31
25	HV544 06 49-01 In stock	Blade Holder	£10.73 £8.94
26	HV579 65 25-10 In stock	Blade	£38.34 £31.95
28	HV586 96 40-01 In stock	Belt Tensioner Assy	£41.40 £34.50
29	HV506 79 71-01 Available to backorder	Spännarm Kpl. (28)	£21.36 £17.80
31	HV734 11 64-41 Available to backorder	Washer (28)	£3.28 £2.73
32	HV506 55 83-02 Available to backorder	Screw Ehhft (28)	£3.62 £3.02
34	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.54 £3.78
36	HV506 53 31-01 Available to backorder	Spring	£12.04 £10.03
37	HV589 53 07-01 In stock	Belt	£52.44 £43.70
38	HV522 82 19-02 Available to backorder	Belt Cover	£50.46 £42.05
39	HV544 40 05-01 Available to backorder	Screw	£2.80 £2.33
40	HV506 78 97-01 Available to backorder	Label	£5.04 £4.20
