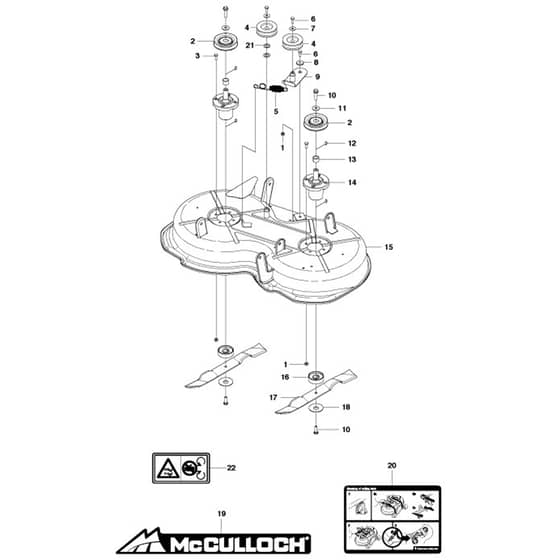

McCulloch M125-85FH - 967186901 - 2016-01 - 85cm Cutting Deck (1) Parts Diagram

Name: McCulloch M125-85FH - 967186901 - 2016-01 - 85cm Cutting Deck (1) Parts Diagram
SKU: m125_85fh_967186901_2016_01_85cm_cutting_deck_1_-group
Price: 2 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M125-85FH - 967186901 - 2016-01 - 85cm Cutting Deck (1) Parts Diagram

Description

McCulloch M125-85FH - 967186901 - 2016-01 - 85cm Cutting Deck (1) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
2	HV574 46 07-01 Available to backorder	Pulley	£35.26 £29.38
3	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.54 £3.78
4	HV586 10 43-02 Available to backorder	Belt Tensioner Wheel	£20.34 £16.95
5	HV584 29 88-01 Available to backorder	Spring	£14.88 £12.40
6	HV725 24 53-71 Available to backorder	Screw Ehhm	£4.54 £3.78
7	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
8	HV734 11 74-41 Available to backorder	Washer	£4.54 £3.78
10	HV506 67 54-02 Available to backorder	Screw Ehhfm	£7.57 £6.31
11	HV734 11 77-71 Available to backorder	Washer	£2.58 £2.15
12	HV506 53 35-01 Available to backorder	Parallel Key	£4.54 £3.78
13	HV573 96 65-01 Available to backorder	Tube	£9.72 £8.10
14	HV573 96 86-01 Available to backorder	Bearing Housing Assy	£115.22 £96.02
15	HV581 06 11-02 Available to backorder	Cutting Deck	£451.20 £376.00
16	HV581 24 97-01 Available to backorder	Adapter	£19.40 £16.17
17	HV581 08 35-01 Available to backorder	Blade	£37.68 £31.40
18	HV506 79 23-03 Available to backorder	Knife Plate	£12.94 £10.78
21	HV581 70 95-01 Available to backorder	Washer	£4.06 £3.38
22	HV574 51 00-01 Available to backorder	Decal	£3.12 £2.60
