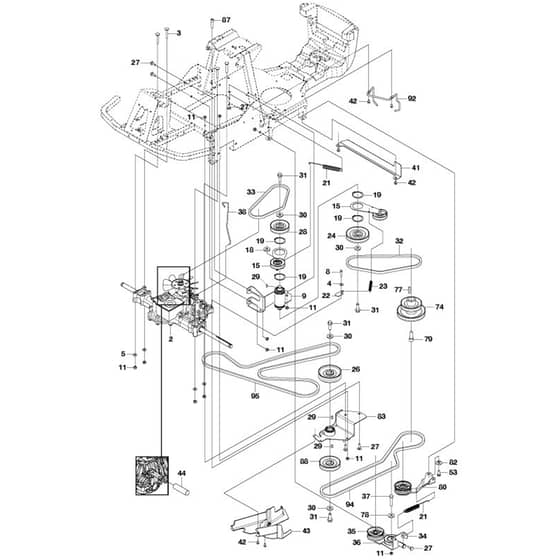

McCulloch M125-85FH - 967186901 - 2013-01 - Transmission Parts Diagram

Name: McCulloch M125-85FH - 967186901 - 2013-01 - Transmission Parts Diagram
SKU: m125_85fh_967186901_2013_01_transmission-group
Price: 1.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M125-85FH - 967186901 - 2013-01 - Transmission Parts Diagram

Description

McCulloch M125-85FH - 967186901 - 2013-01 - Transmission Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV585 23 51-01 Available to backorder	Transmission	£886.80 £739.00
4	HV535 46 41-01 In stock	Washer	£4.06 £3.38
5	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
8	HV725 24 59-51 Available to backorder	Screw Ehhm	£6.34 £5.28
9	HV576 45 83-01 Available to backorder	Housing Assy	£211.44 £176.20
11	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
15	HV576 36 37-01 Available to backorder	Belt Tensioner	£58.86 £49.05
18	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
21	HV575 56 72-01 Available to backorder	Spring	£12.28 £10.23
23	HV574 50 62-01 Available to backorder	Spring	£7.12 £5.93
26	HV578 34 75-02 Available to backorder	Pulley	£31.66 £26.38
27	HV727 64 49-51 Available to backorder	Screw Rsqm	£4.02 £3.35
29	HV506 53 35-01 Available to backorder	Parallel Key	£4.54 £3.78
30	HV734 11 74-41 Available to backorder	Washer	£4.54 £3.78
31	HV506 67 54-01 Available to backorder	Screw Ehhfm	£7.12 £5.93
32	HV576 36 39-01 Available to backorder	Belt	£33.06 £27.55
33	HV576 36 40-01 Available to backorder	Belt	£29.52 £24.60
35	HV539 91 90-78 In stock	Pulley	£38.09 £31.74
36	HV506 94 69-01 Available to backorder	Pulley	£37.20 £31.00
37	HV725 24 55-71 Available to backorder	Screw Ehhm	£3.30 £2.75
42	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.58 £2.15
43	HV580 67 62-01 Available to backorder	Cover	£14.88 £12.40
53	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.54 £3.78
78	HV506 59 75-01 Available to backorder	Washer	£9.72 £8.10
79	HV506 55 60-02 Available to backorder	Screw Unc	£7.56 £6.30
83	HV576 45 19-02 Available to backorder	Idler Axle Assy	£106.12 £88.43
87	HV725 54 55-01 Available to backorder	Screw Ihscm	£5.32 £4.43
88	HV577 16 95-02 Available to backorder	Pulley	£28.80 £24.00
92	HV578 20 82-01 Available to backorder	Belt Guide	£7.76 £6.47
94	HV589 56 39-01 Available to backorder	Belt	£49.58 £41.32
95	HV589 53 85-01 Available to backorder	Belt	£65.52 £54.60
