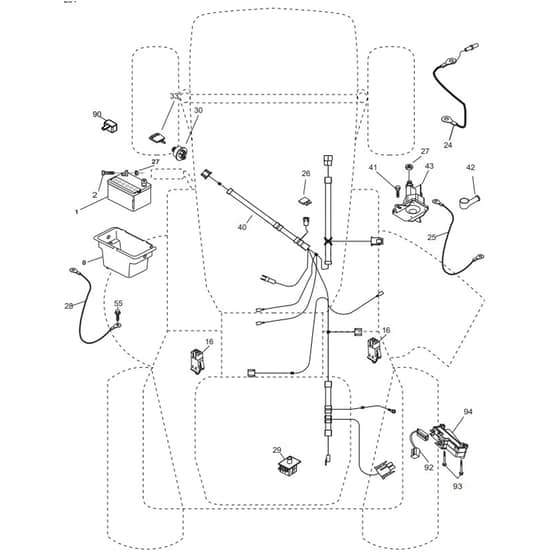

McCulloch M11597 - 96011023407 - 2010-07 - Electrical Parts Diagram

Name: McCulloch M11597 - 96011023407 - 2010-07 - Electrical Parts Diagram
SKU: m11597_96011023407_2010_07_electrical-group
Price: 2.15 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M11597 - 96011023407 - 2010-07 - Electrical Parts Diagram

Description

McCulloch M11597 - 96011023407 - 2010-07 - Electrical Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 17 05-51 Available to backorder	Throttle Control	£40.76 £33.97
2	HV874 76 04-12 Available to backorder	Bolt	£2.58 £2.15
8	HV532 17 66-89 Available to backorder	Battery Box	£16.38 £13.65
16	HV532 17 61-38 Available to backorder	Micro Switch	£14.32 £11.93
24	HV532 42 12-99 Available to backorder	Cable	£23.12 £19.27
26	HV532 17 51-58 Available to backorder	Fuse	£5.68 £4.73
29	HV532 19 27-49 Available to backorder	Switch.Seat.Dp W/Ramps	£18.56 £15.47
30	HV532 19 33-50 Available to backorder	Ignition Module	£31.08 £25.90
33	HV532 41 19-35 Available to backorder	Key	£10.48 £8.73
40	HV532 42 12-51 Available to backorder	Cable	£145.20 £121.00
43	HV582 04 28-02 In stock	Solenoid	£21.96 £18.30
55	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
94	HV532 19 18-34 Available to backorder	Module.Reverse.Ros	£22.84 £19.03
