McCulloch M11577RB - 96051001103 - 2011-08 - Bagger Parts Diagram

Name: McCulloch M11577RB - 96051001103 - 2011-08 - Bagger Parts Diagram
SKU: m11577rb_96051001103_2011_08_bagger-group
Price: 1.16 GBP
Availability: InStock

Part No. m11577rb_96051001103_2011_08_bagger-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M11577RB - 96051001103 - 2011-08 - Bagger Parts Diagram

Description

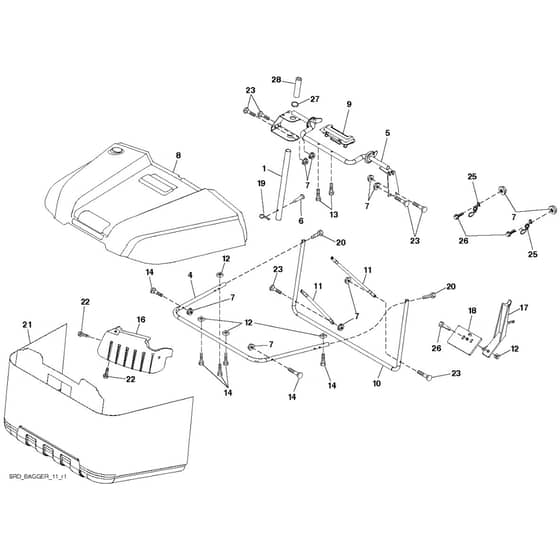

McCulloch M11577RB - 96051001103 - 2011-08 - Bagger Parts Diagram

	Part No.	Details
1	HV532 42 86-10 Available to backorder	Tube	£32.45 £27.04
6	HV532 12 68-75 Available to backorder	Rivet	£2.48 £2.07
7	HV586 66 89-01 Available to backorder	Nut	£2.94 £2.45
8	HV532 42 59-54 Available to backorder	Cover	£118.32 £98.60
10	HV532 41 71-90 Available to backorder	Frame	£72.12 £60.10
11	HV532 41 71-88 Available to backorder	Support	£35.04 £29.20
13	HV532 42 17-80 Available to backorder	Screw	£2.52 £2.10
16	HV532 42 15-66 Available to backorder	Deflector	£24.36 £20.30
17	HV532 42 17-49 Available to backorder	Lever	£12.40 £10.33
19	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
20	HV585 36 88-01 Available to backorder	Bolt	£3.59 £2.99
22	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
23	HV872 04 04-10 Available to backorder	Bolt	£3.32 £2.77
25	HV583 38 98-01 Available to backorder	Spring	£6.01 £5.01
28	HV532 16 57-87 Available to backorder	Handle	£10.43 £8.69
