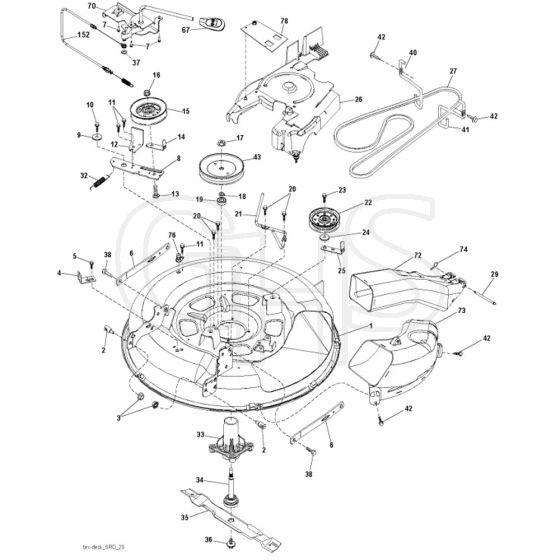

McCulloch M11577RB - 96041016502 - 2011-08 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M11577RB - 96041016502 - 2011-08 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 19 28-70 Out of stock	Spindle (--)	£124.66 £103.88
2	HV532 19 51-61 Out of stock	Stud	£2.38 £1.98
3	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
4	HV532 41 76-45 Out of stock	Bracket	£7.44 £6.20
5	HV817 00 05-10 Out of stock	Bolt	£2.96 £2.47
7	HV532 41 63-58 Out of stock	Screw	£1.63 £1.36
9	HV532 19 90-92 Out of stock	Spacer	£5.60 £4.67
10	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
11	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
12	HV532 40 01-30 Out of stock	Arm	£17.21 £14.34
13	HV596 13 61-01 Out of stock	Bolt	£6.37 £5.31
15	HV593 78 78-01 In stock	Pulley	£45.84 £38.20
16	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
17	HV596 13 48-01 Out of stock	Nut	£1.19 £0.99
18	HV532 18 76-90 In stock	Washer	£2.96 £2.47
19	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
20	HV584 95 39-01 Out of stock	Screw	£4.74 £3.95
21	HV532 41 69-10 In stock	Belt Guard	£17.72 £14.77
22	HV596 48 14-01 Out of stock	Pulley	£50.26 £41.88
23	HV817 49 06-28 Out of stock	Screw	£5.99 £4.99
27	HV532 41 92-71 Out of stock	Belt	£84.54 £70.45
32	HV532 40 18-72 Out of stock	Spring	£5.29 £4.41
33	HV587 81 97-01 Out of stock	Bearing Housing	£153.76 £128.13
34	HV532 19 28-72 Out of stock	Shaft Assy	£153.76 £128.13
35	HV532 41 92-74 Out of stock	Ride On Blade	£36.86 £30.72
36	HV532 19 30-03 In stock	Screw	£12.74 £10.62
38	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
40	HV532 41 92-70 Out of stock	Belt Guard	£19.16 £15.97
41	HV532 41 92-65 Out of stock	Belt Guard	£16.01 £13.34
42	HV817 00 06-12 In stock	Screw	£4.74 £3.95
43	HV525 56 80-02 Out of stock	Pulley	£66.92 £55.77
67	HV532 40 97-92 Out of stock	Handle	£8.81 £7.34
70	HV532 19 83-32 In stock	Clutch	£51.76 £43.13
73	HV532 42 52-74 Out of stock	Chute	£71.29 £59.41
74	HV596 91 96-01 Out of stock	Retainer Ring	£3.91 £3.26
76	HV532 41 55-98 Out of stock	Hose Coupling	£5.04 £4.20
152	HV532 43 51-11 In stock	Cable	£56.68 £47.23
