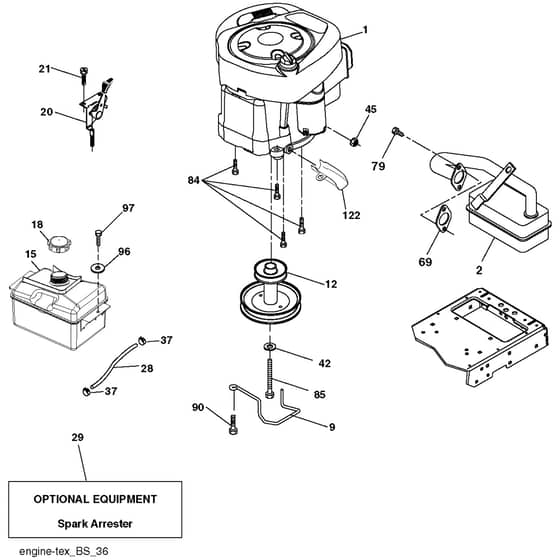

McCulloch M11577HRB - 96051001201 - 2010 - 11 - Engine Parts Diagram

Name: McCulloch M11577HRB - 96051001201 - 2010 - 11 - Engine Parts Diagram
SKU: m11577hrb_96051001201_2010_11_engine-group
Price: 0.64 GBP
Availability: InStock

Part No. m11577hrb_96051001201_2010_11_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M11577HRB - 96051001201 - 2010 - 11 - Engine Parts Diagram

Description

McCulloch M11577HRB - 96051001201 - 2010 - 11 - Engine Parts Diagram

	Part No.	Details
2	HV532 17 97-58 Available to backorder	Muffler	£111.48 £92.90
9	HV532 19 43-19 Available to backorder	Belt Guide	£20.50 £17.08
15	HV581 28 99-01 In stock	Fuel Tank	Was £59.52 £49.60 Special Price £40.97 £34.14
18	HV581 07 55-01 Available to backorder	Fuel Cap	£30.76 £25.63
21	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
28	HV532 13 70-40 Available to backorder	Hose	£15.25 £12.71
29	HV532 13 71-80 Available to backorder	Spark Arrester Kit	£46.73 £38.94
37	HV532 12 34-87 Available to backorder	Hose Clamp	£0.77 £0.64
42	HV810 04 07-00 Available to backorder	Washer	£3.12 £2.60
69	HV532 27 22-93 In stock	Gasket	£5.09 £4.24
79	HV596 13 42-01 Available to backorder	Screw	£3.73 £3.11
84	HV817 06 06-20 Available to backorder	Screw	£5.75 £4.79
85	HV532 17 39-37 Available to backorder	Bolt	£2.56 £2.13
90	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
96	HV819 09 14-16 Available to backorder	Washer	£3.07 £2.56
97	HV817 67 04-12 Available to backorder	Screw	£5.24 £4.37
122	HV532 42 19-22 Available to backorder	Extension Pipe	£7.18 £5.98
