McCulloch M11577 - 96041021401 - 2011-08 - Electrical Parts Diagram

Name: McCulloch M11577 - 96041021401 - 2011-08 - Electrical Parts Diagram
SKU: m11577_96041021401_2011_08_electrical-group
Price: 1.48 GBP
Availability: InStock

Part No. m11577_96041021401_2011_08_electrical-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M11577 - 96041021401 - 2011-08 - Electrical Parts Diagram

Description

McCulloch M11577 - 96041021401 - 2011-08 - Electrical Parts Diagram

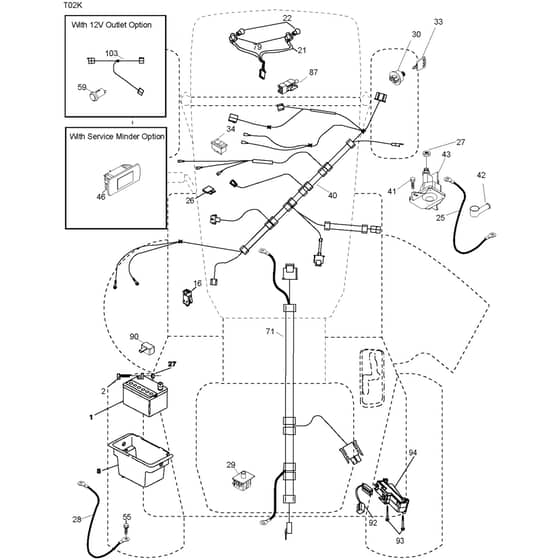

	Part No.	Details
1	HV547 85 37-01 Available to backorder	Battery	£115.92 £96.60
2	HV874 76 04-12 Available to backorder	Bolt	£2.00 £1.67
8	HV532 19 32-28 Available to backorder	Box	£56.40 £47.00
16	HV532 17 61-38 Available to backorder	Micro Switch	£15.28 £12.73
21	HV532 40 02-52 Available to backorder	Harness	£27.55 £22.96
22	HV532 00 41-52 Available to backorder	Bulb	£4.28 £3.57
25	HV532 41 28-94 Available to backorder	Cable.Starter.6Ga.Bl/RSubs/2	£16.66 £13.88
26	HV532 17 51-58 Available to backorder	Fuse	£5.63 £4.69
28	HV532 19 88-85 Available to backorder	Cable	£20.50 £17.08
29	HV532 19 27-49 Available to backorder	Switch.Seat.Dp W/Ramps	£19.20 £16.00
30	HV532 19 33-50 Available to backorder	Ignition Module	£25.09 £20.91
33	HV532 41 19-35 Available to backorder	Key	£10.37 £8.64
34	HV532 11 07-12 Available to backorder	Switch	£16.98 £14.15
40	HV532 40 10-98 Available to backorder	Cable	£77.16 £64.30
41	HV539 99 00-71 Available to backorder	Screw	£1.78 £1.48
43	HV582 04 28-02 In stock	Solenoid	£18.58 £15.48
87	HV532 19 78-02 Available to backorder	Switch	£17.59 £14.66
90	HV532 43 53-95 Available to backorder	Terminal Cover	£6.29 £5.24
94	HV532 19 18-34 Available to backorder	Module.Reverse.Ros	£22.63 £18.86
