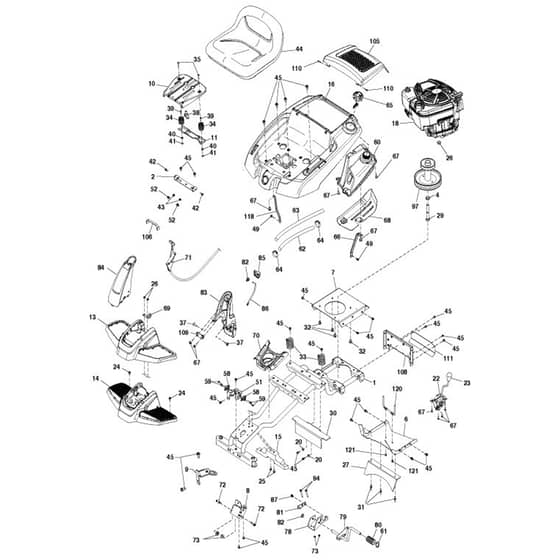

McCulloch M110-77X - 2017-06 - Chassis & Enclosures Parts Diagram

Description

McCulloch M110-77X - 2017-06 - Chassis & Enclosures Parts Diagram

	Part No.	Details
1	HV583 50 84-01 Available to backorder	Chassis	£306.07 £255.06
4	HV596 23 89-01 Available to backorder	Washer	£3.12 £2.60
6	HV584 82 32-02 Available to backorder	Pan	£61.92 £51.60
8	HV587 58 18-01 Available to backorder	Bracket	£12.82 £10.68
10	HV532 44 18-05 Available to backorder	Seat	£97.44 £81.20
13	HV532 44 20-71 Available to backorder	Cover	£28.20 £23.50
14	HV532 44 20-75 Available to backorder	Support	£95.04 £79.20
15	HV532 44 20-69 Available to backorder	Support	£28.12 £23.43
16	HV584 97 69-13 Available to backorder	Panel	£199.92 £166.60
20	HV734 11 63-01 In stock	Washer	£2.63 £2.19
22	HV586 04 19-01 Available to backorder	Clutch	£73.92 £61.60
23	HV532 14 98-46 Available to backorder	Boule De Levier 149846	£20.50 £17.08
24	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
27	HV584 82 34-01 Available to backorder	Guard	£46.84 £39.03
29	HV501 60 69-01 Available to backorder	Bolt	£3.22 £2.68
30	HV585 92 69-01 Available to backorder	Guard	£12.71 £10.59
31	HV582 95 80-01 Available to backorder	Rivet	£2.94 £2.45
32	HV817 12 06-16 Available to backorder	Screw	£5.24 £4.37
33	HV587 61 33-01 Available to backorder	Spring	£20.50 £17.08
35	HV872 05 04-12 Available to backorder	Bolt	£3.59 £2.99
38	HV532 19 93-72 Available to backorder	Knob	£9.62 £8.02
39	HV532 13 43-00 Available to backorder	Spacer	£4.50 £3.75
40	HV532 12 12-48 Available to backorder	Bushing	£6.01 £5.01
41	HV586 66 89-01 Available to backorder	Locknut	£2.94 £2.45
42	HV587 90 78-01 Available to backorder	Bolt	£2.56 £2.13
43	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
44	HV581 46 20-01 Available to backorder	Seat	£125.16 £104.30
45	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
49	HV817 06 05-16 Available to backorder	Screw	£5.02 £4.18
51	HV585 92 03-02 Available to backorder	Bracket	£26.28 £21.90
52	HV532 14 50-06 Available to backorder	Clip	£0.90 £0.75
58	HV588 45 25-01 Available to backorder	Bushing	£12.18 £10.15
59	HV532 13 77-29 In stock	Screw	£2.22 £1.85
60	HV532 43 78-01 Available to backorder	Fuel Tank Assy	£61.57 £51.31
61	HV587 01 57-02 Available to backorder	Nut	£2.30 £1.92
63	HV532 44 85-62 Available to backorder	Purge Line Carb	£9.36 £7.80
64	HV532 12 34-87 Available to backorder	Hose Clamp	£0.77 £0.64
65	HV581 17 61-01 Available to backorder	Cap	£30.76 £25.63
66	HV583 50 97-01 Available to backorder	Support	£12.82 £10.68
68	HV532 43 98-51 Available to backorder	Heat Shield	£40.16 £33.47
69	HV532 43 74-27 Available to backorder	Bracket	£6.46 £5.38
70	HV532 44 20-68 Available to backorder	Console	£9.37 £7.81
71	HV532 43 78-57 Available to backorder	Throttle	£13.18 £10.98
72	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
73	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
78	HV532 43 70-56 Available to backorder	Bracket	£23.36 £19.47
79	HV532 43 70-57 Available to backorder	Brake	£21.64 £18.03
80	HV532 42 96-93 Available to backorder	Cover	£8.81 £7.34
81	HV583 51 80-01 Available to backorder	Link	£9.62 £8.02
82	HV532 16 94-84 Available to backorder	Pin	£4.12 £3.43
83	HV587 68 64-03 Available to backorder	Column	£22.44 £18.70
84	HV587 38 86-07 Available to backorder	Column	£17.94 £14.95
85	HV583 52 17-01 Available to backorder	Brake	£8.98 £7.48
87	HV532 16 54-92 Available to backorder	Bolt	£5.02 £4.18
97	HV581 43 80-01 Available to backorder	Pulley	£115.08 £95.90
105	HV532 44 79-92 Available to backorder	Cover	£29.47 £24.56
106	HV532 43 68-34 Available to backorder	Strap	£2.14 £1.78
108	HV583 51 71-01 Available to backorder	Cover	£83.04 £69.20
109	HV532 43 90-08 Available to backorder	Retainer	£1.94 £1.62
110	HV583 75 98-01 Available to backorder	Hinge Pin	£3.84 £3.20
111	HV532 43 81-71 Available to backorder	Shield	£10.46 £8.72
118	HV532 44 50-02 Available to backorder	Panel	£32.70 £27.25
121	HV817 60 04-06 Available to backorder	Screw	£1.78 £1.48
