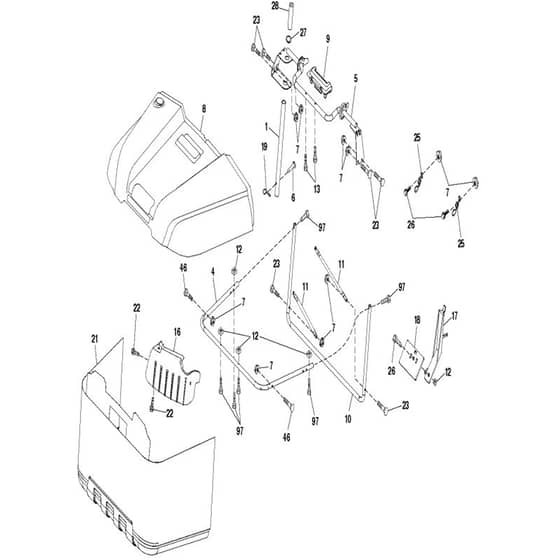

McCulloch M110-77TC - 96051016500 - 2017-06 - Bagger Parts Diagram

Description

McCulloch M110-77TC - 96051016500 - 2017-06 - Bagger Parts Diagram

	Part No.	Details
1	HV532 42 86-10 Available to backorder	Tube	£32.45 £27.04
4	HV579 78 54-01 Available to backorder	Handle Assy	£80.52 £67.10
6	HV532 12 68-75 Available to backorder	Rivet	£2.48 £2.07
7	HV586 66 89-01 Available to backorder	Nut	£2.94 £2.45
8	HV532 42 59-54 Available to backorder	Cover	£118.32 £98.60
10	HV532 41 71-90 Available to backorder	Frame	£72.12 £60.10
11	HV532 41 71-88 Available to backorder	Support	£35.04 £29.20
13	HV532 42 17-80 Available to backorder	Screw	£2.52 £2.10
16	HV532 42 15-66 Available to backorder	Deflector	£24.36 £20.30
17	HV532 42 17-49 Available to backorder	Lever	£12.40 £10.33
19	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
21	HV581 33 69-01 Available to backorder	Bag	£128.88 £107.40
22	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
23	HV872 04 04-10 Available to backorder	Bolt	£3.32 £2.77
28	HV532 16 57-87 Available to backorder	Handle	£10.43 £8.69
46	HV501 40 66-01 Available to backorder	Screw	£1.56 £1.30
