McCulloch M110-77T - 96041040500 - 2017-07 - Wheels and Tyres Parts Diagram

Name: McCulloch M110-77T - 96041040500 - 2017-07 - Wheels and Tyres Parts Diagram
SKU: m110_77t_96041040500_2017_07_wheels_and_tyres-group
Price: 3.11 GBP
Availability: InStock

Part No. m110_77t_96041040500_2017_07_wheels_and_tyres-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

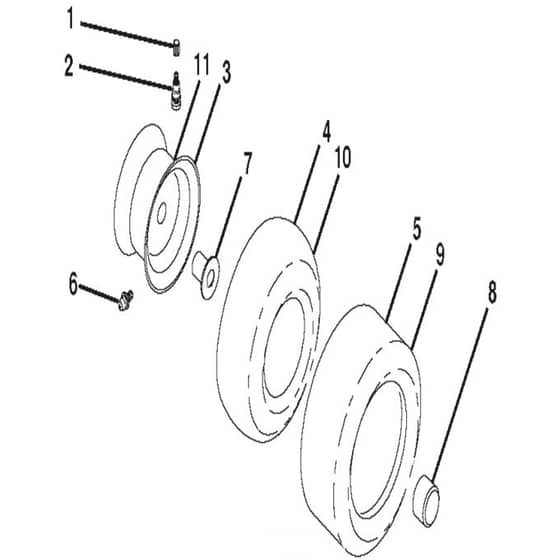

McCulloch M110-77T - 96041040500 - 2017-07 - Wheels and Tyres Parts Diagram

Description

McCulloch M110-77T - 96041040500 - 2017-07 - Wheels and Tyres Parts Diagram

	Part No.	Details
1	HV581 57 83-01 Available to backorder	Decal	£3.73 £3.11
2	HV532 06 51-39 Available to backorder	Nipple	£5.23 £4.36
3	HV532 42 53-61 Available to backorder	Rim Front 6" x 3.25"	£101.76 £84.80
5	HV532 12 34-10 Available to backorder	Tyre Front 13" x 5.0"-6"	£54.67 £45.56
6	HV532 00 02-78 Available to backorder	Nipple (Front Wheel Only)	£7.70 £6.42
7	HV532 00 90-40 In stock	Bearing (Front Wheel Only)	£18.38 £15.32
8	HV532 19 32-68 Available to backorder	Hub Cap	£5.78 £4.82
9	HV532 10 62-30 Available to backorder	Tyre Rear 16" x 6.5"-8"	£68.40 £57.00
