McCulloch M105-97F - 967206801 - 2013-01 - Frame Parts Diagram

Name: McCulloch M105-97F - 967206801 - 2013-01 - Frame Parts Diagram
SKU: m105_97f_967206801_2013_01_frame-group
Price: 0.65 GBP
Availability: InStock

Part No. m105_97f_967206801_2013_01_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M105-97F - 967206801 - 2013-01 - Frame Parts Diagram

Description

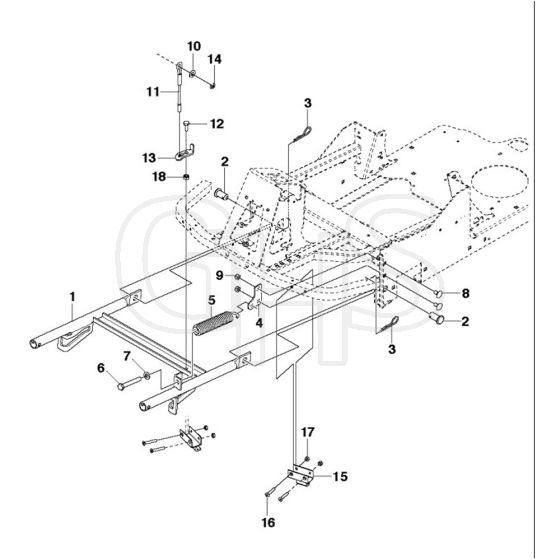

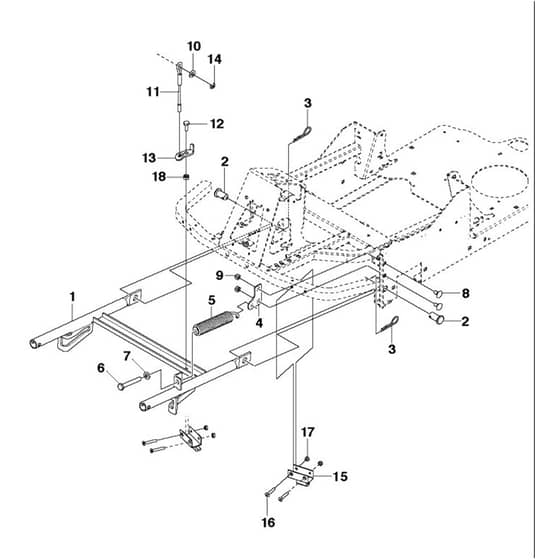

McCulloch M105-97F - 967206801 - 2013-01 - Frame Parts Diagram

	Part No.	Details
2	HV721 86 17-01 Available to backorder	Clevis Pin	£4.12 £3.43
3	HV721 68 02-51 Available to backorder	Spring Cotter	£0.91 £0.76
5	HV505 41 87-01 Available to backorder	Spring	£36.49 £30.41
6	HV725 25 09-71 Available to backorder	Screw Ehhm	£8.98 £7.48
8	HV727 64 49-51 Available to backorder	Screw Rsqm	£3.97 £3.31
10	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
12	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.50 £3.75
14	HV735 31 12-20 Available to backorder	E-Clip	£0.78 £0.65
16	HV725 63 78-51 Available to backorder	Screw Ihcsfm	£2.24 £1.87
17	HV732 21 16-01 Available to backorder	Lock Nut	£1.79 £1.49
18	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
