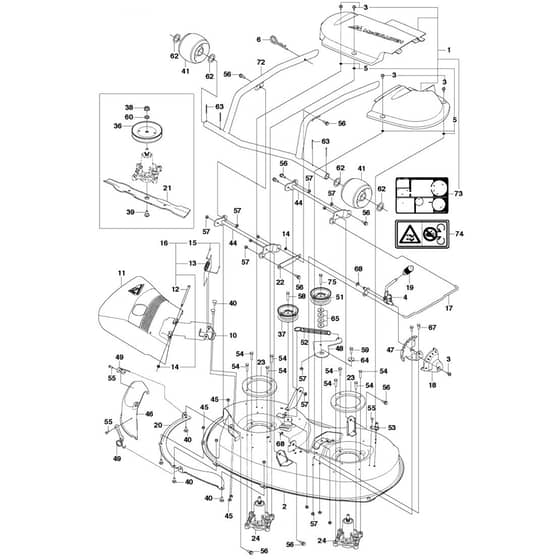

McCulloch M105-97F - 967206801 - 2013-01 - 97cm Cutting Deck Parts Diagram

Name: McCulloch M105-97F - 967206801 - 2013-01 - 97cm Cutting Deck Parts Diagram
SKU: m105_97f_967206801_2013_01_97cm_cutting_deck-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M105-97F - 967206801 - 2013-01 - 97cm Cutting Deck Parts Diagram

Description

McCulloch M105-97F - 967206801 - 2013-01 - 97cm Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HV544 40 05-01 In stock	Screw	£2.64 £2.20
5	HV735 58 35-01 Out of stock	Washer	£2.46 £2.05
11	HV532 19 25-72 Out of stock	Shield	£54.40 £45.33
12	HV595 29 70-01 Out of stock	Shaft	£11.92 £9.93
13	HV532 19 70-26 Out of stock	Torsion Spring	£9.29 £7.74
14	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
15	HV532 10 53-04 Out of stock	Hub Cap	£2.87 £2.39
24	HV532 19 28-70 Out of stock	Spindle	£124.66 £103.88
36	HV532 19 97-91 Out of stock	Pulley	£37.16 £30.97
37	HV532 17 79-68 Out of stock	Pulley	£49.49 £41.24
38	HV596 13 48-01 In stock	Nut	£1.19 £0.99
39	HV532 19 30-03 In stock	Screw	£12.74 £10.62
40	HV872 11 05-05 Out of stock	Bolt	£2.72 £2.27
41	HV522 73 59-01 Out of stock	Wheel	£41.66 £34.72
44	HV522 45 09-02 Out of stock	Cross Bar	£35.32 £29.43
45	HV596 04 05-01 Out of stock	Lock Nut	£2.02 £1.68
49	HV597 00 06-01 Out of stock	Latch	£8.92 £7.43
51	HV539 91 90-78 Out of stock	Pulley	£36.36 £30.30
52	HV584 29 88-01 Out of stock	Spring	£14.05 £11.71
53	HV532 41 55-98 Out of stock	Hose Coupling	£5.04 £4.20
54	HV725 24 59-61 Out of stock	Screw Ehhft	£5.99 £4.99
55	HV725 23 68-61 Out of stock	Screw Ehhft	£2.42 £2.02
56	HV506 59 74-01 Out of stock	Screw Ehhfm	£5.72 £4.77
57	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
58	HV725 24 59-51 Out of stock	Screw Ehhm	£5.99 £4.99
59	HV725 24 53-71 Out of stock	Screw Ehhm	£4.20 £3.50
60	HV532 18 76-90 In stock	Washer	£2.96 £2.47
62	HV574 26 45-01 Out of stock	Washer	£5.12 £4.27
63	HV721 61 87-01 Out of stock	Split Pin	£0.66 £0.55
67	HV725 24 51-71 Out of stock	Screw Ehhm	£4.20 £3.50
68	HV735 31 15-20 Out of stock	E-Clip	£0.68 £0.57
74	HV574 51 00-01 Out of stock	Decal	£2.90 £2.42
75	HV725 24 61-51 Out of stock	Screw Ehhm	£6.10 £5.08
