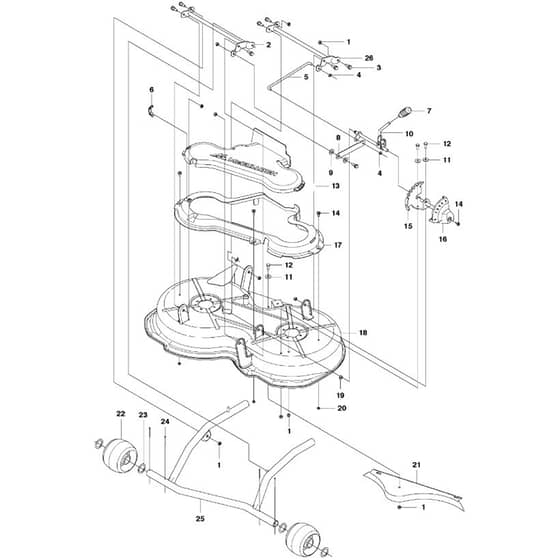

McCulloch M105-85F - 967186801 - 2013-01 - 85cm Cutting Deck (2) Parts Diagram

Name: McCulloch M105-85F - 967186801 - 2013-01 - 85cm Cutting Deck (2) Parts Diagram
SKU: m105_85f_967186801_2013_01_85cm_cutting_deck_2_-group
Price: 0.64 GBP
Availability: InStock

Part No. m105_85f_967186801_2013_01_85cm_cutting_deck_2_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M105-85F - 967186801 - 2013-01 - 85cm Cutting Deck (2) Parts Diagram

Description

McCulloch M105-85F - 967186801 - 2013-01 - 85cm Cutting Deck (2) Parts Diagram

	Part No.	Details
1	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
2	HV522 45 09-02 Available to backorder	Cross Bar	£35.58 £29.65
3	HV506 59 74-01 In stock	Screw Ehhfm	£6.12 £5.10
4	HV735 58 52-00 Available to backorder	Washer	£2.30 £1.92
6	HV576 37 38-01 Available to backorder	Snap Locking	£12.20 £10.17
9	HV734 11 65-41 Available to backorder	Washer	£3.59 £2.99
11	HV734 11 64-41 In stock	Washer	£3.25 £2.71
12	HV725 24 53-71 Available to backorder	Screw Ehhm	£4.46 £3.72
13	HV581 06 15-01 Available to backorder	Cover	£43.57 £36.31
14	HV544 40 05-01 In stock	Screw	£2.75 £2.29
19	HV735 31 15-20 Available to backorder	E-Clip	£0.77 £0.64
20	HV732 21 16-01 Available to backorder	Lock Nut	£1.79 £1.49
21	HV574 04 17-02 Available to backorder	Plug	£79.08 £65.90
22	HV522 73 59-01 Available to backorder	Wheel	£44.26 £36.88
23	HV574 26 45-01 Available to backorder	Washer	£5.40 £4.50
24	HV721 61 87-01 Available to backorder	Split Pin	£0.77 £0.64
25	HV522 45 19-02 Available to backorder	Equipment Frame	£74.64 £62.20
