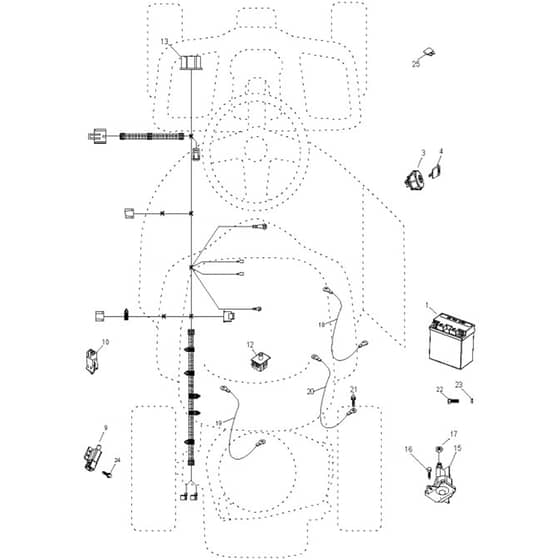

McCulloch M105-77XC - 96021001900 - 2012-01 - Electrical Parts Diagram

Description

McCulloch M105-77XC - 96021001900 - 2012-01 - Electrical Parts Diagram

	Part No.	Details
1	HV532 43 65-51 Available to backorder	Battery	£60.85 £50.71
3	HV532 19 33-50 Available to backorder	Ignition Module	£25.09 £20.91
4	HV532 41 19-33 Available to backorder	Key	£10.37 £8.64
9	HV539 10 10-80 Available to backorder	Switch	£18.24 £15.20
10	HV532 17 61-38 Available to backorder	Micro Switch	£15.28 £12.73
12	HV532 19 27-49 Available to backorder	Switch.Seat.Dp W/Ramps	£19.20 £16.00
15	HV582 04 28-02 In stock	Solenoid	£18.58 £15.48
16	HV539 99 00-71 Available to backorder	Screw	£1.78 £1.48
18	HV532 41 66-94 Available to backorder	Cable	£21.42 £17.85
19	HV532 42 12-99 Available to backorder	Cable	£23.35 £19.46
22	HV532 44 21-48 Available to backorder	Screw	£1.28 £1.07
23	HV532 43 81-22 Available to backorder	Nut	£1.61 £1.34
25	HV532 43 48-99 Available to backorder	Fuse	£0.74 £0.62
