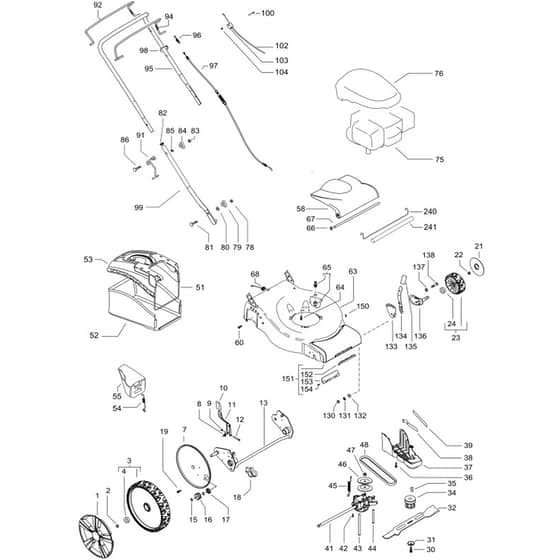

McCulloch M 46-550 CMDW - 96669080100 - 2010-09 - Product Complete Parts Diagram

Name: McCulloch M 46-550 CMDW - 96669080100 - 2010-09 - Product Complete Parts Diagram
SKU: m_46_550_cmdw_96669080100_2010_09_product_complete-group
Price: 0.53 GBP
Availability: InStock

Part No. m_46_550_cmdw_96669080100_2010_09_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M 46-550 CMDW - 96669080100 - 2010-09 - Product Complete Parts Diagram

Description

McCulloch M 46-550 CMDW - 96669080100 - 96669080101 - 96669080102 - 2010-09 - Product Complete Parts Diagram

	Part No.	Details
1	HV574 39 66-01 Available to backorder	Hub Cap	£17.32 £14.43
2	HV504 85 78-01 Available to backorder	Nut	£3.37 £2.81
3	HV574 45 12-02 Available to backorder	Wheel Assy	£31.44 £26.20
7	HV504 53 99-01 Available to backorder	Hub Cap	£13.46 £11.22
8	HV583 95 13-02 Available to backorder	Spring	£4.36 £3.63
9	HV531 20 84-92 Available to backorder	Nut	£1.56 £1.30
10	HV574 61 05-01 Available to backorder	Knob	£7.37 £6.14
11	HV581 17 86-01 Available to backorder	Lifting Lever Assy	£11.46 £9.55
12	HV538 23 58-07 Available to backorder	Screw	£2.83 £2.36
16	HV544 34 23-01 Available to backorder	Pinion	£10.57 £8.81
17	HV531 20 87-78 Available to backorder	Bearing	£6.58 £5.48
18	HV531 20 59-44 Available to backorder	Support	£8.34 £6.95
19	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
21	HV574 39 64-01 Available to backorder	Hub Cap	£10.26 £8.55
23	HV574 45 09-02 Available to backorder	Wheel Assy	£24.70 £20.58
24	HV538 00 53-62 Available to backorder	Ball Bearing	£6.31 £5.26
30	HV531 20 80-08 Available to backorder	Screw	£7.06 £5.88
32	HV581 18 89-10 Available to backorder	Mower Blade	£33.65 £28.04
34	HV581 84 30-01 In stock	Adapter	£17.14 £14.28
35	HV505 29 09-01 Available to backorder	Key	£2.65 £2.21
37	HV544 46 23-02 Available to backorder	Belt Guard	£29.36 £24.47
39	HV544 46 25-01 Available to backorder	Wear Protection	£4.86 £4.05
41	HV504 54 14-02 Available to backorder	Gearbox	£105.36 £87.80
42	HV531 20 66-77 Available to backorder	Screw	£1.79 £1.49
43	HV504 10 31-01 Available to backorder	Belt Guide	£10.26 £8.55
44	HV544 93 43-01 Available to backorder	Belt Guide	£8.34 £6.95
45	HV544 93 47-01 Available to backorder	Spring	£4.31 £3.59
46	HV544 44 44-01 Available to backorder	Pulley	£19.97 £16.64
48	HV504 03 48-01 Available to backorder	Belt	£22.61 £18.84
51	HV574 86 94-01 Available to backorder	Frame	£16.66 £13.88
52	HV574 86 96-01 Available to backorder	Grassbag	£46.14 £38.45
53	HV574 61 03-01 Available to backorder	Grassbag	£42.83 £35.69
54	HV522 85 77-01 Available to backorder	Spring	£5.24 £4.37
55	HV531 21 06-17 Available to backorder	Mulch Plug	£51.25 £42.71
58	HV574 61 02-01 Available to backorder	Hatch	£38.83 £32.36
64	HV532 15 04-06 Available to backorder	Screw	£4.97 £4.14
65	HV531 20 58-48 Available to backorder	Connector	£9.62 £8.02
67	HV531 20 50-60 Available to backorder	Shaft	£19.24 £16.03
68	HV531 20 59-99 Available to backorder	Spring	£4.22 £3.52
78	HV531 20 79-82 Available to backorder	Nut	£2.28 £1.90
79	HV531 20 49-23 Available to backorder	Wing Nut	£4.12 £3.43
80	HV531 20 49-22 Available to backorder	Washer	£2.56 £2.13
81	HV531 20 49-21 Available to backorder	Screw	£5.02 £4.18
82	HV531 20 89-50 Available to backorder	Plug	£0.85 £0.71
83	HV531 20 70-89 Available to backorder	Screw	£7.06 £5.88
91	HV504 70 86-01 Available to backorder	Hook	£14.74 £12.28
92	HV504 70 84-01 Available to backorder	Handle	£30.76 £25.63
94	HV504 70 83-01 Available to backorder	Handle	£28.97 £24.14
95	HV504 70 80-01 Available to backorder	Handle	£44.22 £36.85
97	HV544 90 80-02 Available to backorder	Cable	£28.72 £23.93
98	HV531 20 55-81 Available to backorder	Clip	£0.64 £0.53
99	HV531 20 60-71 Available to backorder	Handle	£30.14 £25.12
100	HV531 20 63-46 Available to backorder	Screw	£2.56 £2.13
102	HV582 19 21-02 Available to backorder	Brake Wire	£26.51 £22.09
103	HV531 20 80-43 In stock	Bracket	£1.09 £0.91
104	HV531 20 52-13 Available to backorder	Nut	£1.79 £1.49
130	HV531 20 79-78 Available to backorder	Nut	£3.59 £2.99
131	HV531 20 89-74 Available to backorder	Washer	£2.30 £1.92
132	HV531 20 79-89 Available to backorder	Washer	£4.26 £3.55
133	HV574 41 32-09 Available to backorder	Kit	£4.94 £4.12
137	HV531 20 60-20 Available to backorder	Washer	£2.11 £1.76
138	HV531 20 49-12 Available to backorder	Screw	£7.06 £5.88
151	HV575 56 21-02 Available to backorder	Front Cover Assy	£19.48 £16.23
152	HV574 37 52-01 Available to backorder	Cover	£6.40 £5.33
153	HV574 72 17-01 Available to backorder	Attachment Plate	£2.99 £2.49
154	HV575 95 57-01 Available to backorder	Screw Itxpant	£1.56 £1.30
240	HV578 32 30-01 Available to backorder	Wire	£5.40 £4.50
241	HV578 32 18-01 Available to backorder	Tube	£12.71 £10.59
