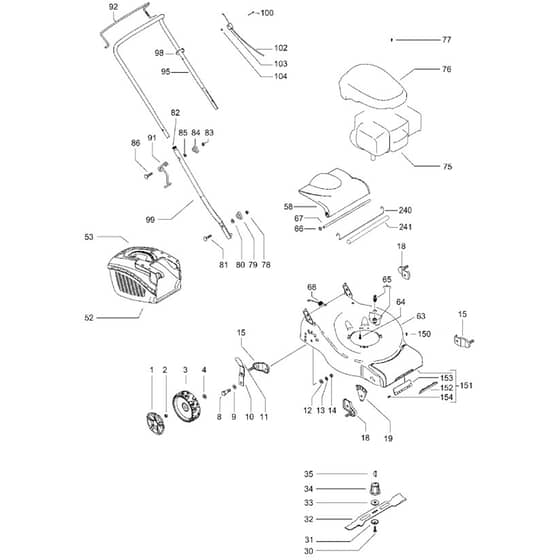

McCulloch M 46-450 C - 96664470100 - 2010-09 - Product Complete Parts Diagram

Name: McCulloch M 46-450 C - 96664470100 - 2010-09 - Product Complete Parts Diagram
SKU: m_46_450_c_96664470100_2010_09_product_complete-group
Price: 0.53 GBP
Availability: InStock

Part No. m_46_450_c_96664470100_2010_09_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M 46-450 C - 96664470100 - 2010-09 - Product Complete Parts Diagram

Description

McCulloch M 46-450 C - 96664470100 - 96664470101 - 96664470102 - 2010-09 - Product Complete Parts Diagram

	Part No.	Details
2	HV504 85 78-01 Available to backorder	Nut	£3.37 £2.81
3	HV574 41 49-02 Available to backorder	Wheel	£19.09 £15.91
5	HV531 20 66-43 Available to backorder	Washer	£2.56 £2.13
8	HV531 20 49-12 Available to backorder	Screw	£7.06 £5.88
11	HV574 61 05-01 Available to backorder	Knob	£7.37 £6.14
12	HV531 20 79-89 Available to backorder	Washer	£4.26 £3.55
13	HV531 20 89-74 Available to backorder	Washer	£2.30 £1.92
14	HV531 20 79-78 Available to backorder	Nut	£3.59 £2.99
15	HV504 85 16-01 Available to backorder	Support Wheel	£14.27 £11.89
18	HV504 85 15-01 Available to backorder	Support Wheel	£14.93 £12.44
19	HV531 21 29-87 Available to backorder	Tool	£5.18 £4.32
30	HV531 20 80-08 Available to backorder	Screw	£7.06 £5.88
32	HV581 18 89-10 Available to backorder	Mower Blade	£33.65 £28.04
33	HV525 42 31-01 Available to backorder	Washer	£3.56 £2.97
34	HV531 20 72-42 Available to backorder	Adapter	£17.96 £14.97
35	HV505 29 09-01 Available to backorder	Key	£2.65 £2.21
52	HV574 61 04-01 Available to backorder	Grassbag	£49.31 £41.09
53	HV574 61 03-01 Available to backorder	Grassbag	£42.83 £35.69
58	HV574 61 02-01 Available to backorder	Hatch	£38.83 £32.36
63	HV577 38 85-02 Available to backorder	Chassis	£210.48 £175.40
64	HV532 15 04-06 Available to backorder	Screw	£4.97 £4.14
65	HV531 20 58-48 Available to backorder	Connector	£9.62 £8.02
66	HV584 81 69-03 Available to backorder	Retainer Ring	£0.77 £0.64
67	HV531 20 50-60 Available to backorder	Shaft	£19.24 £16.03
68	HV531 20 59-99 Available to backorder	Spring	£4.22 £3.52
77	HV531 21 27-10 Available to backorder	Screw	£2.56 £2.13
78	HV531 20 79-82 Available to backorder	Nut	£2.28 £1.90
79	HV531 20 49-23 Available to backorder	Wing Nut	£4.12 £3.43
80	HV531 20 49-22 Available to backorder	Washer	£2.56 £2.13
81	HV531 20 49-21 Available to backorder	Screw	£5.02 £4.18
82	HV531 20 89-50 Available to backorder	Plug	£0.85 £0.71
86	HV531 20 70-89 Available to backorder	Screw	£7.06 £5.88
91	HV504 70 86-01 Available to backorder	Hook	£14.74 £12.28
92	HV504 70 83-04 Available to backorder	Handle	£30.76 £25.63
95	HV504 70 80-01 Available to backorder	Handle	£44.22 £36.85
98	HV531 20 55-81 Available to backorder	Clip	£0.64 £0.53
99	HV531 20 60-71 Available to backorder	Handle	£30.14 £25.12
100	HV531 20 63-46 Available to backorder	Screw	£2.56 £2.13
102	HV582 19 21-02 Available to backorder	Brake Wire	£26.51 £22.09
103	HV531 21 26-89 Available to backorder	Casing	£1.28 £1.07
104	HV531 20 52-13 Available to backorder	Nut	£1.79 £1.49
151	HV575 56 21-02 Available to backorder	Front Cover Assy	£19.48 £16.23
152	HV574 37 52-01 Available to backorder	Cover	£6.40 £5.33
153	HV574 72 17-01 Available to backorder	Attachment Plate	£2.99 £2.49
154	HV575 95 57-01 Available to backorder	Screw Itxpant	£1.56 £1.30
240	HV578 32 30-01 Available to backorder	Wire	£5.40 £4.50
241	HV578 32 18-01 Available to backorder	Tube	£12.71 £10.59
