McCulloch M 46-450 C - 96652400100 - 2010-02 - Product Complete Parts Diagram

Name: McCulloch M 46-450 C - 96652400100 - 2010-02 - Product Complete Parts Diagram
SKU: m_46_450_c_96652400100_2010_02_product_complete-group
Price: 0.53 GBP
Availability: InStock

Part No. m_46_450_c_96652400100_2010_02_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

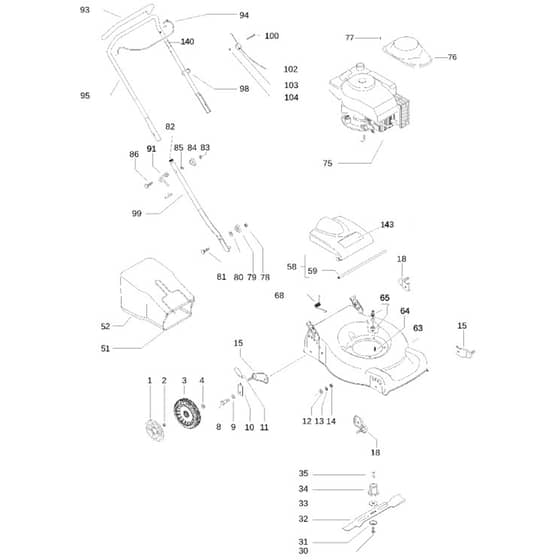

McCulloch M 46-450 C - 96652400100 - 2010-02 - Product Complete Parts Diagram

Description

McCulloch M 46-450 C - 96652400100 - 2010-02 - Product Complete Parts Diagram

	Part No.	Details
2	HV504 85 78-01 Available to backorder	Nut	£3.37 £2.81
3	HV505 43 58-01 Available to backorder	Wheel Assy	£23.21 £19.34
8	HV531 20 49-12 Available to backorder	Screw	£7.06 £5.88
9	HV531 20 66-43 Available to backorder	Washer	£2.56 £2.13
11	HV574 61 05-01 Available to backorder	Knob	£7.37 £6.14
12	HV531 20 79-89 Available to backorder	Washer	£4.26 £3.55
13	HV531 20 89-74 Available to backorder	Washer	£2.30 £1.92
14	HV531 20 79-78 Available to backorder	Nut	£3.59 £2.99
15	HV504 85 16-01 Available to backorder	Support Wheel	£14.27 £11.89
18	HV504 85 15-01 Available to backorder	Support Wheel	£14.93 £12.44
30	HV531 20 80-08 Available to backorder	Screw	£7.06 £5.88
32	HV581 18 89-10 Available to backorder	Mower Blade	£33.65 £28.04
33	HV525 42 31-01 Available to backorder	Washer	£3.56 £2.97
34	HV531 20 72-42 Available to backorder	Adapter	£17.96 £14.97
35	HV505 29 09-01 Available to backorder	Key	£2.65 £2.21
52	HV531 21 34-67 Available to backorder	Frame	£53.20 £44.33
53	HV531 21 14-37 Available to backorder	Sack	£60.34 £50.28
58	HV531 21 26-46 Available to backorder	Paratoia Mp400/Mp546 Flymo 04	£48.07 £40.06
59	HV531 20 50-60 Available to backorder	Shaft	£19.24 £16.03
63	HV531 21 35-60 Available to backorder	Deck	£164.40 £137.00
64	HV532 15 04-06 Available to backorder	Screw	£4.97 £4.14
65	HV531 20 58-48 Available to backorder	Connector	£9.62 £8.02
68	HV531 20 59-99 Available to backorder	Spring	£4.22 £3.52
77	HV531 21 27-10 Available to backorder	Screw	£2.56 £2.13
78	HV531 20 79-82 Available to backorder	Nut	£2.28 £1.90
79	HV531 20 49-23 Available to backorder	Wing Nut	£4.12 £3.43
80	HV531 20 49-22 Available to backorder	Washer	£2.56 £2.13
81	HV531 20 49-21 Available to backorder	Screw	£5.02 £4.18
82	HV531 20 89-50 Available to backorder	Plug	£0.85 £0.71
86	HV531 20 70-89 Available to backorder	Screw	£7.06 £5.88
88	HV531 20 84-91 Available to backorder	Nut	£2.05 £1.71
89	HV514 02 66-00 In stock	Washer	£2.50 £2.08
90	HV531 20 71-65 Available to backorder	Nut	£2.05 £1.71
91	HV504 70 86-01 Available to backorder	Hook	£14.74 £12.28
93	HV531 20 59-89 Available to backorder	Sheating	£7.79 £6.49
94	HV504 70 83-04 Available to backorder	Handle	£30.76 £25.63
95	HV504 70 80-01 Available to backorder	Handle	£44.22 £36.85
98	HV531 20 55-81 Available to backorder	Clip	£0.64 £0.53
99	HV531 20 60-71 Available to backorder	Handle	£30.14 £25.12
100	HV531 20 63-46 Available to backorder	Screw	£2.56 £2.13
102	HV582 19 21-02 Available to backorder	Brake Wire	£26.51 £22.09
103	HV531 20 80-43 In stock	Bracket	£1.09 £0.91
104	HV531 20 52-13 Available to backorder	Nut	£1.79 £1.49
