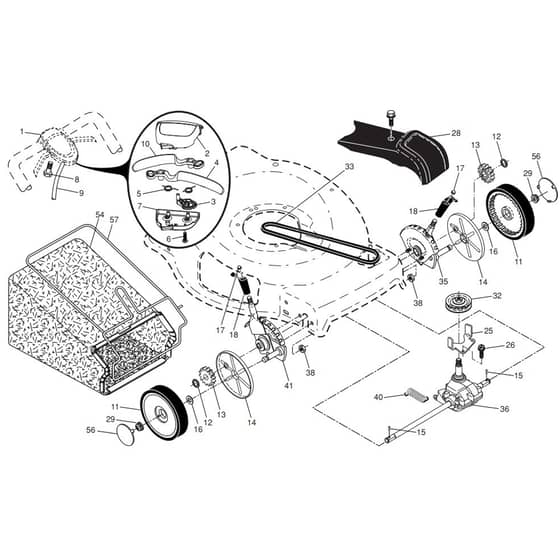

McCulloch EDITION XXL-R - 96141023200 - 2010-03 - Drive Parts Diagram

Description

McCulloch EDITION XXL-R - 96141023200 - 2010-03 - Drive Parts Diagram

	Part No.	Details
6	HV532 18 16-98 Available to backorder	Screw	£1.79 £1.49
8	HV532 17 88-48 Available to backorder	Screw	£1.18 £0.98
10	HV532 43 29-77 Available to backorder	Lever	£16.66 £13.88
12	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
13	HV532 40 38-49 Available to backorder	Pinion	£9.98 £8.32
14	HV581 84 04-01 Available to backorder	Dust Cover	£9.62 £8.02
15	HV532 40 48-45 Available to backorder	Pawl Drive	£6.52 £5.43
16	HV532 06 77-25 Available to backorder	Washer	£8.98 £7.48
17	HV583 34 30-01 Available to backorder	Nut	£1.56 £1.30
18	HV532 42 61-88 Available to backorder	Knob	£5.51 £4.59
25	HV532 43 17-11 Available to backorder	Bracket	£10.72 £8.93
26	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
28	HV583 48 37-01 Available to backorder	Drive Cover	£36.32 £30.27
29	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
32	HV532 44 32-62 Available to backorder	Pulley	£18.82 £15.68
33	HV532 19 68-53 Available to backorder	V-Belt	£24.41 £20.34
35	HV583 46 58-01 Available to backorder	Adjuster	£39.73 £33.11
36	HV589 60 06-01 Available to backorder	Gearbox Assy	£111.48 £92.90
38	HV532 19 17-30 Available to backorder	Nut	£2.30 £1.92
40	HV532 40 65-58 Available to backorder	Spring	£3.74 £3.12
54	HV532 43 15-55 Available to backorder	Grassbag	£53.75 £44.79
57	HV585 05 47-02 Available to backorder	Grassbag	£15.38 £12.82
