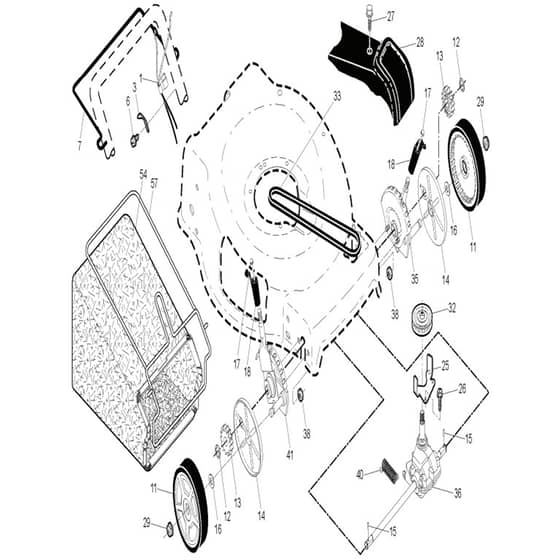

McCulloch EDITION 1XXL - 96141020000 - 2009-06 - Frame Parts Diagram

Name: McCulloch EDITION 1XXL - 96141020000 - 2009-06 - Frame Parts Diagram
SKU: edition_1xxl_96141020000_2009_06_frame-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch EDITION 1XXL - 96141020000 - 2009-06 - Frame Parts Diagram

Description

McCulloch EDITION 1XXL - 96141020000 - 2009-06 - Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HV532 16 14-78 Available to backorder	Stop	£7.76 £6.47
6	HV532 75 06-34 Available to backorder	Screw	£1.56 £1.30
11	HV581 00 92-02 Available to backorder	Wheel	£25.68 £21.40
12	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
13	HV532 40 38-49 Available to backorder	Pinion	£10.06 £8.38
14	HV581 84 04-01 Available to backorder	Dust Cover	£9.72 £8.10
15	HV532 40 48-45 Available to backorder	Pawl Drive	£6.30 £5.25
16	HV532 06 77-25 Available to backorder	Washer	£9.06 £7.55
17	HV583 34 30-01 Available to backorder	Nut	£1.56 £1.30
18	HV532 42 61-88 Available to backorder	Knob	£5.60 £4.67
25	HV532 43 17-11 Available to backorder	Belt Guide	£10.36 £8.63
26	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
27	HV532 17 52-62 Available to backorder	Screw	£2.34 £1.95
29	HV532 40 91-48 Available to backorder	Nut	£3.48 £2.90
32	HV532 44 32-62 Available to backorder	Pulley	£19.00 £15.83
33	HV532 19 68-53 Available to backorder	Belt	£24.20 £20.17
35	HV583 46 58-01 Available to backorder	Adjuster	£40.12 £33.43
36	HV589 60 06-01 Available to backorder	Gearbox	£116.44 £97.03
38	HV532 19 17-30 Available to backorder	Nut	£2.34 £1.95
40	HV532 40 65-58 Available to backorder	Spring	£3.62 £3.02
54	HV580 94 73-01 Available to backorder	Grassbag	£55.64 £46.37
57	HV585 05 47-02 Available to backorder	Grassbag	£15.23 £12.69
