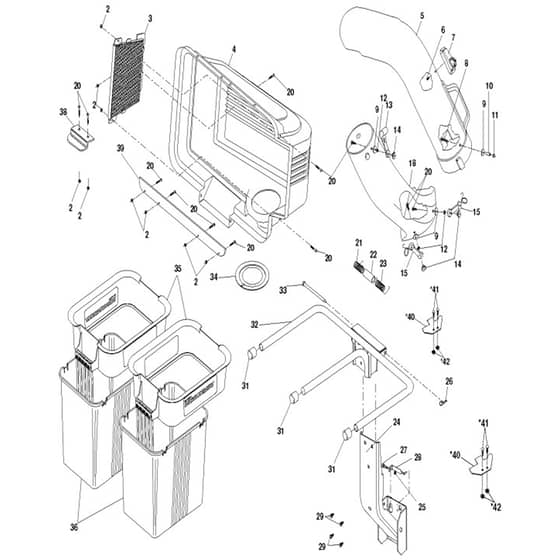

McCulloch CET 42 - 96071001001 - 2008-11 - Product Complete Parts Diagram

Name: McCulloch CET 42 - 96071001001 - 2008-11 - Product Complete Parts Diagram
SKU: cet_42_96071001001_2008_11_product_complete-group
Price: 1.01 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch CET 42 - 96071001001 - 2008-11 - Product Complete Parts Diagram

Description

McCulloch CET 42 - 96071001001 - 2008-11 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	HV586 66 89-01 Available to backorder	Nut If Your Tractor Is Equipped With The L Shaped Bracket These Parts Are Not Needed.	£2.98 £2.48
0	HV872 11 04-07 Available to backorder	Bolt If Your Tractor Is Equipped With The L Shaped Bracket These Parts Are Not Needed.	£2.84 £2.37
2	HV532 06 91-80 Available to backorder	Nut	£1.82 £1.52
3	HV532 12 75-33 Available to backorder	Grill	£25.22 £21.02
4	HV532 17 10-61 Available to backorder	Cover	£134.58 £112.15
5	HV532 12 68-40 Available to backorder	Chute	£89.94 £74.95
6	HV818 02 10-08 Available to backorder	Screw	£1.82 £1.52
7	HV532 13 09-33 Available to backorder	Indicator	£12.28 £10.23
8	HV874 98 10-24 Available to backorder	Screw	£3.62 £3.02
9	HV819 06 12-16 Available to backorder	Washer	£2.84 £2.37
10	HV532 00 72-06 Available to backorder	Spacer	£2.72 £2.27
11	HV539 10 80-86 Available to backorder	Acorn Nut	£2.46 £2.05
12	HV810 07 10-00 Available to backorder	Washer	£2.58 £2.15
13	HV532 10 98-08 Available to backorder	Latch	£8.82 £7.35
14	HV596 98 74-01 Available to backorder	Nut	£2.77 £2.31
15	HV597 00 06-01 Available to backorder	Latch	£9.46 £7.88
18	HV592 86 65-01 Available to backorder	Pipe	£97.63 £81.36
20	HV596 03 90-01 Available to backorder	Screw	£1.21 £1.01
21	HV532 13 27-96 Available to backorder	Spring	£9.96 £8.30
22	HV532 13 32-35 Available to backorder	Spacer	£9.72 £8.10
23	HV532 13 29-83 Available to backorder	Spring	£9.96 £8.30
24	HV532 18 09-23 Available to backorder	Post Asm Bagger	£134.58 £112.15
26	HV596 91 96-01 Available to backorder	Retainer Ring	£4.02 £3.35
28	HV532 17 97-45 Available to backorder	Bracket	£6.98 £5.82
29	HV532 17 01-65 Available to backorder	Bolt	£5.32 £4.43
31	HV532 17 40-83 Available to backorder	Plug	£9.06 £7.55
32	HV532 17 97-46 Available to backorder	Frame	£155.26 £129.38
33	HV532 19 27-86 Available to backorder	Hinge Pin	£31.72 £26.43
34	HV532 12 75-34 In stock	Gasket	£19.44 £16.20
35	HV532 18 32-86 Available to backorder	Container	£57.58 £47.98
36	HV532 12 95-86 Available to backorder	Bottom	£91.86 £76.55
38	HV532 13 08-95 Available to backorder	Latch	£9.72 £8.10
