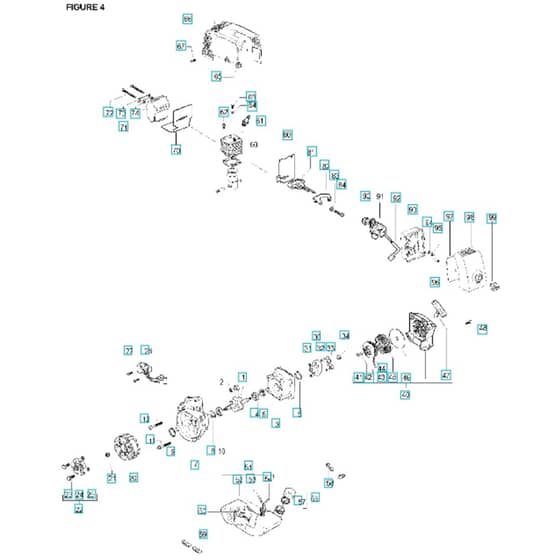

McCulloch CABRIO PLUS 467 B PREFIX 02 - 2007-01 - Engine (1) Parts Diagram

Name: McCulloch CABRIO PLUS 467 B PREFIX 02 - 2007-01 - Engine (1) Parts Diagram
SKU: cabrio_plus_467_b_prefix_02_2007_01_engine_1_-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch CABRIO PLUS 467 B PREFIX 02 - 2007-01 - Engine (1) Parts Diagram

Description

McCulloch CABRIO PLUS 467 B PREFIX 02 - 2007-01 - Engine (1) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV501 45 16-01 In stock	Needle Bearing	£10.98 £9.15
6	HV538 24 31-74 Available to backorder	Seal	£9.06 £7.55
7	HV538 25 00-74 Available to backorder	Crankcase Assy	£80.58 £67.15
10	HV538 22 75-41 Available to backorder	Ball Bearing	£7.14 £5.95
21	HV538 23 52-18 Available to backorder	Nut	£2.72 £2.27
22	HV538 24 88-08 Available to backorder	Clutch	£54.68 £45.57
23	HV538 24 23-69 Available to backorder	Clutch Pin	£5.96 £4.97
24	HV538 24 12-70 Available to backorder	Spring	£4.66 £3.88
25	HV538 24 10-76 Available to backorder	Washer	£2.34 £1.95
27	HV538 23 58-06 Available to backorder	Screw	£2.06 £1.72
31	HV538 11 10-88 Available to backorder	Retainer Ring	£0.68 £0.57
33	HV538 24 17-81 Available to backorder	Pawl	£6.16 £5.13
41	HV538 24 27-86 Available to backorder	Retaining Spring	£3.11 £2.59
42	HV538 22 74-70 Available to backorder	Washer	£2.34 £1.95
44	HV538 22 77-03 Available to backorder	Starter Rope	£5.24 £4.37
45	HV538 22 73-00 Available to backorder	Return Spring	£14.52 £12.10
46	HV538 22 74-67 Available to backorder	Washer	£2.34 £1.95
48	HV538 24 38-52 Available to backorder	Screw	£0.64 £0.53
50	HV538 24 04-52 Available to backorder	Filter	£7.56 £6.30
51	HV538 24 15-41 Available to backorder	Tank	£56.28 £46.90
57	HV538 23 65-64 Available to backorder	O-Ring	£3.84 £3.20
58	HV538 24 12-48 Available to backorder	Grommet	£6.46 £5.38
61	3380 In stock	Spark Plug	£4.92 £4.10
65	HV538 23 63-22 Available to backorder	Grommet	£3.88 £3.23
67	HV538 24 06-88 Available to backorder	Screw	£2.06 £1.72
70	HV538 24 37-67 Available to backorder	Gasket	£11.56 £9.63
72	HV538 22 72-74 Available to backorder	Screw	£3.62 £3.02
80	HV538 24 14-28 Available to backorder	Gasket	£8.24 £6.87
81	HV538 24 14-34 Available to backorder	Adapter	£15.86 £13.22
83	HV538 23 52-48 Available to backorder	Washer	£2.34 £1.95
90	HV538 22 76-92 Available to backorder	Gasket	£5.08 £4.23
95	HV538 23 56-42 Available to backorder	Nut	£1.44 £1.20
96	HV538 22 71-43 Available to backorder	Stud	£7.76 £6.47
97	HV538 24 37-64 Available to backorder	Air Filter	£6.26 £5.22
99	HV538 24 37-65 Available to backorder	Knob	£7.12 £5.93
