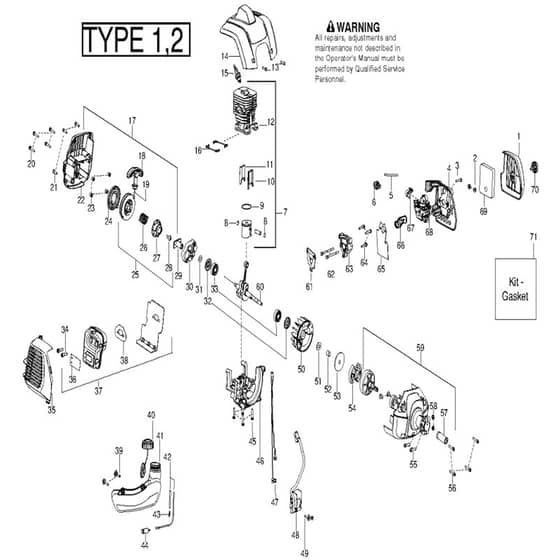

McCulloch CABRIO 433B - 952715746 - 2010-07 - Engine (2) Parts Diagram

Name: McCulloch CABRIO 433B - 952715746 - 2010-07 - Engine (2) Parts Diagram
SKU: cabrio_433b_952715746_2010_07_engine_2_-group
Price: 1.3 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch CABRIO 433B - 952715746 - 2010-07 - Engine (2) Parts Diagram

Description

McCulloch CABRIO 433B - 952715746 - 2010-07 - Engine (2) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV545 17 70-01 Available to backorder	Filter Cover	£7.72 £6.43
2	HV530 01 61-01 Available to backorder	Nut	£1.82 £1.52
6	HV530 04 77-21 Available to backorder	Purge	£15.64 £13.03
7	HV545 00 80-46 Available to backorder	Cylinder Assy	£146.52 £122.10
9	HV545 19 46-01 Available to backorder	Piston Ring	£7.20 £6.00
10	HV545 19 49-01 Available to backorder	Insert	£7.20 £6.00
11	HV545 19 50-01 Available to backorder	Insert	£9.18 £7.65
13	HV530 01 64-49 Available to backorder	Screw	£1.56 £1.30
14	HV545 15 64-01 Available to backorder	Cylinder Cover	£41.04 £34.20
15	9411 In stock	Spark Plug	£3.36 £2.80
16	HV545 00 80-44 Available to backorder	Sealing	£19.94 £16.62
17	HV545 19 07-01 Available to backorder	Starter Assy	£60.26 £50.22
19	HV545 02 99-01 Available to backorder	Starter Rope	£5.24 £4.37
20	HV530 01 58-97 Available to backorder	Screw	£2.04 £1.70
22	HV545 19 06-01 Available to backorder	Starter Housing	£28.46 £23.72
23	HV545 18 53-01 Available to backorder	Spacer	£2.72 £2.27
24	HV545 00 80-13 Available to backorder	Spring Cassette Assy	£15.96 £13.30
25	HV545 00 80-49 Available to backorder	Starter Pulley Assy	£20.96 £17.47
26	HV545 18 83-01 Available to backorder	Spring	£5.18 £4.32
28	HV545 11 28-01 Available to backorder	Screw	£2.58 £2.15
29	HV545 18 82-01 Available to backorder	Sleeve Coupling	£6.38 £5.32
30	HV545 18 87-01 Available to backorder	Cup	£9.72 £8.10
33	HV545 01 34-01 Available to backorder	Bearing	£7.28 £6.07
34	HV530 05 89-82 Available to backorder	Bolt	£2.58 £2.15
39	HV530 01 64-45 Available to backorder	Screw Fuel Tank Retainer	£2.58 £2.15
40	HV578 93 16-04 Available to backorder	Tank Cap Assy	£17.92 £14.93
42	HV530 06 95-99 In stock	Hose	£14.90 £12.42
43	HV530 02 38-77 Available to backorder	Nipple	£6.94 £5.78
44	HV530 09 56-46 In stock	Filter	£8.16 £6.80
48	HV545 18 97-01 Available to backorder	Ignition Module	£64.20 £53.50
50	HV545 12 04-01 Available to backorder	Flywheel Assy	£36.68 £30.57
51	HV530 01 64-63 Available to backorder	Washer	£2.58 £2.15
52	HV530 05 78-52 Available to backorder	Ring	£6.08 £5.07
53	HV530 09 41-89 Available to backorder	Washer	£10.36 £8.63
54	HV530 05 51-22 Available to backorder	Clutch Assy	£54.68 £45.57
55	HV530 01 57-74 Available to backorder	Screw	£2.84 £2.37
58	HV530 01 57-68 Available to backorder	Nut	£2.72 £2.27
59	HV545 19 08-01 Available to backorder	Clutch Cover Assy	£102.14 £85.12
63	HV575 39 15-01 Available to backorder	Adapter	£13.12 £10.93
66	HV545 19 05-01 Available to backorder	Connection	£9.46 £7.88
67	HV574 71 97-01 Available to backorder	Choke Lever	£4.68 £3.90
68	HV545 18 95-02 Available to backorder	Carburettor	£74.72 £62.27
69	HV545 19 59-01 Available to backorder	Air Filter	£8.00 £6.67
70	HV545 18 88-01 Available to backorder	Turning Knob	£6.20 £5.17
