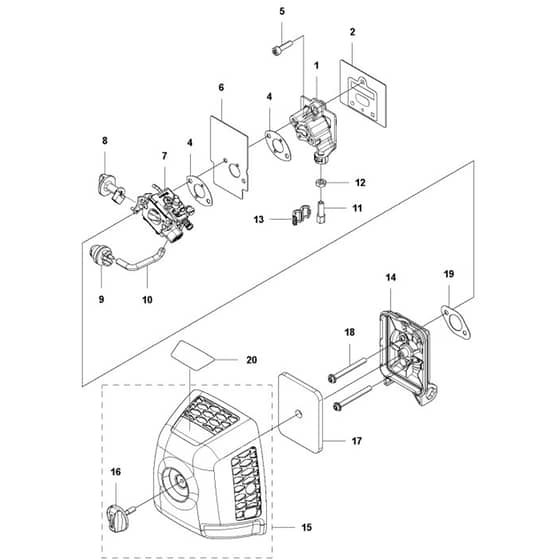

McCulloch B40 P - 2017-01 - Carburetor & Air Filter Parts Diagram

Name: McCulloch B40 P - 2017-01 - Carburetor & Air Filter Parts Diagram
SKU: b40_p_2017_01_carburetor_air_filter-group
Price: 1.71 GBP
Availability: InStock

Part No. b40_p_2017_01_carburetor_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch B40 P - 2017-01 - Carburetor & Air Filter Parts Diagram

Description

McCulloch B40 P - 2017-01 - Carburetor & Air Filter Parts Diagram

	Part No.	Details
1	HV576 68 58-01 Available to backorder	Insulator	£17.32 £14.43
2	HV585 99 66-01 Available to backorder	Gasket	£10.21 £8.51
4	HV577 67 38-01 Available to backorder	Gasket	£5.03 £4.19
5	HV506 68 90-01 Available to backorder	Bolt	£2.05 £1.71
7	HV586 49 10-01 Available to backorder	Carburettor	£77.04 £64.20
9	HV503 93 66-01 In stock	Purge	£15.11 £12.59
14	HV576 68 55-01 Available to backorder	Filter Housing	£14.74 £12.28
15	HV579 18 00-01 Available to backorder	Filter Cover	£29.47 £24.56
16	HV537 21 32-01 Available to backorder	Knob (15)	£5.88 £4.90
17	HV577 92 67-01 In stock	Air Filter	£8.64 £7.20
19	HV577 88 24-02 In stock	Gasket	£4.92 £4.10
