McCulloch B26 PS - 2014-02 - Carburetor & Air Filter Parts Diagram

Name: McCulloch B26 PS - 2014-02 - Carburetor & Air Filter Parts Diagram
SKU: b26_ps_2014_02_carburetor_air_filter-group
Price: 0.67 GBP
Availability: InStock

Part No. b26_ps_2014_02_carburetor_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch B26 PS - 2014-02 - Carburetor & Air Filter Parts Diagram

Description

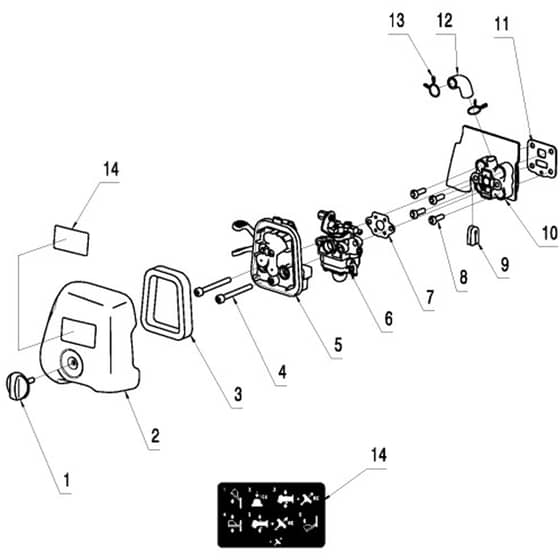

McCulloch B26 PS - 2014-02 - Carburetor & Air Filter Parts Diagram

	Part No.	Details
1	HV537 21 32-01 Available to backorder	Knob	£5.88 £4.90
2	HV584 91 76-01 Available to backorder	Filter Cover	£9.04 £7.53
3	HV575 30 95-01 Available to backorder	Air Filter	£9.14 £7.62
5	HV575 30 97-01 Available to backorder	Filter Holder Assy	£19.66 £16.38
6	HV584 27 41-01 In stock	Carburettor	£61.07 £50.89
7	HV575 31 09-01 Available to backorder	Gasket	£4.37 £3.64
8	HV584 95 62-01 Available to backorder	Screw	£1.91 £1.59
9	HV575 31 13-01 Available to backorder	Grommet	£2.66 £2.22
10	HV575 31 14-01 Available to backorder	Insulator	£18.29 £15.24
11	HV575 31 15-01 Available to backorder	Gasket	£5.54 £4.62
13	HV575 31 12-01 Available to backorder	Hose Clamp	£0.80 £0.67
14	HV585 69 38-01 Available to backorder	Decal	£3.07 £2.56
