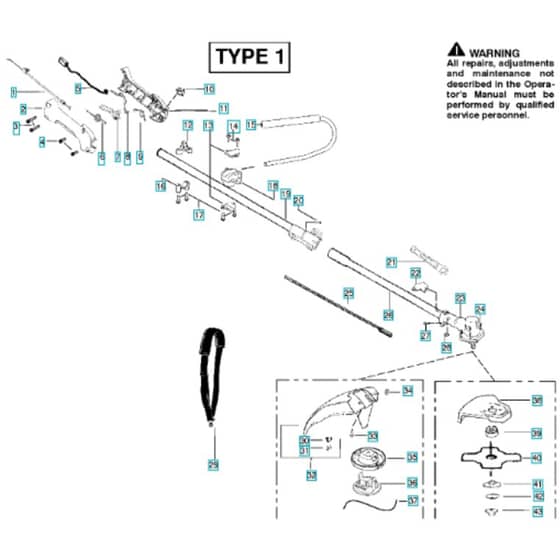

McCulloch 2500 CXL - 2008-03 - Shaft & Handle (1) Parts Diagram

Name: McCulloch 2500 CXL - 2008-03 - Shaft & Handle (1) Parts Diagram
SKU: 2500_cxl_2008_03_shaft_handle_1_-group
Price: 1.07 GBP
Availability: InStock

Part No. 2500_cxl_2008_03_shaft_handle_1_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch 2500 CXL - 2008-03 - Shaft & Handle (1) Parts Diagram

Description

McCulloch 2500 CXL - 2008-03 - Shaft & Handle (1) Parts Diagram

	Part No.	Details
1	HV545 04 43-01 Available to backorder	Assembly	£4.55 £3.79
2	HV545 01 29-02 Available to backorder	Hsg Throttle Right Black	£12.32 £10.27
3	HV530 01 64-06 Available to backorder	Screw	£2.30 £1.92
5	HV530 05 41-83 Available to backorder	Assy Throttle Wire	£7.79 £6.49
6	HV545 06 72-01 Available to backorder	Spring	£3.46 £2.88
7	HV545 01 30-01 Available to backorder	Throttle Trigger Red	£8.69 £7.24
8	HV545 01 31-01 Available to backorder	Throttle Lockout Red	£6.23 £5.19
10	HV530 06 95-72 Available to backorder	Switch	£16.31 £13.59
11	HV545 01 32-01 Available to backorder	Hsg Throttle Lh Black Euro	£20.11 £16.76
12	HV530 05 79-86 Available to backorder	Clamp	£5.90 £4.92
13	HV530 05 85-63 Available to backorder	Bracket	£1.28 £1.07
14	HV530 01 58-86 Available to backorder	Screw	£2.05 £1.71
15	HV530 07 19-74 Available to backorder	Kit	£26.59 £22.16
16	HV530 05 79-87 Available to backorder	Clamp	£3.78 £3.15
17	HV530 01 59-40 Available to backorder	Screw	£2.84 £2.37
18	HV545 02 45-01 Available to backorder	Clamp	£13.46 £11.22
19	HV575 26 07-01 Available to backorder	Cover	£106.32 £88.60
20	HV530 01 63-44 Available to backorder	Screw	£1.79 £1.49
21	HV530 05 64-01 Available to backorder	Wrench	£1.87 £1.56
22	HV530 05 75-54 Available to backorder	Bracket	£6.04 £5.03
23	HV530 09 61-00 Available to backorder	Gearbox	£74.64 £62.20
24	HV530 01 63-12 Available to backorder	Screw	£2.05 £1.71
25	HV545 17 30-03 Available to backorder	Shaft	£101.64 £84.70
27	HV530 01 60-14 Available to backorder	Screw	£2.30 £1.92
28	HV530 01 57-75 Available to backorder	Screw	£2.30 £1.92
31	HV530 01 58-14 Available to backorder	Screw	£1.78 £1.48
33	HV530 01 58-20 Available to backorder	Screw	£3.59 £2.99
34	HV530 01 51-97 Available to backorder	Nut	£2.00 £1.67
36	HV545 04 95-01 Available to backorder	Cap	£7.70 £6.42
39	HV530 09 58-15 Available to backorder	Cup	£14.62 £12.18
41	HV530 09 58-16 Available to backorder	Washer	£12.18 £10.15
42	HV530 01 62-40 Available to backorder	Washer	£4.36 £3.63
43	HV530 01 57-93 Available to backorder	Nut	£5.36 £4.47
