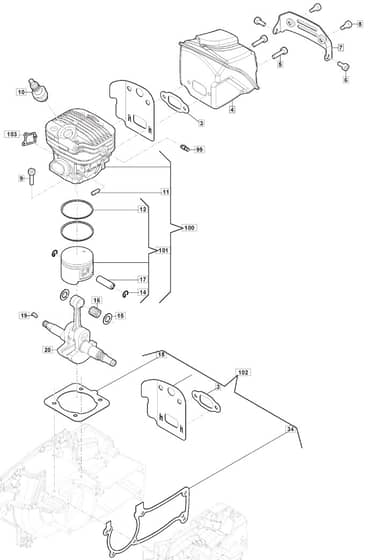

MC 5218 - 2017-2019 - 240521803/M17 - Mountfield Chainsaw Cylinder Diagram

Name: MC 5218 - 2017-2019 - 240521803/M17 - Mountfield Chainsaw Cylinder Diagram
SKU: mc_5218_240521803_m17_cylinder-group
Price: 0.96 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MC 5218 - 2017-2019 - 240521803/M17 - Mountfield Chainsaw Cylinder Diagram

Description

Mountfield MC 5218 Parts Diagram

Model Year - 2017-2019

Model Type - SP 526

Art.N - 240521803/M17

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118804618/0 Out of stock	Muffler Gasket	£1.63 £1.36
4	MO118804320/1 Out of stock	Muffler To 31-8-2017	£44.70 £37.25
4	MO118804919/0 Out of stock	Muffler From 01-9-2017	£52.82 £44.02
7	MO118804294/0 Out of stock	Muffler Cover To 31-8-2017	£4.33 £3.61
7	MO118804920/0 Out of stock	Muffler Cover From 01-9-2017	£4.33 £3.61
8	MO2135040 Out of stock	Screw	£1.33 £1.11
9	MO2132550 Out of stock	Screw	£1.36 £1.13
10	2688 In stock	Spark Plug	Was £2.18 £1.82 Special Price £1.20 £1.00
12	MO118804249/0 Out of stock	Piston Ring	£4.07 £3.39
14	MO118804255/0 Out of stock	Circlip	£1.15 £0.96
15	MO118804244/0 Out of stock	Needle Bearing Gasket	£1.49 £1.24
16	MO118804412/0 Out of stock	Needle Bearing	£10.02 £8.35
17	MO118804223/0 Out of stock	Piston Pin	£1.63 £1.36
18	MO118804619/0 Out of stock	Cylinder Gasket	£1.75 £1.46
19	MO118800959/0 Out of stock	Key	£1.49 £1.24
20	MO118804393/0 Out of stock	Crankshaft	£60.95 £50.79
34	MO118804620/0 Out of stock	Crankcase Gasket	£2.30 £1.92
99	MO118804531/0 Out of stock	Decompression Valve	£29.80 £24.83
100	MO118804248/0 Out of stock	Cylinder - Piston Assy To S.N 20DC1CHA008868	£91.43 £76.19
101	MO118804247/0 Out of stock	Piston Assy	£22.75 £18.96
102	MO118804253/0 Out of stock	Gaskets Assy	£6.77 £5.64
103	MO118805165/0 Out of stock	Cylinder Cover Gasket	£1.75 £1.46
