MC 4818 - 2008 - 224016003/MO8 - Mountfield Chainsaw Housing Diagram

Name: MC 4818 - 2008 - 224016003/MO8 - Mountfield Chainsaw Housing Diagram
SKU: mc_4818_224016003_mo8_housing-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MC 4818 - 2008 - 224016003/MO8 - Mountfield Chainsaw Housing Diagram

Description

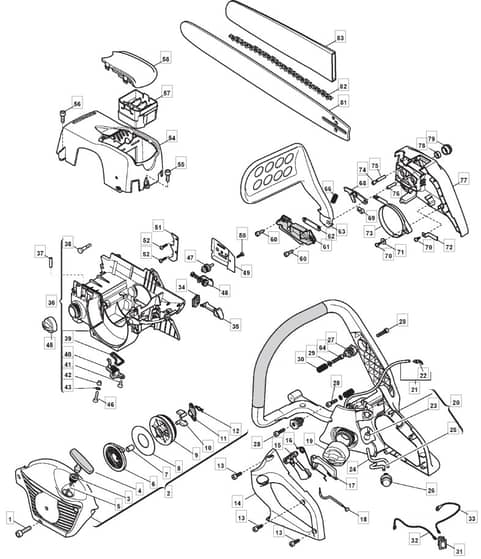

Mountfield MC 4818 Parts Diagram

Model Year - 2008

Model Type - P 480

Art.N - 224016003/MO8

Be the first to review this product

0 product questions

	Part No.	Details
2	MO383058005/0 Available to backorder	Carter Assy Red	£90.38 £75.32
4	MO118800193/0 Available to backorder	Starter Handle	£2.26 £1.88
5	MO3784030 Available to backorder	Starter Cord	£2.12 £1.77
6	MO4611480 Available to backorder	Starter Spring	£8.15 £6.79
7	MO3623590 Available to backorder	Bushing	£1.40 £1.17
8	MO3723640 Available to backorder	Disc For Starter Spring	£4.08 £3.40
9	MO3750130 Available to backorder	Starter Pulley	£4.37 £3.64
11	MO3750140 Available to backorder	Starter Hook Guide	£3.38 £2.82
15	MO3743587 Available to backorder	Throttle Lever For Cable	£3.52 £2.93
16	MO1L3654440/1 Available to backorder	Molla Leva Accel. E Sicurezza 360-41	£2.81 £2.34
17	MO3743597 Available to backorder	Safety Lever	£1.69 £1.41
18	MO123066002/0 Available to backorder	Throttle Cable	£16.26 £13.55
19	MO383790000/0 Available to backorder	Fuel Tank-Cap Ass.Y	£9.52 £7.93
22	MO4253680 Available to backorder	Breather Valve Assy	£4.08 £3.40
23	MO3L8783140/2 Available to backorder	Intake	£17.74 £14.78
26	MO123018000/0 Available to backorder	Primer Pump	£8.77 £7.31
27	MO323790003/0 Available to backorder	Welch Plug	£1.60 £1.33
30	MO123430555/0 Available to backorder	Spring	£3.10 £2.58
31	MO118800202/0 Available to backorder	Stop Switch	£1.82 £1.52
35	MO323315059/0 Available to backorder	Air Lever	£3.24 £2.70
37	MO3L4353090/1 Available to backorder	Oil Tube Assy	£4.64 £3.87
40	MO323520000/0 Available to backorder	Oil Filter Assy	£57.14 £47.62
43	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
45	MO383790001/0 Available to backorder	Tank Cap	£15.20 £12.67
47	MO123510091/0 Available to backorder	Pin	£25.20 £21.00
49	MO323311001/0 Available to backorder	Bar Plate	£6.86 £5.72
51	MO323026000/0 Available to backorder	Spike	£7.10 £5.92
56	MO2123030 Available to backorder	Screw	£1.33 £1.11
58	MO323109504/0 Available to backorder	Air Filter Cover	£3.95 £3.29
60	MO2123100 Available to backorder	Screw	£1.28 £1.07
62	MO3614490 Available to backorder	Brake Plate	£2.33 £1.94
64	MO2135040 Available to backorder	Screw	£1.38 £1.15
68	MO4252310 Available to backorder	Chain Brake Lever	£16.69 £13.91
70	MO2123060 Available to backorder	Screw	£1.33 £1.11
71	MO2312100 Available to backorder	Washer	£1.40 £1.17
73	MO323448000/0 Available to backorder	Brake Band	£11.34 £9.45
77	MO323059007/0 Available to backorder	Clutch Housing Red	£12.01 £10.01
78	MO3643000 Available to backorder	Bushing	£2.26 £1.88
79	MO2670270 Available to backorder	Nut	£2.81 £2.34
81	MO123900101/0 Available to backorder	Guide Bar 18Inch	£58.38 £48.65
82	5052 In stock	Chain 18Inch	£11.70 £9.75
