MC 443 - 2005 - 224718003 - Mountfield Chainsaw Engine Diagram

Description

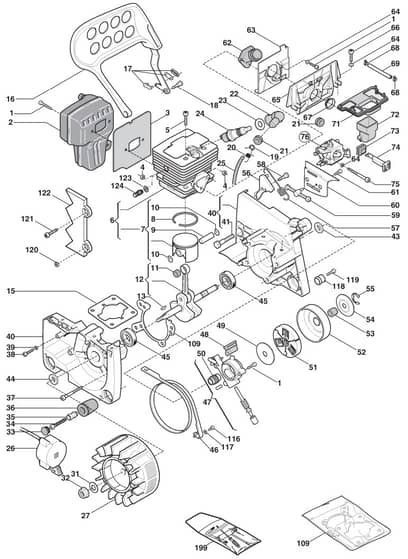

Mountfield MC 443 Parts Diagram

Model Year - 2005

Model Type - P 510

Art.N - 224718003

Be the first to review this product

0 product questions

	Part No.	Details
2	MO4121931 Available to backorder	Muffler MC443	£33.79 £28.16
3	MO3615180 Available to backorder	Muffler Gasket MC443	£6.05 £5.04
6	MO3L8540970/2 Available to backorder	Cylinder - Piston Ass'Y Pos 7 incl. _ MC509	£216.79 £180.66
7	MO8540960 Available to backorder	Piston Assy Ø 45 Pos 8 - 10 incl. _ MC509	£67.94 £56.62
7	MO8540860 Available to backorder	Piston Assy Pos 8 - 10 incl. _ MC443	£71.29 £59.41
8	MO3123200 Available to backorder	Piston Ring MC443	£6.36 £5.30
8	MO3123110 Available to backorder	Piston Ring MC509	£7.03 £5.86
9	MO3158010 Available to backorder	Piston Pin MC443	£4.22 £3.52
9	MO3158080 Available to backorder	Piston Pin MC509	£5.09 £4.24
10	MO3356020 Available to backorder	Circlip MC443	£6.92 £5.77
11	MO3116020 Available to backorder	Needle Bearing MC443	£13.93 £11.61
13	MO3151010 Available to backorder	Flywheel Key MC443	£1.33 £1.11
15	MO3724190 Available to backorder	Cylinder Gasket MC443	£4.66 £3.88
16	MO4563940 Available to backorder	Hand Guard MC443	£22.36 £18.63
17	MO4250720 Available to backorder	Chain MC443	£7.46 £6.22
18	MO1L3630660/1 Available to backorder	Pin MC443	£6.48 £5.40
20	MO3657050 Available to backorder	Spring MC443	£3.94 £3.28
21	MO3745130 Available to backorder	Grommet MC443	£1.40 £1.17
22	MO3748880 Available to backorder	Spark Plug Cover MC443	£2.03 £1.69
24	3359 In stock	Spark Plug (Cj7Y) Champion CJ7Y _ MC443	£3.84 £3.20
26	MO3210690 Available to backorder	Electronic Coil MC443	£77.65 £64.71
27	MO4541220 Available to backorder	Flywheel MC443	£63.05 £52.54
33	MO118800195/0 Available to backorder	Cap MC443	£1.55 £1.29
34	MO2123030 Available to backorder	Screw MC443	£1.33 £1.11
36	MO3744250 Available to backorder	Shock Absorber MC443	£3.79 £3.16
37	MO2135130 Available to backorder	Screw MC443	£1.40 £1.17
38	MO2132510 Available to backorder	Screw MC443	£1.38 £1.15
40	MO8520940 Available to backorder	Crankcase Assy Incl. 41.118.119.121 _ MC443	£152.77 £127.31
43	MO3121120 Available to backorder	Seal Ring MC443	£19.12 £15.93
45	MO3112030 Available to backorder	Ball Bearing MC443	£14.92 £12.43
46	MO3613760 Available to backorder	Brake Band MC443	£8.17 £6.81
47	MO4251591 Available to backorder	Oil Pump Assy Pos 50 incl. _ MC443	£67.91 £56.59
48	MO3744730 Available to backorder	Gasket MC443	£4.08 £3.40
49	MO3613770 Available to backorder	Washer MC443	£2.81 £2.34
52	MO4121960 Available to backorder	Sprocket MC443	£29.56 £24.63
53	MO3114080 Available to backorder	Needle Bearing MC443	£10.27 £8.56
55	MO112000955/0 Available to backorder	Circlip MC443	£1.33 £1.11
56	MO4121970 Available to backorder	Chain Brake Lever MC443	£7.31 £6.09
57	MO3654580 Available to backorder	Spring MC443	£26.35 £21.96
62	MO3744710 Available to backorder	Intake Manifold MC443	£19.06 £15.88
63	MO4251730 Available to backorder	Flange MC443	£13.66 £11.38
64	MO2312090 Available to backorder	Washer MC443	£1.33 £1.11
66	MO2135040 Available to backorder	Screw MC443	£1.38 £1.15
71	MO3781580 Available to backorder	Air Filter Support MC443	£9.16 £7.63
75	MO2135110 Available to backorder	Screw MC443	£1.40 £1.17
76	MO4253650 Available to backorder	Carburettor Assy Walbro WT429 _ MC443	£133.81 £111.51
109	MO8724230 Available to backorder	Gasket Set Pos 3. 15 incl. _ MC443	£11.36 £9.47
116	MO2125010 Available to backorder	Screw MC443	£1.40 £1.17
118	MO3749400 Available to backorder	Chain Stop MC443	£1.33 £1.11
119	MO2135050 Available to backorder	Screw MC443	£1.33 £1.11
120	MO2432040 Available to backorder	Nut MC443	£1.33 £1.11
124	MO3L4252080/2 Available to backorder	Decompressor MC443	£35.21 £29.34
