MC 438 - 2012-2015 - 203714003/M12 - Mountfield Chainsaw Housing Diagram

Description

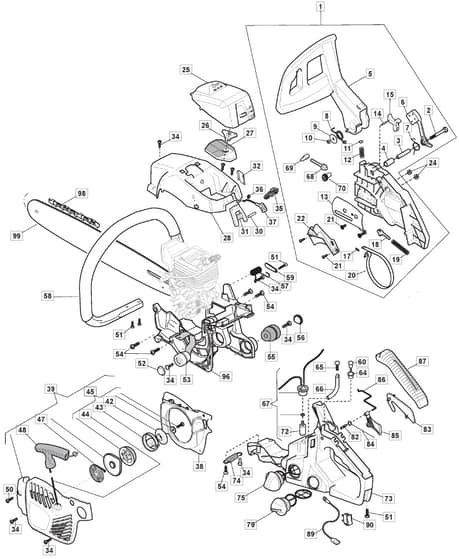

Mountfield MC 438 Parts Diagram

Model Year - 2012-2015

Model Type - C 38

Art.N - 203714003/M12

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118801733/0 Available to backorder	Clutch Housing Red	£25.34 £21.12
2	MO123878017/0 Available to backorder	Screw	£1.40 £1.17
6	MO118800748/0 Available to backorder	Balance Weigth	£1.82 £1.52
7	MO123430572/0 Available to backorder	Spring	£2.53 £2.11
8	MO118800747/0 Available to backorder	Spring	£1.40 £1.17
10	MO112154320/0 Available to backorder	Nut	£1.55 £1.29
12	MO118800745/0 Available to backorder	Front Guard Spring	£1.40 £1.17
13	MO118800257/0 Available to backorder	Bar Plate	£3.38 £2.82
14	MO123753001/0 Available to backorder	Pin	£1.33 £1.11
15	MO383315051/0 Available to backorder	Chain Brake Lever	£2.53 £2.11
17	MO123753000/0 Available to backorder	Needle	£1.55 £1.29
18	MO323315067/0 Available to backorder	Lever	£4.37 £3.64
20	MO118800185/0 Available to backorder	Brake Band	£5.21 £4.34
21	MO123878023/0 Available to backorder	Screw	£1.69 £1.41
24	MO118800186/0 Available to backorder	Nut	£1.55 £1.29
25	MO118800767/0 Available to backorder	Filter Cover. Black Black	£7.03 £5.86
26	MO118800756/0 Available to backorder	Knob	£1.97 £1.64
27	MO118800188/0 Available to backorder	Air Filter	£5.92 £4.93
30	MO118800740/0 Available to backorder	Pin	£1.40 £1.17
31	MO118800768/0 Available to backorder	Knob	£1.97 £1.64
32	MO118800749/0 Available to backorder	Cap	£1.33 £1.11
34	MO118800189/0 Available to backorder	Screw	£1.69 £1.41
35	MO118800742/0 Available to backorder	Grommet	£1.55 £1.29
36	MO118800264/0 Available to backorder	Grommet Air-Lever	£1.33 £1.11

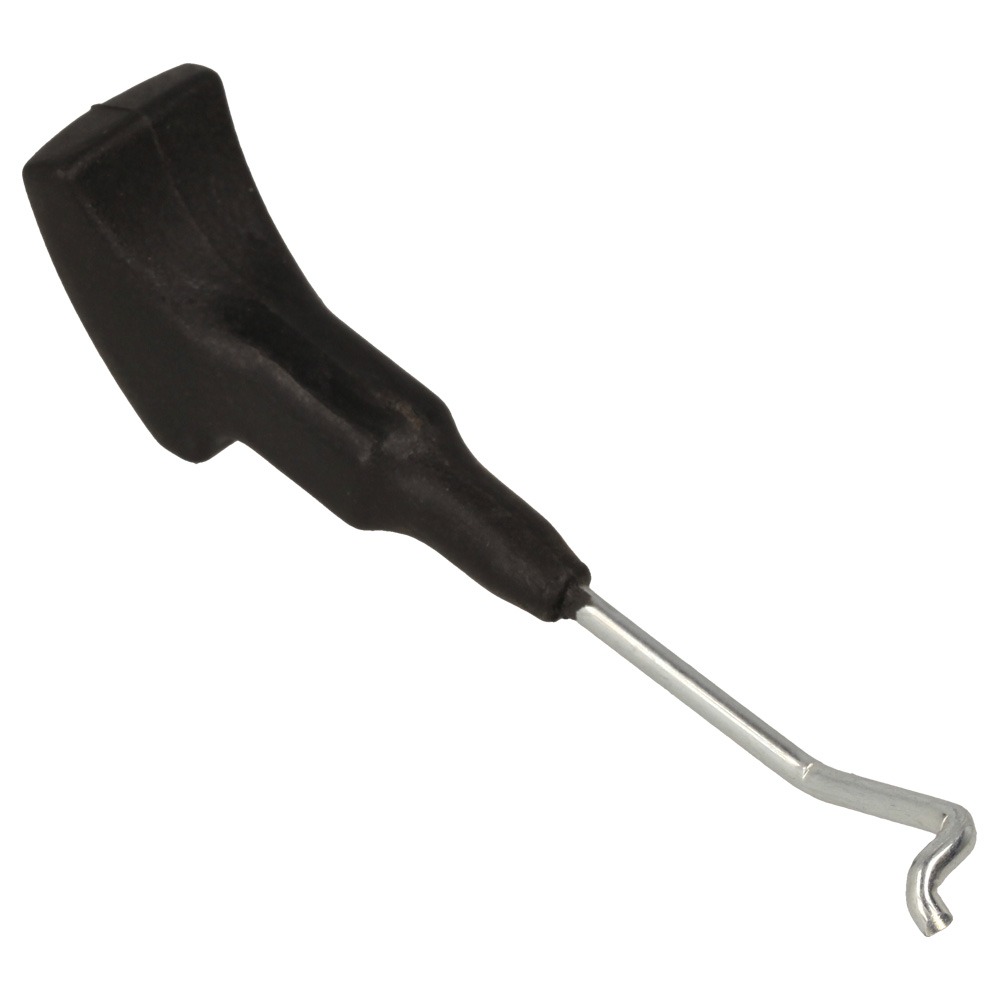

37	MO118800755/0 Available to backorder	Choke Knob	£1.90 £1.58

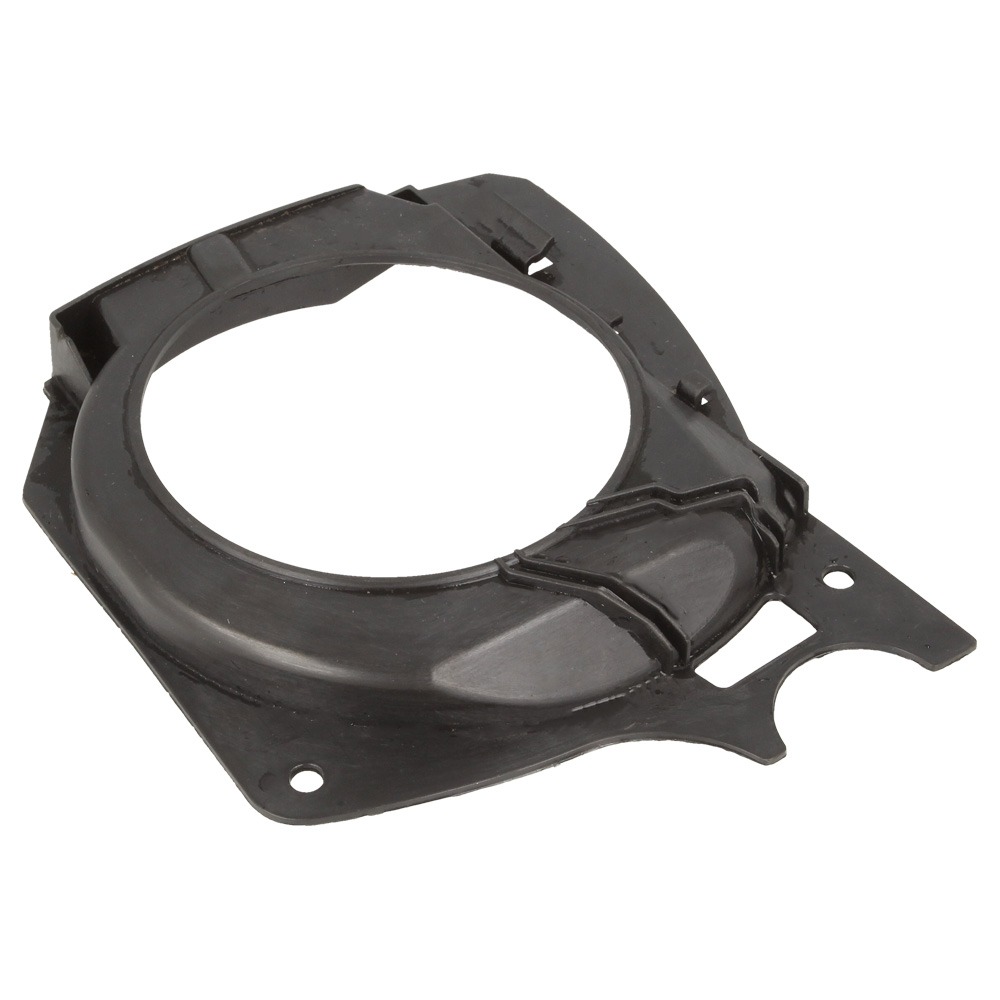

38	MO118800758/0 Available to backorder	Air Conveyor	£3.53 £2.94
39	MO118801735/0 Available to backorder	Starter Assy .Red	£38.00 £31.67

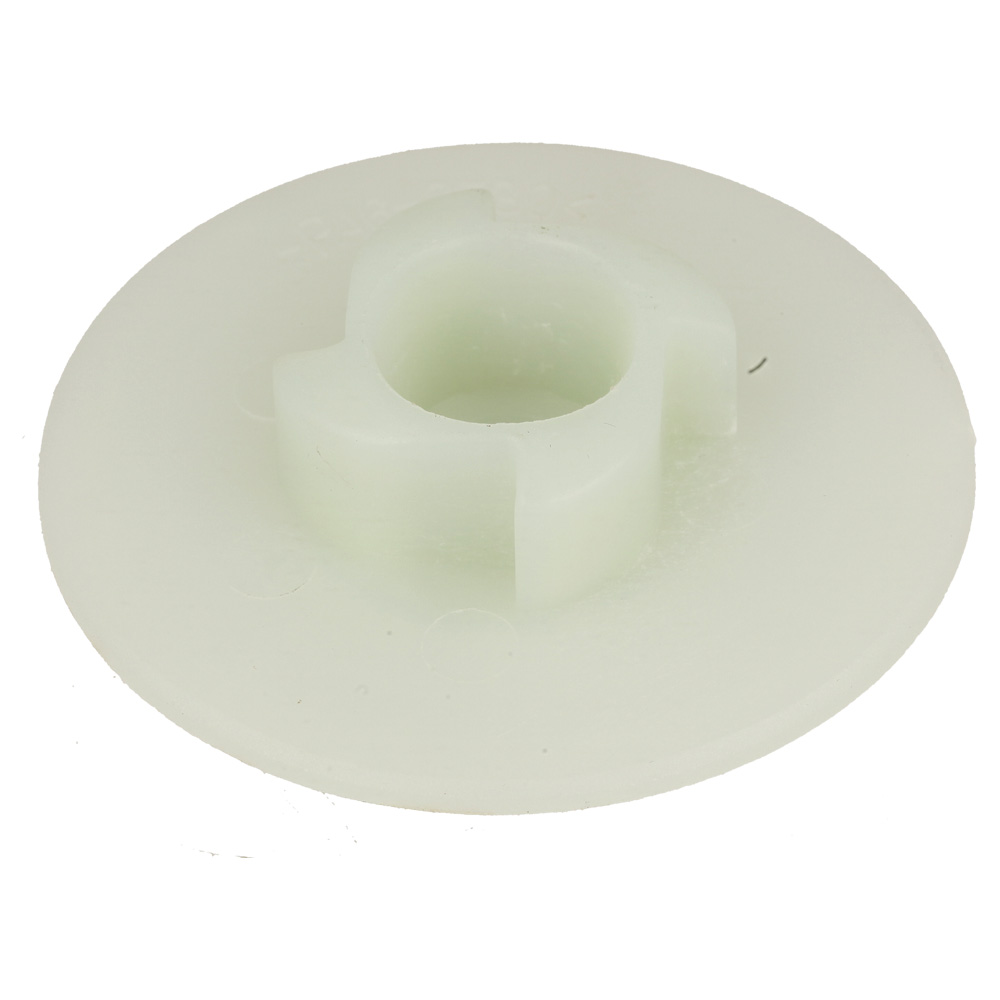

42	MO118800754/0 Available to backorder	Starter Cup	£2.68 £2.23

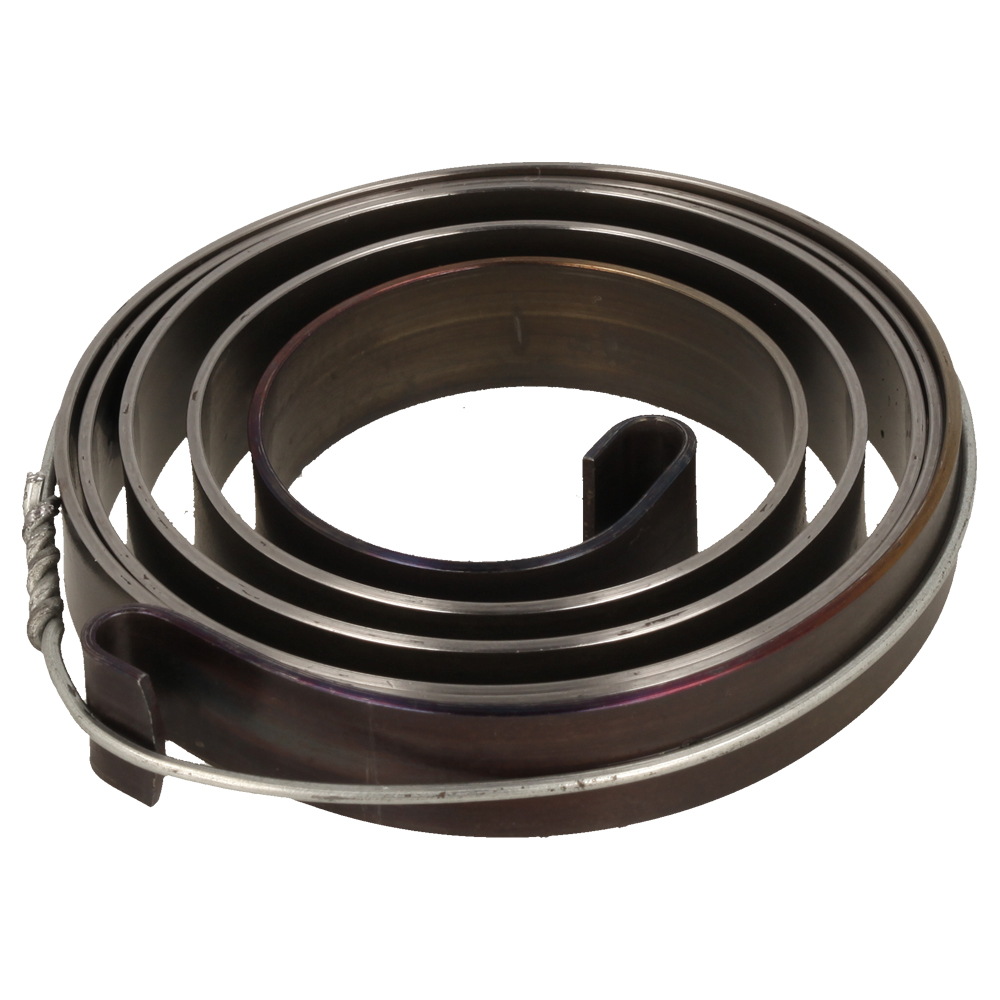

43	MO118800753/0 Available to backorder	Spring	£5.48 £4.57
44	MO118801178/0 Available to backorder	Wire	£1.55 £1.29

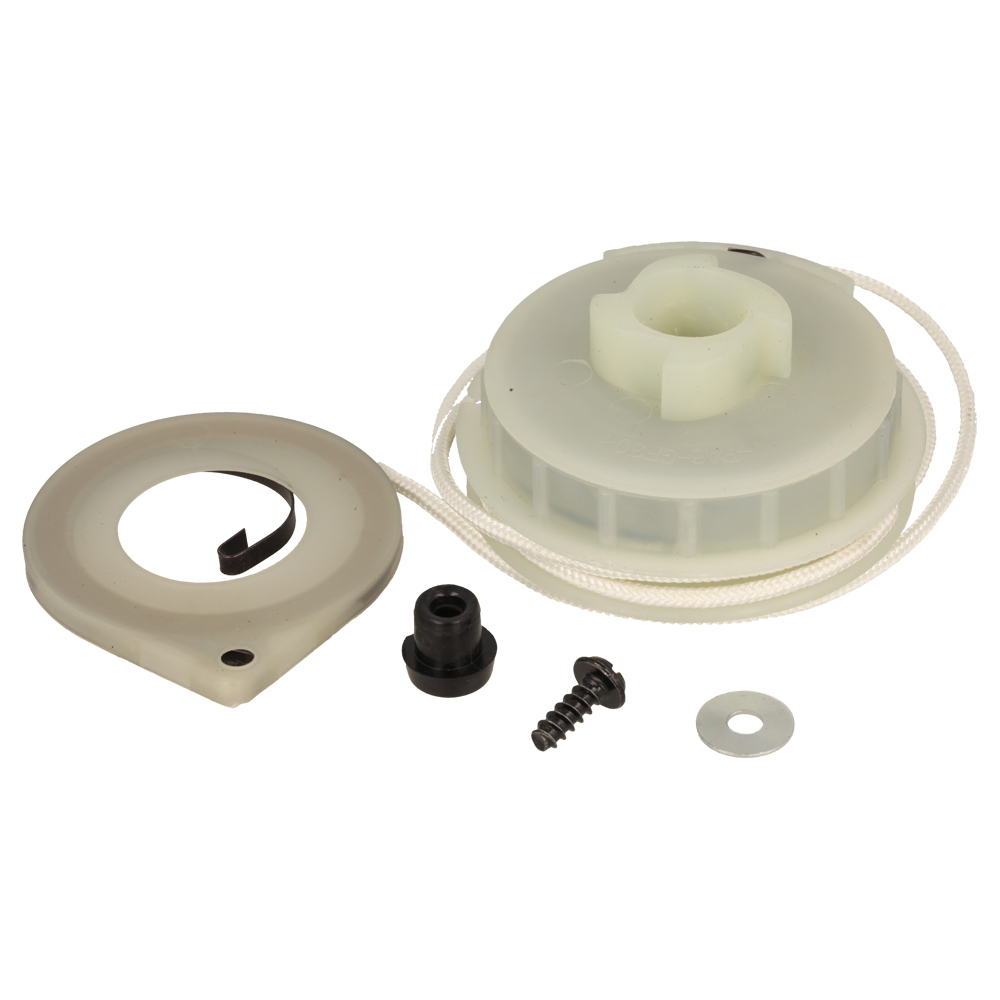

45	MO118800760/1 Available to backorder	Starter Pulley Assy	£16.46 £13.72
47	MO118800741/0 Available to backorder	Starter Spring	£4.50 £3.75
48	MO118800759/0 Available to backorder	Starter Handle	£2.68 £2.23
50	MO123878024/0 Available to backorder	Screw	£1.40 £1.17
51	MO123878025/0 Available to backorder	Screw	£2.27 £1.89
52	MO118800743/0 Available to backorder	Dust Cover	£1.40 £1.17
53	MO118800266/0 Available to backorder	Shock Absorber	£1.40 £1.17
55	MO118800194/0 Available to backorder	Shock Absorber	£2.81 £2.34
56	MO118800195/0 Available to backorder	Cap	£1.55 £1.29
57	MO118800196/0 Available to backorder	Spring	£2.12 £1.77
58	MO118800197/0 Available to backorder	Handle	£17.33 £14.44
60	MO118800198/0 Available to backorder	Breather Valve Ass.Y	£5.59 £4.66
64	MO118800744/0 Available to backorder	Grommet	£1.69 £1.41
65	MO112728124/0 Available to backorder	Screw	£1.55 £1.29
66	MO118800255/0 Available to backorder	Pickup Oil	£1.69 £1.41
67	MO118800214/0 Available to backorder	Fuel Filter	£9.16 £7.63
68	MO118801067/0 Available to backorder	Screw	£1.69 £1.41
69	MO118801065/0 Available to backorder	Chain Tightener Block	£1.33 £1.11
70	MO118801066/0 Available to backorder	Pinion	£5.21 £4.34
72	MO118800199/0 In stock	Fuel Filter	£2.81 £2.34
74	MO118800201/0 Available to backorder	Spring	£1.69 £1.41
75	MO118800761/0 Available to backorder	Fuel Cap Assy	£3.79 £3.16
79	MO118800762/0 Available to backorder	Oil Tank Cap	£3.89 £3.24
82	MO123510098/0 Available to backorder	Elastic Pin	£1.69 £1.41
83	MO118800205/0 Available to backorder	Safety Lever	£1.40 £1.17
84	MO118800206/0 Available to backorder	Spring	£1.33 £1.11
85	MO118800207/0 Available to backorder	Throttle Lever	£1.33 £1.11
86	MO118800750/0 Available to backorder	Spring	£4.22 £3.52
89	MO118800213/0 Available to backorder	Stop Wire	£1.33 £1.11
90	MO118800202/0 Available to backorder	Switch	£1.82 £1.52
96	MO118800752/0 Available to backorder	Crankcase	£18.19 £15.16
98	6160 In stock	Chain 14"-3.8"-0.050"-53E	£9.95 £8.29
99	MO118800127/0 Available to backorder	Guide Bar 14Inch	£34.15 £28.46
