MC 382 - 2006-2007 - 222516003/MOU - Mountfield Chainsaw Cylinder Diagram

MC 382 - 2006-2007 - 222516003/MOU - Mountfield Chainsaw Cylinder Diagram
MC 382 - 2006-2007 - 222516003/MOU - Mountfield Chainsaw Cylinder Diagram

Description

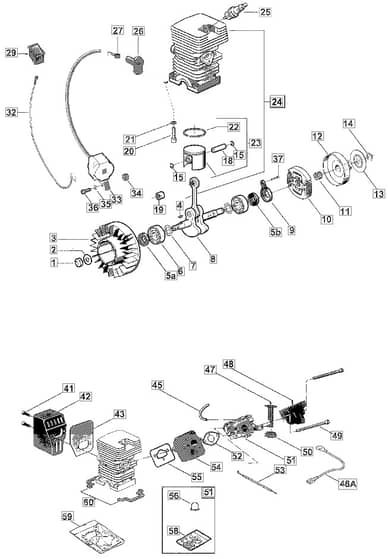

Mountfield MC 382 Parts Diagram

Model Year - 2006-2007

Model Type - P 410

Art.N - 222516003/MOU

Ref. Img. Part No. Details
  3 Flywheel
Flywheel
MO3L4541210/1 Out of stock
Flywheel
£51.04 £42.53

  4 Flywheel Key
Flywheel Key
MO3151010 Out of stock
Flywheel Key
£1.28 £1.07

  5 Seal Ring MC382 - ref 5a
Seal Ring MC382 - ref 5a
MO3121071 Out of stock
Seal Ring MC382 - ref 5a
£4.60 £3.83

  6 Ball Bearing
Ball Bearing
MO3112030 Out of stock
Ball Bearing
£14.35 £11.96

  8 Crankshaft Pos 19 incl. _ MC382
Crankshaft Pos 19 incl. _ MC382
MO383020003/0 Out of stock
Crankshaft Pos 19 incl. _ MC382
£75.85 £63.21

  11 Needle Bearing
Needle Bearing
MO3114190 Out of stock
Needle Bearing
£7.38 £6.15

  12 Clutch Drum
Clutch Drum
MO4122070 Out of stock
Clutch Drum
£18.14 £15.12

  14 Circlip
Circlip
MO112000955/0 Out of stock
Circlip
£1.28 £1.07

  15 Circlip Ring
Circlip Ring
MO3356050 Out of stock
Circlip Ring
£1.36 £1.13

  18 Piston Pin
Piston Pin
MO3158260 Out of stock
Piston Pin
£6.38 £5.32

  19 Needle Bearing
Needle Bearing
MO3116100 Out of stock
Needle Bearing
£7.13 £5.94

  20 Screw MC382
Screw MC382
MO2135030 In stock
Screw MC382
£1.36 £1.13

  21 Washer
Washer
MO2330020 Out of stock
Washer
£1.36 £1.13

  22 Piston Ring Ø 39
Piston Ring Ø 39
MO3123220 Out of stock
Piston Ring Ø 39
£4.97 £4.14

  23 Piston Assy
Piston Assy
MO3L8541360/1 Out of stock
Piston Assy
£99.53 £82.94

  24 Cylinder - Piston Ass'Y
Cylinder - Piston Ass'Y
MO3L8541370/1 Out of stock
Cylinder - Piston Ass'Y
£237.02 £197.52

  25 Spark Plug (Cj7Y) Champion CJ7Y _ MC382
Spark Plug (Cj7Y) Champion CJ7Y _ MC382
3359 In stock
Spark Plug (Cj7Y) Champion CJ7Y _ MC382
£3.84 £3.20

  27 Spark Plug Spring
Spark Plug Spring
MO3657050 Out of stock
Spark Plug Spring
£3.83 £3.19

  29 Stop Switch
Stop Switch
MO118800202/0 Out of stock
Stop Switch
£1.75 £1.46

  33 Electronic Coil
Electronic Coil
MO3L3211350/1 Out of stock
Electronic Coil
£114.29 £95.24

  34 Spring MC382
Spring MC382
MO3654480 Out of stock
Spring MC382
£1.28 £1.07

  41 Screw
Screw
MO2135040 Out of stock
Screw
£1.33 £1.11

  42 Muffler Assy
Muffler Assy
MO4122040 Out of stock
Muffler Assy
£37.61 £31.34

  43 Muffler Gasket
Muffler Gasket
MO3724270 Out of stock
Muffler Gasket
£3.92 £3.27

  48 Intake Manifold Assy MC382
Intake Manifold Assy MC382
MO8744781 Out of stock
Intake Manifold Assy MC382
£35.21 £29.34

  51 Carburettor Assy
Carburettor Assy
MO123054003/2 Out of stock
Carburettor Assy
£217.64 £181.37

  52 Heat Block
Heat Block
MO1L3724160/1 Out of stock
Heat Block
£2.26 £1.88

  53 Throttle Cable With Sheath
Throttle Cable With Sheath
MO4252480 Out of stock
Throttle Cable With Sheath
£6.24 £5.20

  54 Intake Manifold
Intake Manifold
MO3750180 Out of stock
Intake Manifold
£12.48 £10.40

  55 Intake Manifold Gasket
Intake Manifold Gasket
MO1L3724300/1 Out of stock
Intake Manifold Gasket
£13.84 £11.53

  56 Air Purge Pump
Air Purge Pump
MO3744870 Out of stock
Air Purge Pump
£12.86 £10.72

  58 Diaphragm Gasket Set
Diaphragm Gasket Set
MO8724091 Out of stock
Diaphragm Gasket Set
£24.49 £20.41

  59 Gasket Set MC382
Gasket Set MC382
MO8724300 Out of stock
Gasket Set MC382
£17.77 £14.81

  60 Cylinder Base Washer Cs 360-410
Cylinder Base Washer Cs 360-410
MO3721560 Out of stock
Cylinder Base Washer Cs 360-410
£2.10 £1.75


Description

Mountfield MC 382 Parts Diagram

Model Year - 2006-2007

Model Type - P 410

Art.N - 222516003/MOU
