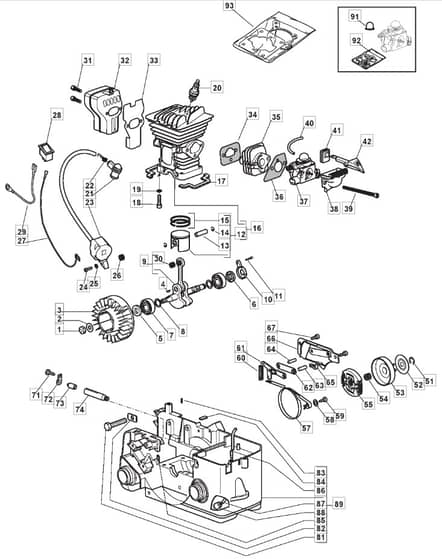

Mountfield MC 3816 Parts Diagram

Model Year - 2009

Model Type - P 382 S

Art.N - 223516003/MO8

Ref. Img. Part No. Details
  3 Flywheel MO3L4541210/1
Flywheel
Out of stock
£51.04 £42.53

  4 Flywheel Key MO3151010
Flywheel Key
Out of stock
£1.28 £1.07

  5 Seal Ring 5a MO3121071
Seal Ring 5a
Out of stock
£4.60 £3.83

  7 Ball Bearing MO3112030
Ball Bearing
Out of stock
£14.35 £11.96

  9 Crankshaft MO383020003/0
Crankshaft
Out of stock
£75.85 £63.21

  12 Piston Assy Ø 39 MO383590005/0
Piston Assy Ø 39
Out of stock
£24.11 £20.09

  13 Piston Pin MO3158260
Piston Pin
Out of stock
£6.38 £5.32

  14 Circlip Ring MO3356050
Circlip Ring
Out of stock
£1.36 £1.13

  15 Piston Ring Ø 39 MO123204003/0
Piston Ring Ø 39
Out of stock
£4.48 £3.73

  16 Cylinder - Piston Ass'Y MO383070005/0
Cylinder - Piston Ass'Y
Out of stock
£155.76 £129.80

  17 Cylinder Gasket MO3721560
Cylinder Gasket
Out of stock
£2.10 £1.75

  19 Washer MO2330020
Washer
Out of stock
£1.36 £1.13

  20 Spark Plug 2688
Spark Plug
In stock
Was £2.18 £1.82 Special Price £1.20 £1.00

  21 Spark Plug Cap MO3748880
Spark Plug Cap
Out of stock
£1.97 £1.64

  22 Spark Plug Spring MO3657050
Spark Plug Spring
Out of stock
£3.83 £3.19

  23 Electronic Coil MO3L3211350/1
Electronic Coil
Out of stock
£114.29 £95.24

  26 Spring MO3654480
Spring
Out of stock
£1.28 £1.07

  28 Stop Switch MO118800202/0
Stop Switch
Out of stock
£1.75 £1.46

  30 Needle Bearing MO3116100
Needle Bearing
Out of stock
£7.13 £5.94

  31 Screw MO2135040
Screw
Out of stock
£1.33 £1.11

  32 Muffler Assy MO183740004/0
Muffler Assy
Out of stock
£49.03 £40.86

  34 Intake Manifold Gasket MO1L3724300/1
Intake Manifold Gasket
Out of stock
£13.84 £11.53

  35 Intake Manifold MO3750180
Intake Manifold
Out of stock
£12.48 £10.40

  36 Carburettor Gasket MO1L3724160/1
Carburettor Gasket
Out of stock
£2.26 £1.88

  37 Carburetor MO123054003/2
Carburetor
Out of stock
£217.64 £181.37

  38 Intake Manifold Assy MO8744781
Intake Manifold Assy
Out of stock
£35.21 £29.34

  51 Benzing Ring MO112000955/0
Benzing Ring
Out of stock
£1.28 £1.07

  53 Clutch Drum MO4121208
Clutch Drum
Out of stock
£16.52 £13.77

  54 Needle Bearing MO3114190
Needle Bearing
Out of stock
£7.38 £6.15

  57 Brake Band MO3614740
Brake Band
Out of stock
£6.64 £5.53

  58 Washer MO2312150
Washer
Out of stock
£1.28 £1.07

  59 Screw MO2123060
Screw
Out of stock
£1.28 £1.07

  61 Chain Brake Lever MO4252310
Chain Brake Lever
Out of stock
£16.06 £13.38

  62 Brake Plate MO3614490
Brake Plate
Out of stock
£2.24 £1.87

  66 Brake Cover MO3750117
Brake Cover
Out of stock
£12.40 £10.33

  67 Screw MO2123100
Screw
Out of stock
£1.28 £1.07

  72 Retainer MO3614810
Retainer
Out of stock
£3.38 £2.82

  74 Oil Pump Assy MO4252220
Oil Pump Assy
Out of stock
£33.86 £28.22

  81 Screw MO123878001/0
Screw
Out of stock
£3.92 £3.27

  86 Breather Valve Assy MO4253680
Breather Valve Assy
Out of stock
£3.92 £3.27

  88 Intake Filter MO4253290
Intake Filter
Out of stock
£13.03 £10.86

  91 Primer Carburettor MO3744870
Primer Carburettor
Out of stock
£12.86 £10.72

  92 Diaphragm Gasket Set MO8724091
Diaphragm Gasket Set
Out of stock
£24.49 £20.41
