MC 3814 - 2017-2022 - 240381403/M17 - Mountfield Chainsaw Recoil Starter Diagram

Description

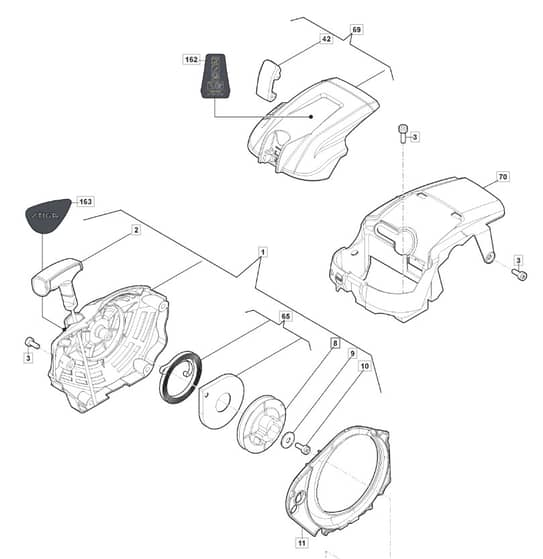

Mountfield MC 3814 Parts Diagram

Model Year - 2017-2022

Model Type - SP 386

Art.N - 240381403/M17

	Part No.	Details
1	MO118804865/0 Available to backorder	Starter Assy. Red	£38.00 £31.67
2	MO118804866/0 Available to backorder	Starter Handle. Red Red	£5.06 £4.22
3	MO2135040 Available to backorder	Screw	£1.38 £1.15
8	MO118804243/1 Available to backorder	Starter Pulley	£3.25 £2.71
9	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
10	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
11	MO118804333/0 Available to backorder	Air Guide	£4.78 £3.98
42	MO118804215/0 Available to backorder	Lever	£1.55 £1.29
65	MO118804385/0 Available to backorder	Starter Spring Assy	£4.64 £3.87
69	MO118804868/0 Available to backorder	Air Filter Cover Assy. Red Red	£15.78 £13.15
70	MO118804909/0 Available to backorder	Cylinder Cover Assy	£18.59 £15.49
162	MO114369741/0 Available to backorder	Label	£1.84 £1.53
163	MO114369742/0 Available to backorder	Recoil Cover Label "Stiga"	£2.11 £1.76
