MC 3714 Q - 2010 - 223514153/M10 - Mountfield Chainsaw Housing Diagram

Description

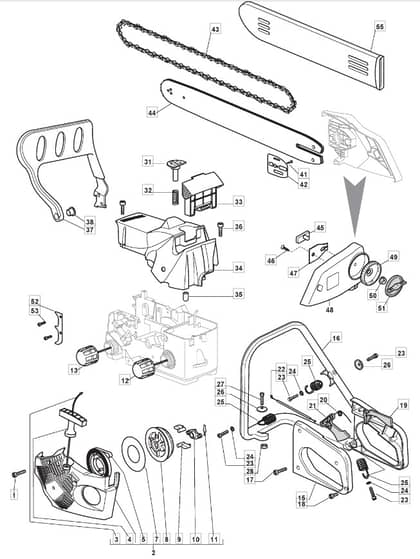

Mountfield MC 3714 Q Parts Diagram

Model Year - 2010

Model Type - P 382 S

Art.N - 223514153/M10

	Part No.	Details
3	MO3784030 Available to backorder	Starter Cord	£2.11 £1.76
7	MO3723640 Available to backorder	Disc For Starter Spring	£4.08 £3.40
8	MO3750130 Available to backorder	Starter Pulley	£4.37 £3.64
10	MO3750140 Available to backorder	Starter Hook Guide	£3.38 £2.82
19	MO3743597 Available to backorder	Safety Lever	£1.70 £1.42
20	MO1L3654440/1 Available to backorder	Molla Leva Accel. E Sicurezza 360-41	£2.82 £2.35
21	MO3743587 Available to backorder	Throttle Lever For Cable	£3.52 £2.93
24	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
25	MO3654400 Available to backorder	Spring	£6.67 £5.56
27	MO2135040 Available to backorder	Screw	£1.38 £1.15
28	MO2432040 Available to backorder	Nut	£1.33 £1.11
31	MO3750440 Available to backorder	Air Purge Button	£3.49 £2.91
32	MO3654430 Available to backorder	Spring	£1.49 £1.24
35	MO3750450 Available to backorder	Air Purge Cap Button	£2.48 £2.07
36	MO2123030 Available to backorder	Screw	£1.33 £1.11
37	MO4563770 Available to backorder	Hand Guard	£26.88 £22.40
42	MO323311002/0 Available to backorder	Bar Plate	£5.65 £4.71
43	5043 In stock	Chain 14Inch	£9.54 £7.95
44	OR140SDEA074 In stock	Bar 14Inch	£19.42 £16.18
45	MO323796003/0 Available to backorder	Chain Tightener Block	£3.92 £3.27
46	MO2123060 Available to backorder	Screw	£1.33 £1.11
49	MO323250000/0 Available to backorder	Ring Nut	£3.52 £2.93
50	MO2670270 Available to backorder	Nut	£2.82 £2.35
51	MO323593501/0 Available to backorder	Knob	£5.76 £4.80
52	MO323026000/0 Available to backorder	Spike	£7.12 £5.93
55	MO4181297 Available to backorder	Chain Cover 14Inch	£2.18 £1.82
