MC 3516 - 2008 - 202016003/MO8 - Mountfield Chainsaw Engine Diagram

Description

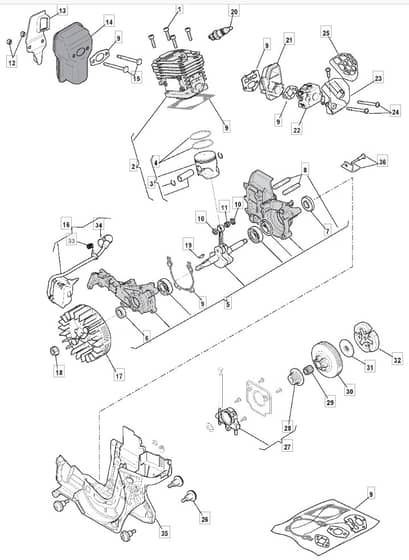

Mountfield MC 3516 Parts Diagram

Model Year - 2008

Model Type - P 352

Art.N - 202016003/MO8

	Part No.	Details
2	MO183070002/0 Available to backorder	Cylinder - Piston Ass'Y	£88.00 £73.33
3	MO183590002/0 Available to backorder	Piston Assy	£43.63 £36.36
4	MO183303509/0 Available to backorder	Piston Ring	£8.18 £6.82
6	MO119035154/0 Available to backorder	Seal Ring	£2.11 £1.76
9	MO183303508/0 Available to backorder	Cilynder Gasket Assy	£33.79 £28.16
11	MO123235002/0 Available to backorder	Needle Bearing	£4.08 £3.40
12	MO2432040 Available to backorder	Nut	£1.33 £1.11
14	MO183740001/0 Available to backorder	Muffler Assy	£61.38 £51.15
17	MO183880003/0 Available to backorder	Flywheel Ass.Y	£24.18 £20.15
18	MO112154200/0 Available to backorder	Nut	£1.70 £1.42
20	8210 In stock	Spark Plug	Was £2.36 £1.97 Special Price £1.19 £0.99
21	MO123073504/0 Available to backorder	Intake Manifold	£4.93 £4.11
22	MO123054017/0 Available to backorder	Carburetor	£50.96 £42.47
28	MO118550606/0 Available to backorder	Worm	£2.69 £2.24
29	MO123235001/0 Available to backorder	Needle Bearing	£4.78 £3.98
30	MO118550604/0 Available to backorder	Clutch Drum Assy	£18.02 £15.02
31	MO123657008/0 Available to backorder	Washer	£1.84 £1.53
33	MO3657050 Available to backorder	Spark Plug Spring	£3.92 £3.27
34	MO3748880 Available to backorder	Spark Plug Cap	£2.03 £1.69
