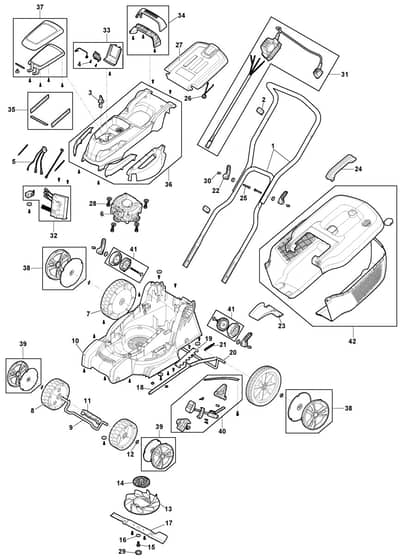

MC 340 Li - 2020-2021 - 293345064/MC - Mountfield Rotary Mower Main Assembly Diagram

MC 340 Li - 2020-2021 - 293345064/MC - Mountfield Rotary Mower Main Assembly Diagram
MC 340 Li - 2020-2021 - 293345064/MC - Mountfield Rotary Mower Main Assembly Diagram

Description

Mountfield MC 340 Li Parts Diagram

Model Year - 2020-2021

Model Type - E 340 Li 40 P

Art.N - 293345064/MC

Ref. Img. Part No. Details
  1 Handle Kit
Handle Kit
MO118811022/0 Out of stock
Handle Kit
£33.86 £28.22

  2 Hook
Hook
MO118802664/0 Out of stock
Hook
£1.28 £1.07

  3 Safety Key
Safety Key
MO118810971/0 Out of stock
Safety Key
£5.28 £4.40

  4 Screw
Screw
MO118810727/0 Out of stock
Screw
£1.21 £1.01

  5 Cable Assy
Cable Assy
MO118811021/0 Out of stock
Cable Assy
£14.03 £11.69

  6 Electric Motor
Electric Motor
MO118810982/0 Out of stock
Electric Motor
£104.29 £86.91

  7 Rear Wheel
Rear Wheel
MO118810983/0 Out of stock
Rear Wheel
£16.87 £14.06

  8 Front Wheel
Front Wheel
MO118810984/0 Out of stock
Front Wheel
£10.84 £9.03

  9 Front Wheels Axle
Front Wheels Axle
MO118810985/0 Out of stock
Front Wheels Axle
£5.42 £4.52

  10 Chassis
Chassis
MO118810986/0 Out of stock
Chassis
£59.59 £49.66

  11 Front Handle
Front Handle
MO118810987/0 Out of stock
Front Handle
£2.44 £2.03

  12 Washer
Washer
MO112604903/0 In stock
Washer
£1.63 £1.36

  13 Motor Fan
Motor Fan
MO118810988/0 Out of stock
Motor Fan
£5.54 £4.62

  14 Blade Support
Blade Support
MO118810989/0 Out of stock
Blade Support
£5.63 £4.69

  15 Screw
Screw
MO112793301/0 Out of stock
Screw
£1.49 £1.24

  16 Washer
Washer
MO122671651/0 In stock
Washer
£1.90 £1.58

  17 Blade
Blade
MO181004469/0 Out of stock
Blade
£14.39 £11.99

  18 Height Adjustment Rod
Height Adjustment Rod
MO118810990/0 Out of stock
Height Adjustment Rod
£7.72 £6.43

  19 Flange
Flange
MO118810991/0 Out of stock
Flange
£3.38 £2.82

  20 Rear Wheels Axle
Rear Wheels Axle
MO118810992/0 Out of stock
Rear Wheels Axle
£8.27 £6.89

  21 Spring
Spring
MO118810993/0 Out of stock
Spring
£2.84 £2.37

  22 Yellow Knob
Yellow Knob
MO118810994/0 Out of stock
Yellow Knob
£5.82 £4.85

  23 Conveyor
Conveyor
MO118810995/0 Out of stock
Conveyor
£5.15 £4.29

  24 Grasscatcher Handle
Grasscatcher Handle
MO118810996/0 Out of stock
Grasscatcher Handle
£4.07 £3.39

  25 Cup Square Bolt
Cup Square Bolt
MO112815255/0 Out of stock
Cup Square Bolt
£1.36 £1.13

  26 Spring
Spring
MO118810997/0 Out of stock
Spring
£1.75 £1.46

  27 Stone Guard
Stone Guard
MO118810998/0 Out of stock
Stone Guard
£7.18 £5.98

  28 Screw
Screw
MO9959-0616-16 Out of stock
Screw
£1.49 £1.24

  29 Blade Hub Cover
Blade Hub Cover
MO118810999/0 Out of stock
Blade Hub Cover
£1.49 £1.24

  30 Pin
Pin
MO118811000/0 Out of stock
Pin
£2.98 £2.48

  31 Dead Hand Switch Assy
Dead Hand Switch Assy
MO118811040/0 Out of stock
Dead Hand Switch Assy
£37.93 £31.61

  32 Pcb And Switch Kit
Pcb And Switch Kit
MO118811043/0 Out of stock
Pcb And Switch Kit
£88.25 £73.54

  33 Battery Housing Kit
Battery Housing Kit
MO118811025/0 Out of stock
Battery Housing Kit
£8.40 £7.00

  34 Handle
Handle
MO118811059/0 Out of stock
Handle
£7.03 £5.86

  35 Air Filters Kit
Air Filters Kit
MO118811049/0 Out of stock
Air Filters Kit
£5.02 £4.18

  36 Aesthetic Covers Kit
Aesthetic Covers Kit
MO118811060/0 Out of stock
Aesthetic Covers Kit
£37.93 £31.61

  37 Battery Cover Kit
Battery Cover Kit
MO118811061/0 Out of stock
Battery Cover Kit
£13.20 £11.00

  38 Rear Hub Cups Kit (Rh+Lh)
Rear Hub Cups Kit (Rh+Lh)
MO118811044/0 Out of stock
Rear Hub Cups Kit (Rh+Lh)
£9.68 £8.07

  39 Front Hub Cups Kit (Rh+Lh)
Front Hub Cups Kit (Rh+Lh)
MO118811045/0 Out of stock
Front Hub Cups Kit (Rh+Lh)
£9.61 £8.01

  40 Height Adjust Kit
Height Adjust Kit
MO118811046/0 Out of stock
Height Adjust Kit
£29.53 £24.61

  41 Joint Kit (Rh+Lh)
Joint Kit (Rh+Lh)
MO118811047/0 Out of stock
Joint Kit (Rh+Lh)
£12.46 £10.38

  42 Upper.Lower Grasscatcher Kit
Upper.Lower Grasscatcher Kit
MO118811048/0 Out of stock
Upper.Lower Grasscatcher Kit
£62.30 £51.92


Description

Mountfield MC 340 Li Parts Diagram

Model Year - 2020-2021

Model Type - E 340 Li 40 P

Art.N - 293345064/MC
