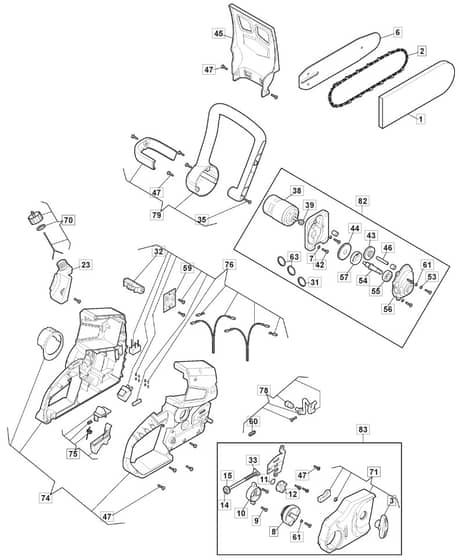

MC 24 Li - 2018-2019 - 274100123/M18 - Mountfield Main Assembly Diagram

Part No. mc_24_li_274100123_m18_main_assembly-group
MC 24 Li - 2018-2019 - 274100123/M18 - Mountfield Main Assembly Diagram
MC 24 Li - 2018-2019 - 274100123/M18 - Mountfield Main Assembly Diagram

Description

Mountfield MC 24 Li Parts Diagram

Model Year - 2018-2019

Model Type - CS 24 Li

Art.N - 274100123/M18

Ref. Img. Part No. Details
  1 Chain Cover
Chain Cover
MO323085000/0
Available to backorder
Chain Cover
£25.62 £21.35

  2 Chain 10
Chain 10
6056
In stock
Chain 10"-3.8"-0.050"-40E
£8.17 £6.81

  6 Guide Bar 10
Guide Bar 10
MO123900360/0
Available to backorder
Guide Bar 10"-3.8"-0.050"
£23.95 £19.96

  7 Grower
Grower
MO112581500/0
Available to backorder
Grower
£1.55 £1.29

  8 Knob
Knob
MO118803434/0
Available to backorder
Knob
£6.19 £5.16

  9 Screw
Screw
MO112727810/0
Available to backorder
Screw
£1.55 £1.29

  11 Seeger
Seeger
MO112608500/0
Available to backorder
Seeger
£1.70 £1.42

  14 Gear Shaft
Gear Shaft
MO118810613/0
Available to backorder
Gear Shaft
£2.82 £2.35

  15 Gear
Gear
MO118803297/0
Available to backorder
Gear
£1.33 £1.11

  23 Oil Tank
Oil Tank
MO118810591/0
Available to backorder
Oil Tank
£3.92 £3.27

  31 Ring
Ring
MO118810651/0
Available to backorder
Ring
£1.33 £1.11

  33 Plate
Plate
MO118810585/0
Available to backorder
Plate
£1.70 £1.42

  39 Gear
Gear
MO118810587/0
Available to backorder
Gear
£5.34 £4.45

  43 Gear
Gear
MO118810622/0
Available to backorder
Gear
£5.47 £4.56

  44 Gear
Gear
MO118810623/0
Available to backorder
Gear
£6.77 £5.64

  45 Guard
Guard
MO118810590/0
Available to backorder
Guard
£5.76 £4.80

  46 Shaft
Shaft
MO118810582/0
Available to backorder
Shaft
£3.25 £2.71

  47 Screw
Screw
MO112728523/0
Available to backorder
Screw
£1.55 £1.29

  54 Shaft
Shaft
MO118810620/0
Available to backorder
Shaft
£5.92 £4.93

  55 Bearing
Bearing
MO118804136/0
Available to backorder
Bearing
£5.65 £4.71

  56 Gear Box Cover
Gear Box Cover
MO118810578/0
Available to backorder
Gear Box Cover
£11.95 £9.96

  57 Cam
Cam
MO118810588/0
Available to backorder
Cam
£2.94 £2.45

  70 White Oil Cap Assy
White Oil Cap Assy
MO118810641/0
Available to backorder
White Oil Cap Assy
£2.24 £1.87

  70 Black Oil Cap Assy
Black Oil Cap Assy
MO118810608/0
Available to backorder
Black Oil Cap Assy
£2.69 £2.24

  71 Black Side Cover
Black Side Cover
MO118810603/0
Available to backorder
Black Side Cover
£10.37 £8.64

  71 White Side Cover
White Side Cover
MO118810642/0
Available to backorder
White Side Cover
£10.37 £8.64

  75 Black Switch Assy
Black Switch Assy
MO118810605/0
Available to backorder
Black Switch Assy
£5.06 £4.22

  75 White Switch Assy
White Switch Assy
MO118810646/0
Available to backorder
White Switch Assy
£5.06 £4.22

  76 Pcb Components
Pcb Components
MO118810606/0
Available to backorder
Pcb Components
£74.62 £62.18

  79 Handle Assy
Handle Assy
MO118810609/0
Available to backorder
Handle Assy
£14.86 £12.38

  83 Clutch Cover Assy. Grey
Clutch Cover Assy. Grey
MO118810756/0
Available to backorder
Clutch Cover Assy. Grey
£27.25 £22.71
