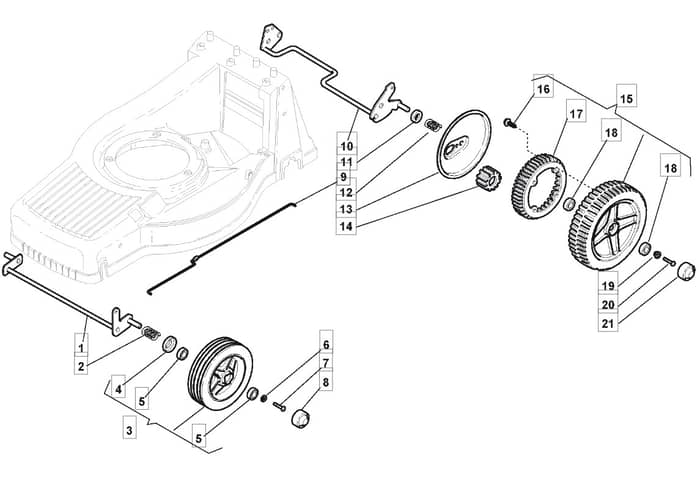

MB532 SB - 2005 - 12-9686-90 - Mountfield Rotary Mower Wheels Diagram

Name: MB532 SB - 2005 - 12-9686-90 - Mountfield Rotary Mower Wheels Diagram
SKU: mb532_sb_12_9686_90_wheels-group
Price: 1.16 GBP
Availability: InStock

Part No. mb532_sb_12_9686_90_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MB532 SB - 2005 - 12-9686-90 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield MB532 SB Parts Diagram

Product Name - MB 532 SB

Model Year - 2005

Model Type - TU 554 TR

Art.N - 12-9686-90

	Part No.	Details
2	MO122430210/0 Available to backorder	Bearing	£1.70 £1.42
3	MO381007363/0 Available to backorder	Wheel	£81.66 £68.05
4	MO322160522/0 Available to backorder	Dust Cover	£3.52 £2.93
5	MO119216039/0 Available to backorder	Bearing	£4.08 £3.40
6	MO112521460/0 Available to backorder	Washer	£1.40 £1.17
8	MO322110379/0 In stock	Hub Cap Black	Was £11.69 £9.74 Special Price £4.27 £3.56
11	MO122170810/0 Available to backorder	Spacer	£3.66 £3.05
12	MO122430215/0 Available to backorder	Spring	£3.25 £2.71
13	MO322600127/0 Available to backorder	Protection. Wheel	£10.99 £9.16
14	MO122570126/0 In stock	Pinion	£15.07 £12.56
15	MO381007368/0 Available to backorder	Wheel	£102.06 £85.05
16	MO112728210/0 In stock	Screw	£1.39 £1.16
17	MO322120108/0 Available to backorder	Wheels Crown	£11.70 £9.75
18	MO119216038/0 Available to backorder	Bearing	£5.92 £4.93
19	MO122671655/0 Available to backorder	Washer	£6.77 £5.64
20	MO112735592/0 Available to backorder	Screw	£1.97 £1.64
21	MO322110380/0 Available to backorder	Hub Cap Black Grey	£2.82 £2.35
