MB482 SH - 2005-2007 - 12-5604-92 - Mountfield Rotary Mower Lower Handle Diagram

Description

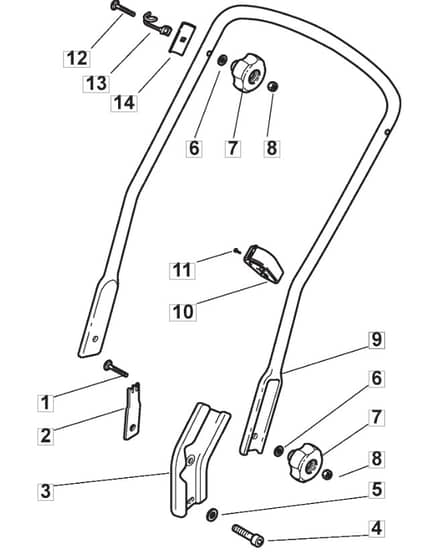

Mountfield MB482 SH Parts Diagram

Product Name - MB 482 SH

Model Year - 2005-2007

Model Type - TU 504 TR

Art.N - 12-5604-92

	Part No.	Details
2	MO322551635/0 Available to backorder	Handle Clamp Fix Plate	£4.13 £3.44
3	MO322778405/0 Available to backorder	Support	£23.89 £19.91
4	MO112760515/0 Available to backorder	Screw	£1.63 £1.36
6	MO112521350/0 In stock	Washer	£1.55 £1.29
7	MO322399810/0 In stock	Black Knob	£8.29 £6.91
8	MO112361005/0 Available to backorder	Nut	£4.24 £3.53
10	MO322192001/0 Available to backorder	Clamp	£1.63 £1.36
11	MO112728706/0 In stock	Screw	£1.60 £1.33
12	MO112820655/0 In stock	Screw	£1.39 £1.16
13	MO122430311/0 In stock	Starting Rope Guide Spring	£6.90 £5.75
14	MO322545137/0 Available to backorder	Handle. Upper Part	£1.63 £1.36
