MB482 SB - 2005-2007 - 12-5686-92 - Mountfield Rotary Mower Deck Diagram

Description

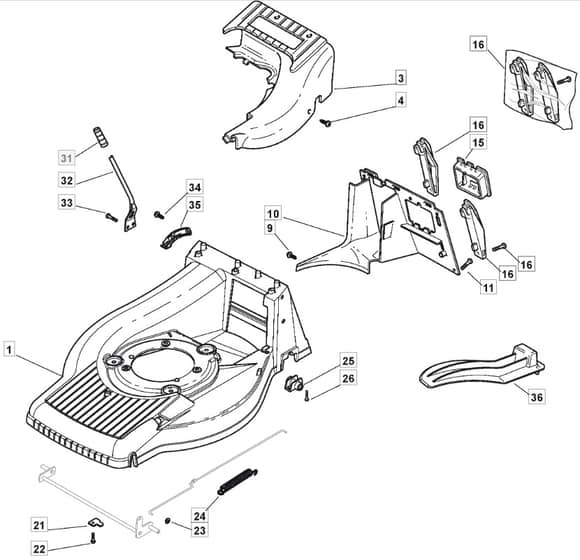

Mountfield MB482 SB Parts Diagram

Product Name - MB 482 SB

Model Year - 2005-2007

Model Type - TU 504 TR

Art.N - 12-5686-92

	Part No.	Details
10	MO322108277/0 In stock	Rear Conveyor Assy	£49.26 £41.05
15	MO322109531/0 Available to backorder	Battery Cover	£50.70 £42.25
16	MO381008658/1 Available to backorder	Grassbox Support Outfit	£17.45 £14.54
23	MO112604898/0 Available to backorder	Crown Fastener	£1.63 £1.36
24	MO122446181/0 Available to backorder	Spring	£8.00 £6.67
25	MO322785153/0 In stock	Gear Box Support	£15.62 £13.02
26	MO112735664/0 In stock	Screw	£1.39 £1.16
31	MO322399808/0 Available to backorder	Knob	£2.40 £2.00
33	MO112735661/0 Available to backorder	Screw	£1.63 £1.36
34	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
35	MO322735563/0 In stock	Sector. Height Adjustment	£14.99 £12.49
