MB 50 D - 2007 - 285621003/MO7 - Mountfield Brushcutter Recoil Starter Diagram

Name: MB 50 D - 2007 - 285621003/MO7 - Mountfield Brushcutter Recoil Starter Diagram
SKU: mb_50_d_285621003_mo7_recoil_starter-group
Price: 1.11 GBP
Availability: InStock

Part No. mb_50_d_285621003_mo7_recoil_starter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

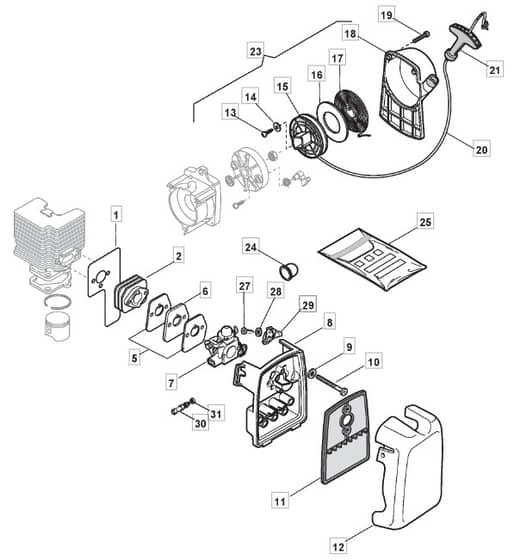

MB 50 D - 2007 - 285621003/MO7 - Mountfield Brushcutter Recoil Starter Diagram

Description

Mountfield MB 50 D Parts Diagram

Model Year - 2007

Model Type - STAR 55 D

Art.N - 285621003/MO7

	Part No.	Details
1	MO1L3724390/2 Available to backorder	Intake Manifold Gasket	£3.52 £2.93
2	MO3L3749740/1 Available to backorder	Intake Manifold	£13.38 £11.15
5	MO1L3724160/1 Available to backorder	Heat Block	£2.34 £1.95
7	MO123054014/1 Available to backorder	Carburetor	£123.10 £102.58
8	MO323781004/0 Available to backorder	Air Filter Holder	£6.78 £5.65
9	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
11	MO3781640 In stock	Air Filter	£7.46 £6.22
12	MO323090009/0 Available to backorder	Red Filter Cover	£50.05 £41.71
14	MO3613420 Available to backorder	Washer	£1.33 £1.11
15	MO4562440 Available to backorder	Starter Pulley	£15.34 £12.78
19	MO2135040 Available to backorder	Screw	£1.38 £1.15
21	MO3750067 Available to backorder	Starter Handle	£2.12 £1.77
24	MO3744870 Available to backorder	Primer Carburettor	£13.38 £11.15
25	MO4353150 In stock	Diaphragm Gasket Set	£11.42 £9.52
27	MO2123090 Available to backorder	Screw	£1.70 £1.42
28	MO2312180 Available to backorder	Washer	£1.33 £1.11
30	MO1L3630600/1 Available to backorder	Throttle Cable Adjuster	£5.76 £4.80
31	MO2412090 Available to backorder	Nut 6X4 Zinc-Plated	£1.39 £1.16
