MB 3501 - 2009 - 283820003/MO8 - Mountfield Brushcutter Gear Head Diagram

Name: MB 3501 - 2009 - 283820003/MO8 - Mountfield Brushcutter Gear Head Diagram
SKU: mb_3501_283820003_mo8_gear_head-group
Price: 1.11 GBP
Availability: InStock

Part No. mb_3501_283820003_mo8_gear_head-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MB 3501 - 2009 - 283820003/MO8 - Mountfield Brushcutter Gear Head Diagram

Description

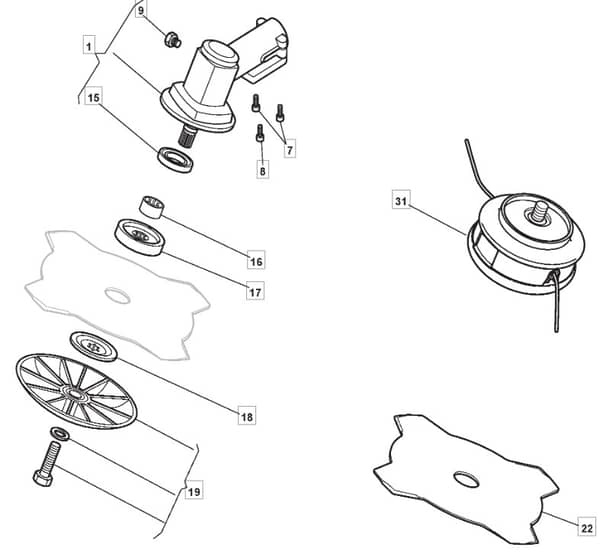

Mountfield MB 3501 Parts Diagram

Model Year - 2009

Model Type - BC 35

Art.N - 283820003/MO8

	Part No.	Details
7	MO2135050 Available to backorder	Screw	£1.33 £1.11
8	MO2653090 Available to backorder	Screw	£1.39 £1.16
15	MO3121170 Available to backorder	Oil Seal	£13.86 £11.55
16	MO1L3641700/1 Available to backorder	Use 3641700.1	£8.86 £7.38
17	MO3641640 Available to backorder	Upper Ring Nut	£10.06 £8.38
18	MO3612640 Available to backorder	Lower Ring Nut	£9.44 £7.87
22	MO4611880 In stock	4 Teeth Disck	£11.90 £9.92
31	MO3L4353240/1 In stock	Nylon Head [M8-Male Lh-Thread]	£29.46 £24.55
