MB 35 D - 2021-2022 - 283321073/M21 - Mountfield Brushcutter Handle Diagram

Description

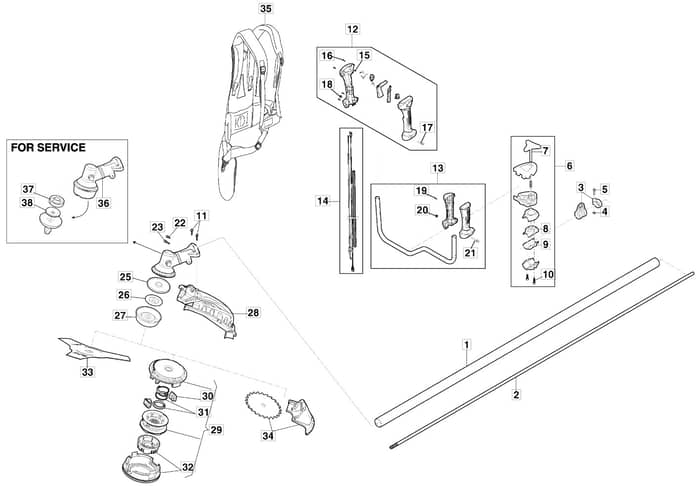

Mountfield MB 35 D Parts Diagram

Model Year - 2021-2022

Model Type - BC 536 D

Art.N - 283321073/M21

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118805081/0 Available to backorder	Transmission Pipe	£60.54 £50.45
2	MO118805086/0 Available to backorder	Drive Shaft	£40.82 £34.02
3	MO118804065/0 Available to backorder	Harness Support	£1.40 £1.17
5	MO112760475/0 Available to backorder	Screw	£1.97 £1.64
6	MO118803987/1 Available to backorder	Handle Support	£10.03 £8.36
8	MO118804072/0 Available to backorder	Upper Handgrip Support	£1.40 £1.17
9	MO118804075/0 Available to backorder	Lower Handgrip Support	£1.40 £1.17
10	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
11	MO112728721/0 Available to backorder	Screw	£1.82 £1.52
12	MO118805117/0 Available to backorder	Right Handle Kit	£17.60 £14.67
13	MO118805118/0 Available to backorder	Left Handle Kit	£32.38 £26.98
14	MO118805119/0 In stock	Cables Kit	£11.27 £9.39
15	MO118810727/0 Available to backorder	Screw	£1.21 £1.01
16	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
19	MO112727356/0 Available to backorder	Screw	£1.87 £1.56
20	MO112154330/0 Available to backorder	Nut	£1.55 £1.29
21	MO2135120 Available to backorder	Screw	£1.40 £1.17
22	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
23	MO2132180 Available to backorder	Screw	£1.33 £1.11
25	MO118805562/0 Available to backorder	Upper Ring Nut	£5.64 £4.70
26	MO118805561/0 Available to backorder	Lower Ring Nut	£3.38 £2.82
27	MO118805560/0 Available to backorder	Stabilizer	£4.50 £3.75
28	MO118805346/0 Available to backorder	Safety Cover Assy	£17.04 £14.20
29	MO1911-9229-01 Available to backorder	Line Cutter Head	£26.27 £21.89
30	MO118804890/0 Available to backorder	Line Retainer	£5.35 £4.46
31	MO118805262/0 Available to backorder	Spring	£5.48 £4.57
32	MO118805264/0 Available to backorder	Cover + Knob	£11.12 £9.27
33	MO1911-9262-01 In stock	3 Teeth Disc	£9.30 £7.75
34	MO1911-9258-01 Available to backorder	24T Saw Blade Kit	£24.64 £20.53
35	MO1911-9259-01 Available to backorder	Double Harness	£58.54 £48.78
36	MO118805089/0 Available to backorder	Gear Case Assy	£122.46 £102.05
37	MO118805093/0 Available to backorder	Upper Flange	£9.16 £7.63
38	MO118805094/0 Available to backorder	Lower Ring Flange	£5.48 £4.57
