MB 35 - 2021-2022 - 283320073/M21 - Mountfield Brushcutter Engine Diagram

Description

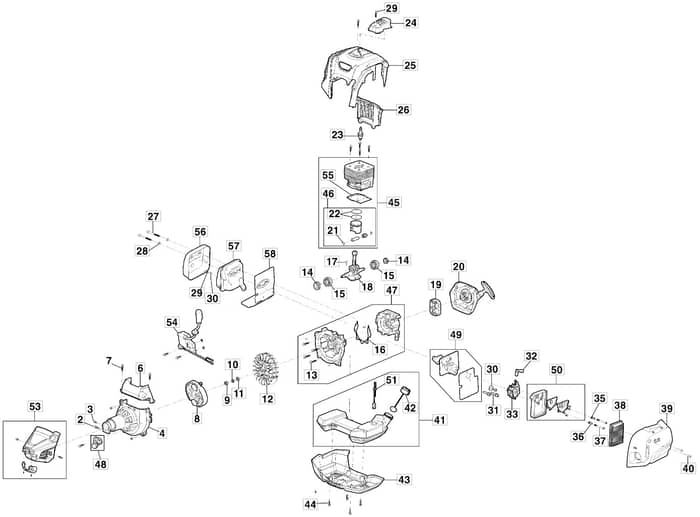

Mountfield MB 35 Parts Diagram

Model Year - 2021-2022

Model Type - BC 536

Art.N - 283320073/M21

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112728721/0 Available to backorder	Screw	£1.82 £1.52
4	MO118805131/0 Available to backorder	Transmission Support Assy	£85.87 £71.56
6	MO118805177/0 Available to backorder	Air Guide Cover	£5.12 £4.27
8	MO118805132/0 Available to backorder	Clutch Unit Assy	£42.23 £35.19
9	MO112155010/0 In stock	Nut	£2.12 £1.77
10	MO112583500/0 In stock	Grower	£1.55 £1.29
11	MO122671653/0 Available to backorder	Washer	£1.55 £1.29
12	MO118805178/0 Available to backorder	Flywheel	£23.03 £19.19
13	MO2135050 Available to backorder	Screw	£1.33 £1.11
14	MO118801188/0 Available to backorder	Seal Ring	£1.33 £1.11
15	MO3112030 Available to backorder	Ball Bearing	£14.92 £12.43
16	MO118804076/0 Available to backorder	Crankcase Gasket	£1.40 £1.17
17	MO3151050 Available to backorder	Flywheel Key	£6.76 £5.63
18	MO118805179/0 Available to backorder	Crankshaft Assy	£47.87 £39.89
19	MO118805135/0 Available to backorder	Starter Cup	£3.52 £2.93
20	MO118805136/0 Available to backorder	Starter Assy	£23.92 £19.93
21	MO118804059/0 Available to backorder	Circlip	£1.20 £1.00
22	MO118805180/0 Available to backorder	Piston Ring	£2.95 £2.46
23	2134 In stock	Spark Plug	£2.26 £1.88
24	MO118805167/0 Available to backorder	Spark Plug Cover	£1.97 £1.64
25	MO118805557/0 Available to backorder	Cylinder Cover. Grey	£16.82 £14.02
26	MO118805558/0 Available to backorder	Guard	£4.22 £3.52
27	MO118801180/0 Available to backorder	Screw	£1.69 £1.41
28	MO2312010 Available to backorder	Flat Washer	£1.40 £1.17
29	MO6981117 Available to backorder	Screw	£1.33 £1.11
31	MO2132550 Available to backorder	Screw	£1.40 £1.17
32	MO118805181/0 Available to backorder	Choke Lever	£1.33 £1.11
33	MO118805559/0 Available to backorder	Carburetor	£61.60 £51.33
35	MO9699-0087-02 In stock	Washer	£2.12 £1.77
36	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
37	MO2135200 Available to backorder	Screw	£1.38 £1.15
38	MO118805140/0 Available to backorder	Paper Filter	£9.43 £7.86
39	MO118805183/0 Available to backorder	Air Filter Cover	£4.22 £3.52

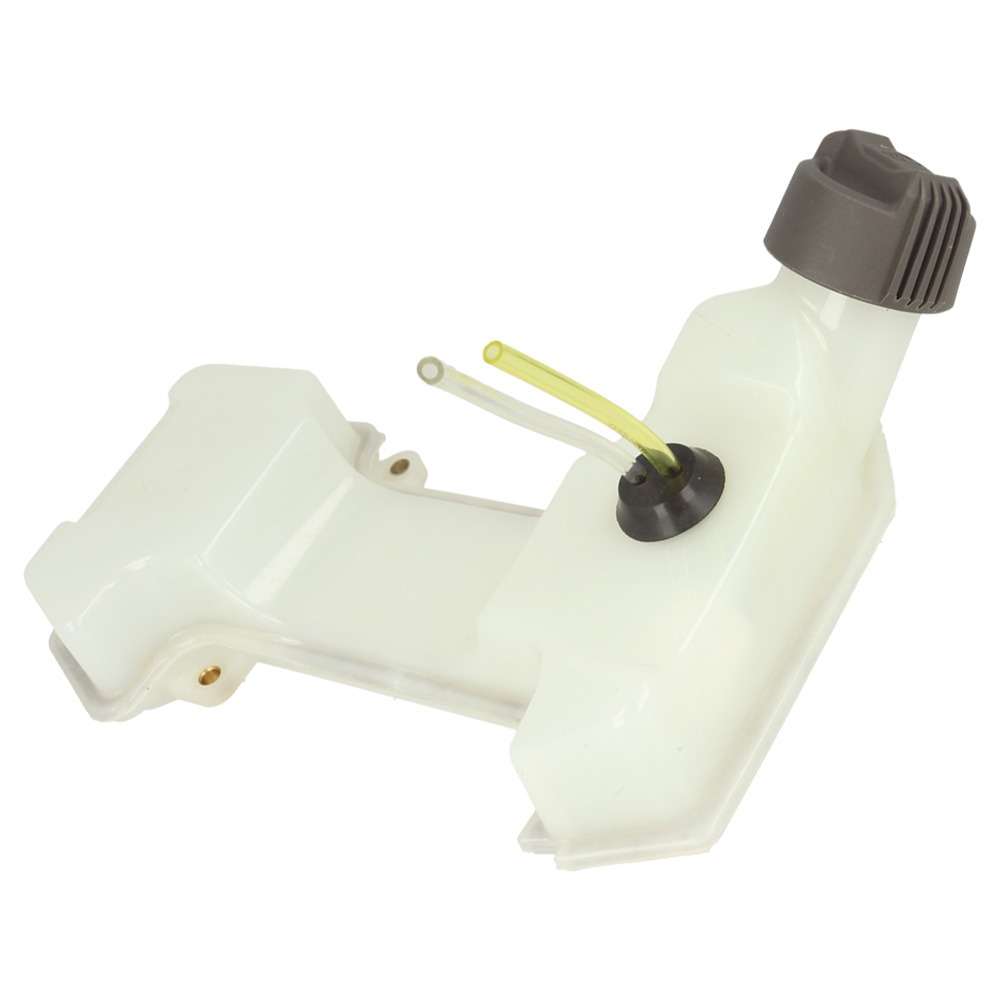

41	MO118805184/0 Available to backorder	Fuel Tank Assy	£22.52 £18.77
42	MO118805142/0 In stock	Fuel Tank Cap Assy	£4.50 £3.75
43	MO118805185/0 Available to backorder	Fuel Tank Lower Cover	£5.92 £4.93
44	MO112728124/0 Available to backorder	Screw	£1.55 £1.29

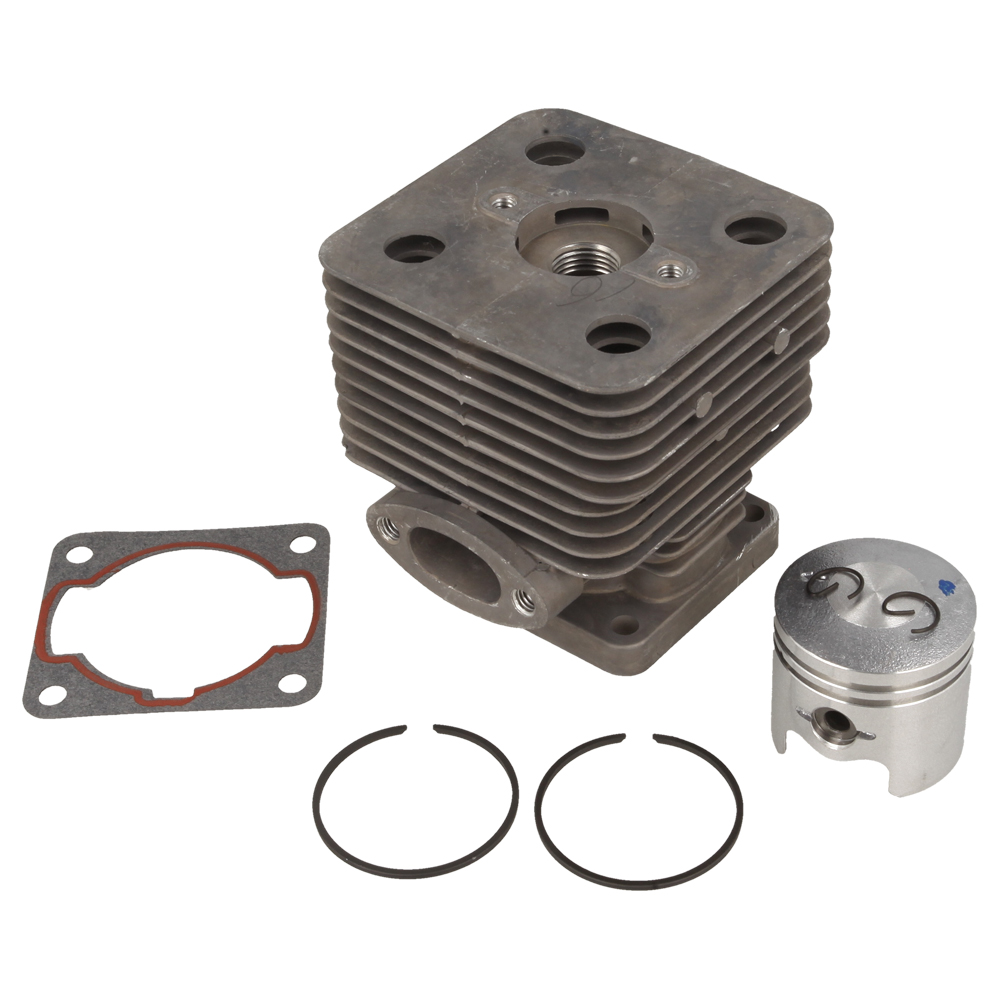

45	MO118805195/0 Available to backorder	Cylinder-Piston Kit	£81.66 £68.05
46	MO118805196/0 Available to backorder	Piston Kit	£22.31 £18.59
47	MO118805197/0 Available to backorder	Crankcase Kit	£38.00 £31.67

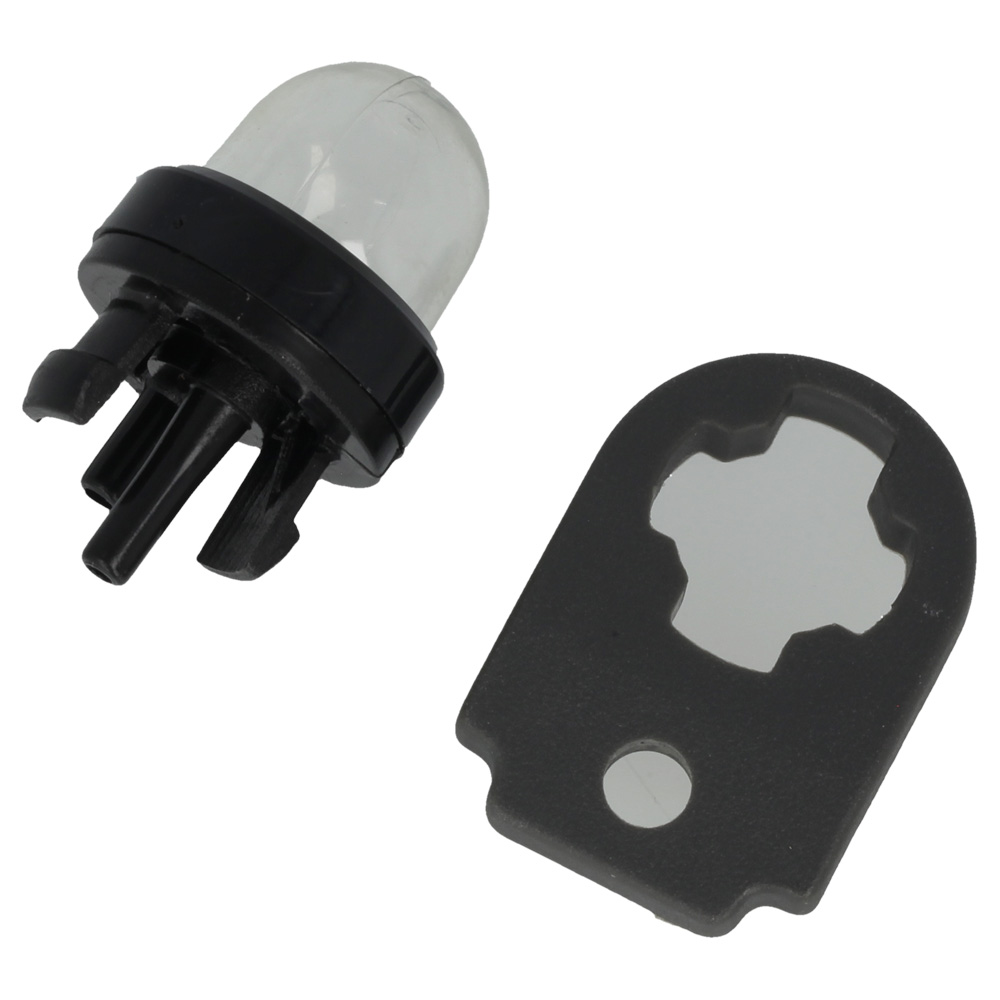

48	MO118805198/0 Available to backorder	Primer Bulb Kit	Was £10.36 £8.63 Special Price £6.49 £5.41
49	MO118805199/0 Available to backorder	Intake Manifold Kit	£13.51 £11.26
50	MO118805200/0 Available to backorder	Air Filter Base Kit	£9.37 £7.81
51	MO118805201/0 Available to backorder	Fuel Pipe Assy	£10.98 £9.15
53	MO118805203/0 Available to backorder	Transmission Support Cover Kit	£14.70 £12.25

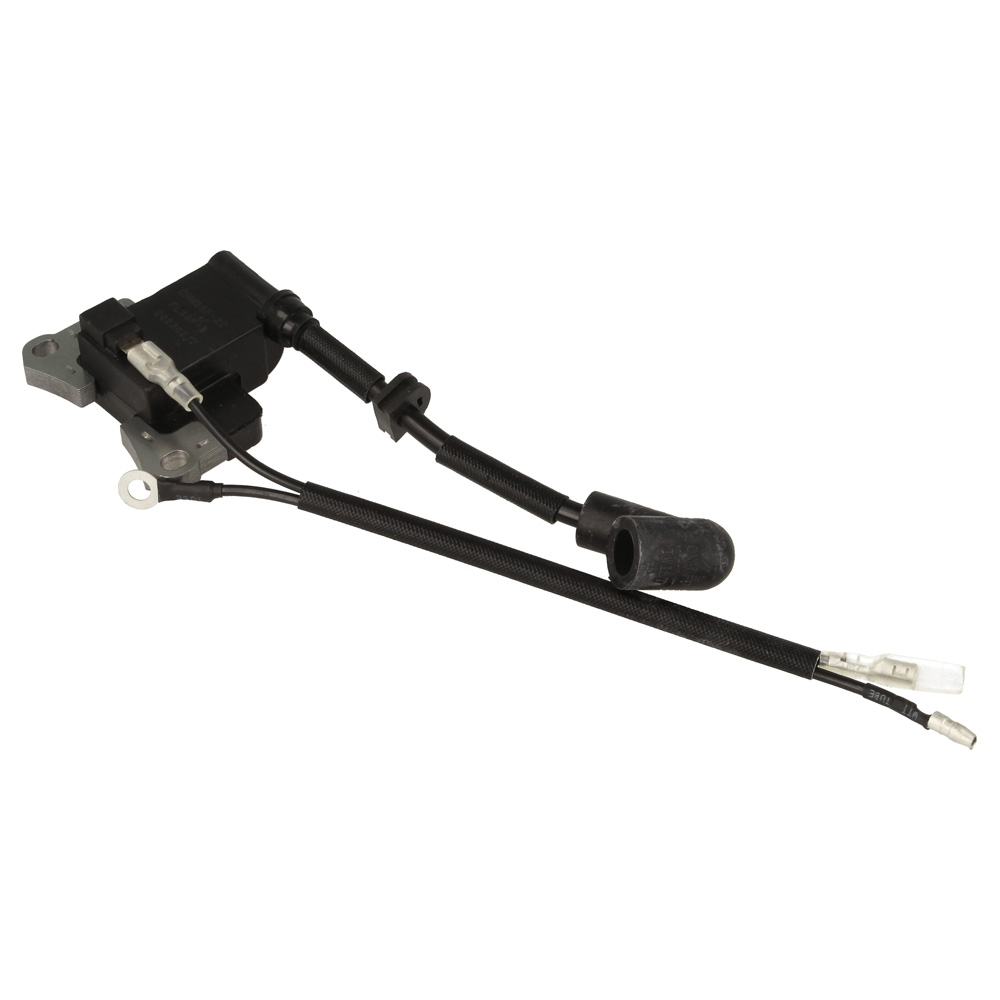

54	MO118805186/0 Available to backorder	Ignition Coil	£40.39 £33.66
55	MO118805191/0 Available to backorder	Cylinder Gasket	£1.33 £1.11
56	MO118805192/0 Available to backorder	Muffler Guard	£7.46 £6.22
57	MO118805193/0 Available to backorder	Muffler	£50.68 £42.23
58	MO118805194/0 Available to backorder	Sbc 636 Muffler Gasket	£7.88 £6.57
