MB 3302 - 2012-2016 - 280221003/M12 - Mountfield Brushcutter Gear Head Diagram

Description

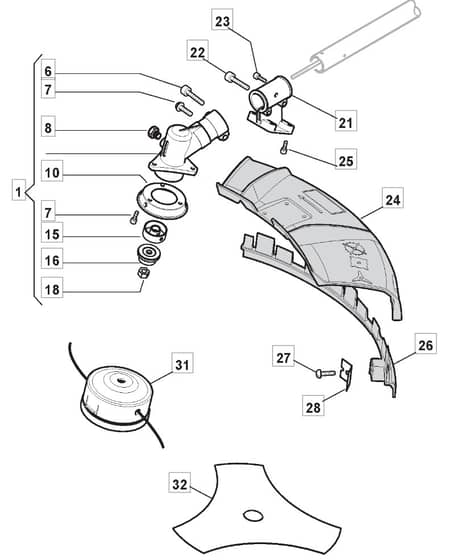

Mountfield MB 3302 Parts Diagram

Model Year - 2012-2016

Model Type - B 33 D

Art.N - 280221003/M12

	Part No.	Details
1	MO183820507/0 Available to backorder	Gear Case Assy	£88.69 £73.91
6	MO112727801/0 Available to backorder	Screw	£1.63 £1.36
7	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
8	MO112727794/0 Available to backorder	Screw	£1.39 £1.16
10	MO123670002/0 Available to backorder	Guard	£1.33 £1.11
15	MO123250002/0 Available to backorder	Upper Ring Nut	£5.65 £4.71
16	MO123250003/0 Available to backorder	Lower Ring Nut	£4.37 £3.64
18	MO123120015/0 Available to backorder	Nut	£1.63 £1.36
21	MO123784012/0 Available to backorder	Support	£8.00 £6.67
22	MO2135050 Available to backorder	Screw	£1.33 £1.11
23	MO2135180 Available to backorder	Screw	£1.40 £1.17
24	MO118801341/0 Available to backorder	Safety Cover. Black	£19.57 £16.31
25	MO9943-0516-16 In stock	Screw	£1.26 £1.05
27	MO112728099/1 Available to backorder	Screw	£1.63 £1.36
28	MO123311013/0 Available to backorder	Line Cutter Blade	£3.25 £2.71
31	MO118801124/0 In stock	Nylon Head	£12.50 £10.42
32	MO1911-9262-01 In stock	Blade 3 Teeth 1.4 X 255mm	£9.55 £7.96
