MB 3302 - 2012-2016 - 280221003/M12 - Mountfield Brushcutter Engine Diagram

Description

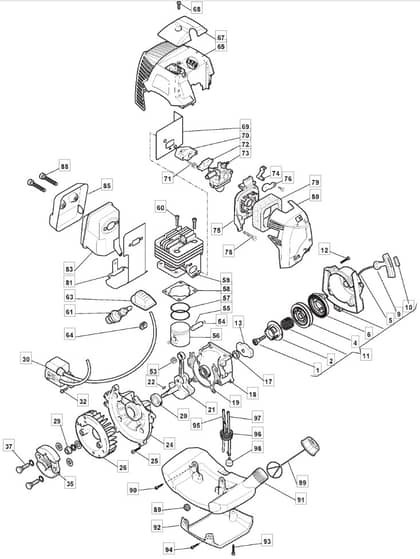

Mountfield MB 3302 Parts Diagram

Model Year - 2012-2016

Model Type - B 33 D

Art.N - 280221003/M12

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118801251/0 Available to backorder	Screw	£1.33 £1.11
2	MO118803975/0 Available to backorder	Hub	£3.24 £2.70
6	MO118804060/0 Available to backorder	Spring	£6.05 £5.04
11	MO118801262/0 Available to backorder	Starter Ass.Y Black	£28.01 £23.34
13	MO118801254/0 Available to backorder	Starter Cup Ass.Y	£4.78 £3.98
17	MO119035159/0 Available to backorder	Seal Ring	£1.33 £1.11
19	MO123280047/0 Available to backorder	Crankcase Gasket	£1.82 £1.52
20	MO3112240 Available to backorder	Ball Bearing	£10.14 £8.45
21	MO123020025/0 Available to backorder	Crankshaft	£45.04 £37.53
22	MO123072002/0 Available to backorder	Flywheel Key	£1.33 £1.11
24	MO123685027/0 Available to backorder	Crank Case	£19.99 £16.66
26	MO123880018/0 Available to backorder	Flywheel	£28.01 £23.34
29	MO112154200/0 Available to backorder	Nut	£1.69 £1.41
35	MO123430583/0 Available to backorder	Clutch Unit	£11.69 £9.74
37	MO123878058/0 Available to backorder	Screw	£1.82 £1.52
53	MO123235007/0 Available to backorder	Needle Bearing	£2.68 £2.23
54	MO123202009/0 Available to backorder	Circlip	£1.33 £1.11
55	MO123760007/0 Available to backorder	Piston Pin	£1.40 £1.17
56	MO123590008/0 Available to backorder	Piston	£9.28 £7.73

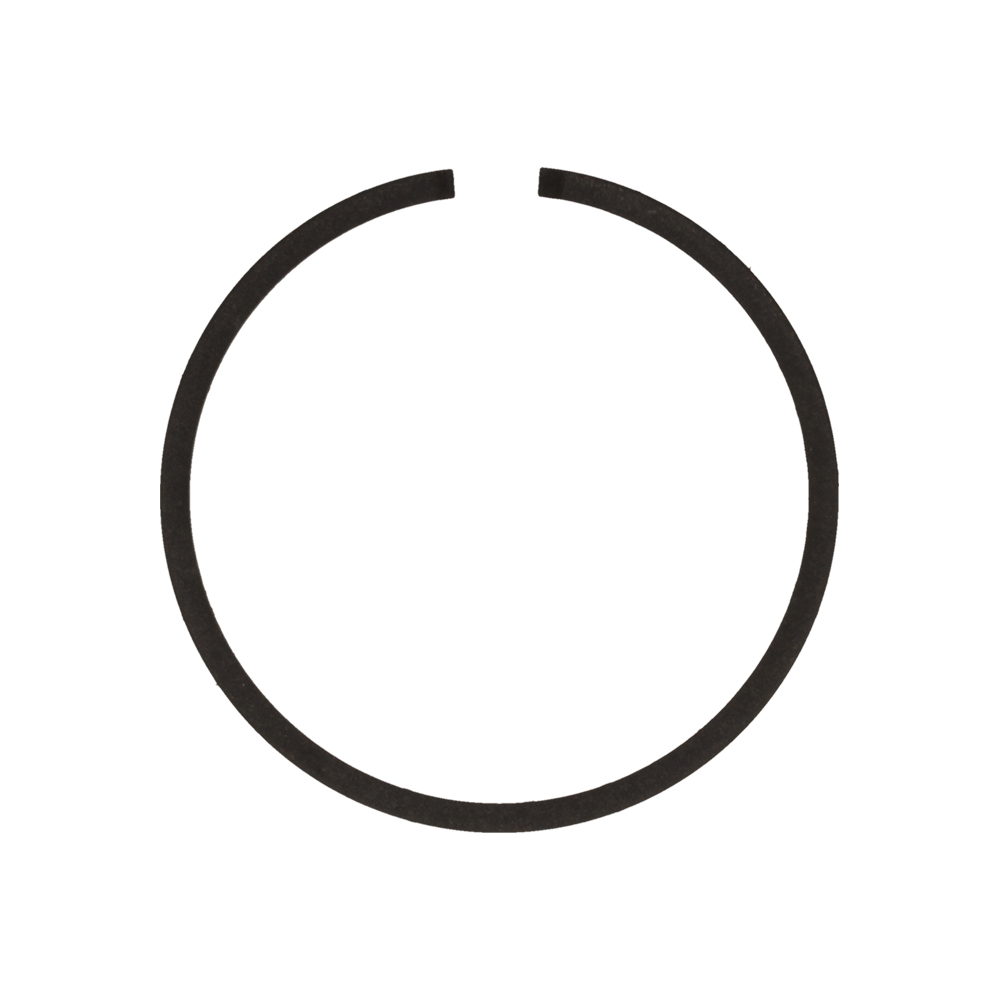

57	MO123204010/0 Available to backorder	Piston Ring	£2.53 £2.11

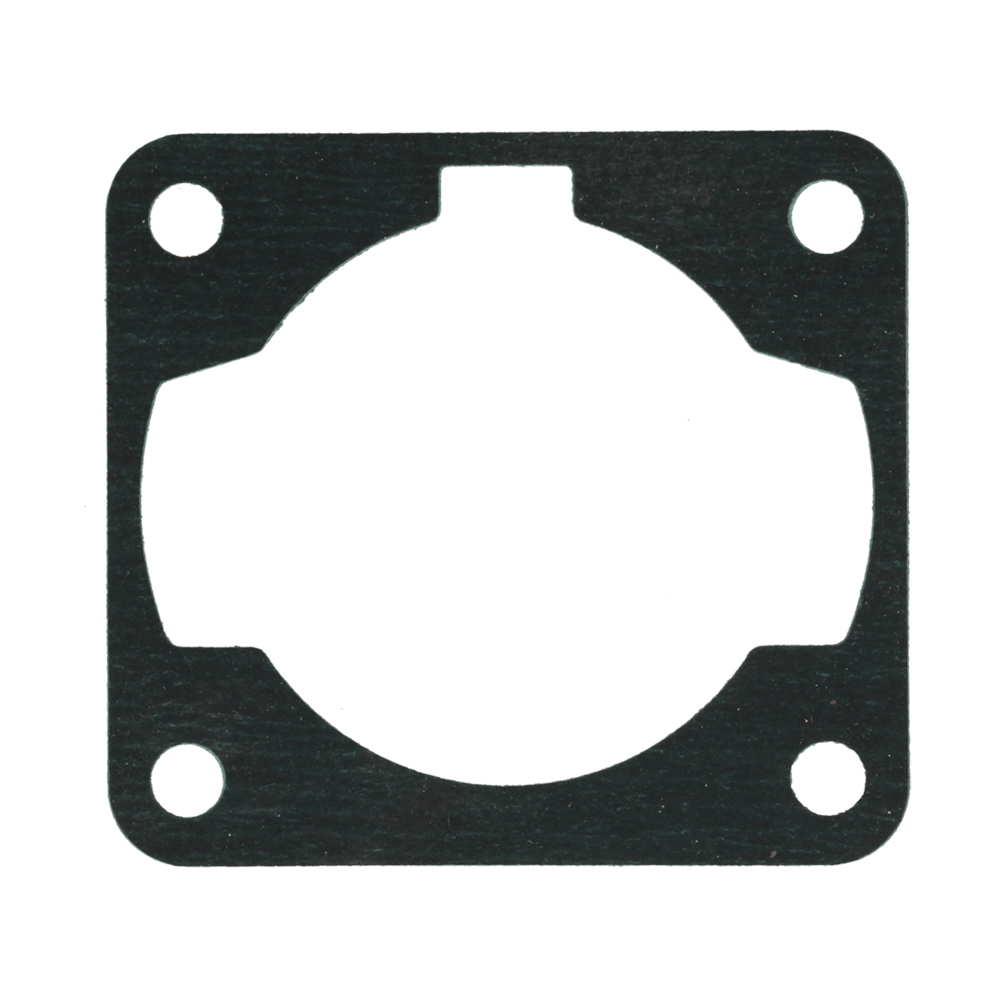

58	MO123280045/0 Available to backorder	Cylinder Gasket	£1.40 £1.17
59	MO123071024/0 Available to backorder	Cylinder	£39.42 £32.85
60	MO112760475/0 Available to backorder	Screw	£1.97 £1.64
61	2688 In stock	Spark Plug	Was £1.44 £1.20 Special Price £1.07 £0.89
63	MO118801258/0 Available to backorder	Spark Plug Cover	£4.37 £3.64
64	MO123275023/0 Available to backorder	Grommet	£1.40 £1.17
69	MO123280041/0 Available to backorder	Intake Manifold Gasket	£1.33 £1.11
70	MO123073509/0 Available to backorder	Intake Manifold	£4.08 £3.40
72	MO118801227/0 Available to backorder	Carburetor Gasket	£1.33 £1.11
73	MO123054025/1 Available to backorder	Carburetor	£42.23 £35.19
74	MO118801229/0 Available to backorder	Lever	£1.33 £1.11
76	MO123190000/0 Available to backorder	Shutter	£1.33 £1.11
79	MO123220011/0 In stock	Air Filter	£3.79 £3.16
80	MO118801298/0 Available to backorder	Filter Cover Red	£10.58 £8.82
81	MO118801267/0 Available to backorder	Muffler Gasket	£19.01 £15.84
83	MO183740022/0 Available to backorder	Muffler	£54.90 £45.75
85	MO118801256/0 Available to backorder	White Cover	£3.52 £2.93
88	MO9950-0570-12 Available to backorder	Screw	£2.96 £2.47
89	MO123280060/0 Available to backorder	Rubber Gasket	£1.40 £1.17
90	MO112788910/0 Available to backorder	Screw	£1.55 £1.29

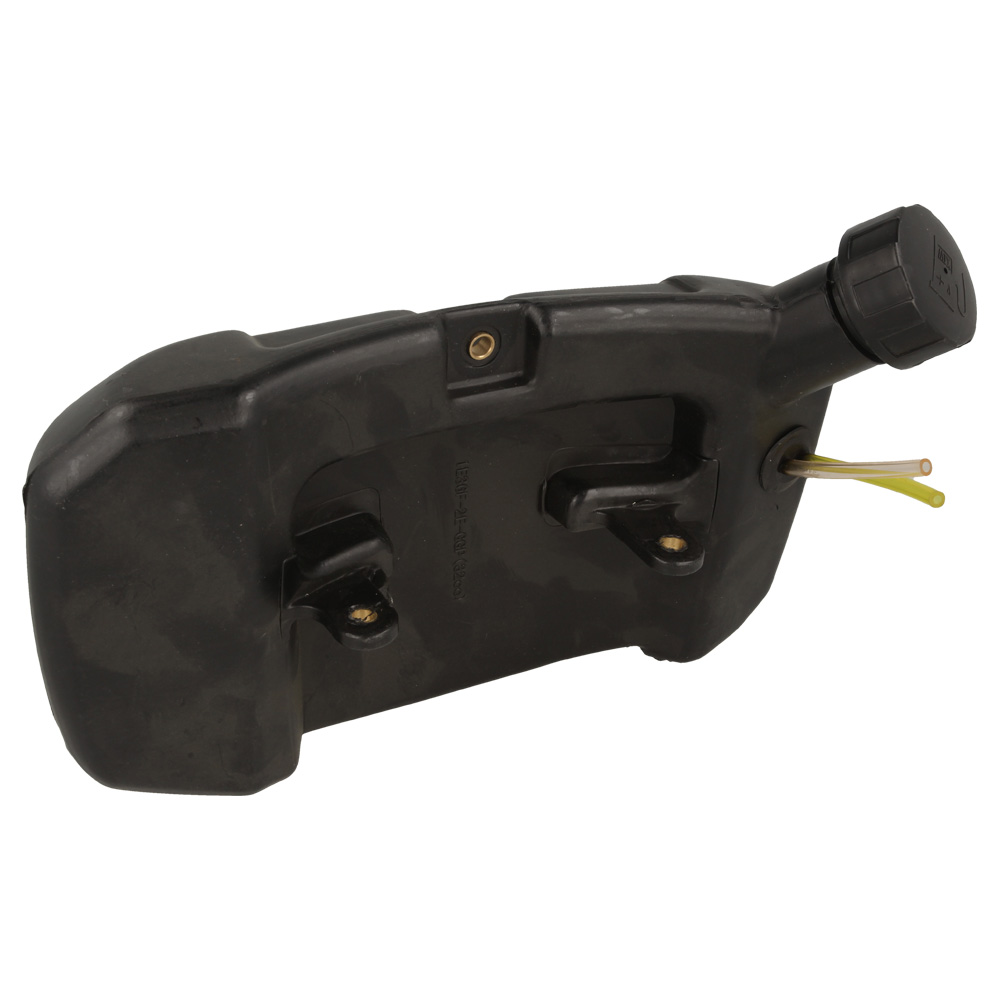

91	MO118801265/0 Available to backorder	Fuel Tank	£12.95 £10.79
92	MO118801266/0 Available to backorder	Lower Guard	£8.74 £7.28
93	MO2135030 Available to backorder	Screw	£1.40 £1.17
94	MO2135200 Available to backorder	Screw	£1.38 £1.15
95	MO118801319/0 In stock	Tube	£5.21 £4.34
96	MO118801318/0 In stock	Grommet	£1.33 £1.11
97	MO118801313/0 In stock	Fuel Line	£3.79 £3.16
98	MO183520005/0 In stock	Intake Filter	£3.38 £2.82
