MB 3201 - 2010 - 281520003/MO9 - Mountfield Brushcutter Gear Head Diagram

Name: MB 3201 - 2010 - 281520003/MO9 - Mountfield Brushcutter Gear Head Diagram
SKU: mb_3201_281520003_mo9_gear_head-group
Price: 1.11 GBP
Availability: InStock

Part No. mb_3201_281520003_mo9_gear_head-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MB 3201 - 2010 - 281520003/MO9 - Mountfield Brushcutter Gear Head Diagram

Description

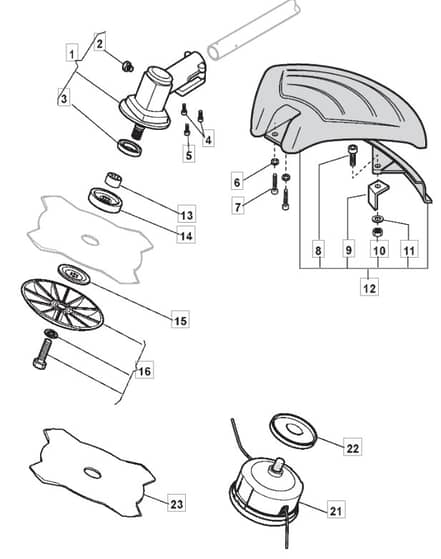

Mountfield MB 3201 Parts Diagram

Model Year - 2010

Model Type - BC 35 S

Art.N - 281520003/MO9

	Part No.	Details
3	MO3121170 Available to backorder	Oil Seal	£13.86 £11.55
4	MO2135050 Available to backorder	Screw	£1.33 £1.11
5	MO2653090 Available to backorder	Screw	£1.39 £1.16
8	MO2135030 Available to backorder	Screw	£1.40 £1.17
9	MO3615000 Available to backorder	Line Cutter Blade	£8.83 £7.36
10	MO112154330/0 In stock	Nut	£1.55 £1.29
11	MO2312150 Available to backorder	Washer	£1.33 £1.11
12	MO3L8563570/1 Available to backorder	Safety Cover Assy	£26.32 £21.93
13	MO1L3641700/1 Available to backorder	Use 3641700.1	£8.86 £7.38
14	MO3641640 Available to backorder	Upper Ring Nut	£10.06 £8.38
15	MO3612640 Available to backorder	Lower Ring Nut	£9.44 £7.87
21	MO1911-9228-01 In stock	2 Hedges Nylon Head	£24.77 £20.64
22	MO3614950 Available to backorder	Plate	£1.36 £1.13
23	MO4611880 In stock	Blade 4 Teeth 255mm	£11.90 £9.92
