MB 28D - 2006-2007 - 283121003/MO6 - Mountfield Brushcutter Gear Head Diagram

Description

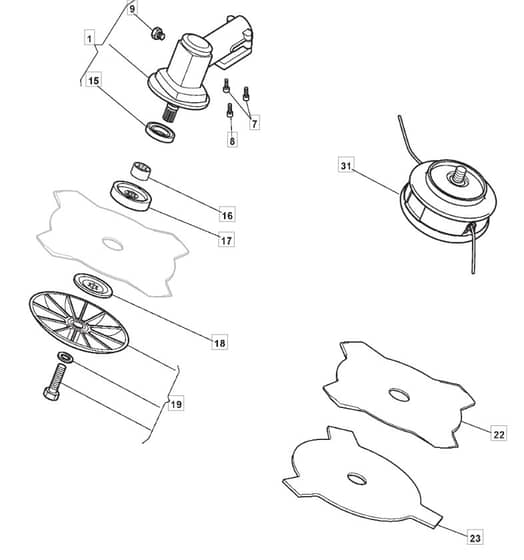

Mountfield MB 28D Parts Diagram

Model Year - 2006-2007

Model Type - STAR 31 D

Art.N - 283121003/MO6

	Part No.	Details
1	MO3L4252770/2 Available to backorder	Gear Case Assy Ø24	£122.46 £102.05
7	MO2135050 Available to backorder	Screw	£1.33 £1.11
8	MO2653090 Available to backorder	Screw	£1.39 £1.16
15	MO3121180 Available to backorder	Oil Seal	£4.08 £3.40
16	MO3660680 Available to backorder	Collar	£5.90 £4.92
17	MO3641650 Available to backorder	Upper Ring Nut	£12.64 £10.53
18	MO3612650 Available to backorder	Lower Ring Nut	£12.91 £10.76
22	MO4611880 In stock	4 Teeth Disck	£11.90 £9.92
23	MO6031172 Available to backorder	3 Teeth Disc	£9.07 £7.56
31	MO1911-9228-01 In stock	Profi Tap & Go Brushcutter Ggp03	£24.77 £20.64
