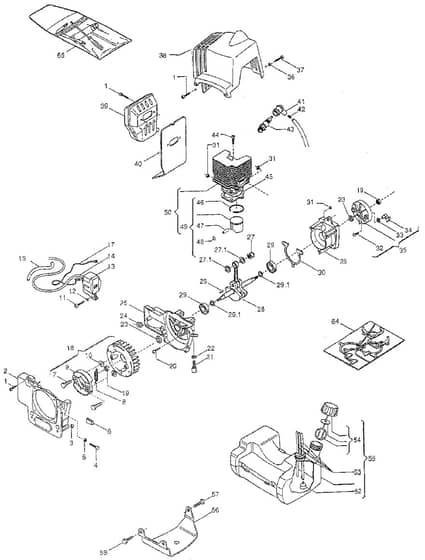

MB 28 - 2006 - 283120000/MOU - Mountfield Brushcutter Engine Diagram

Name: MB 28 - 2006 - 283120000/MOU - Mountfield Brushcutter Engine Diagram
SKU: mb_28_283120000_mou_engine-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MB 28 - 2006 - 283120000/MOU - Mountfield Brushcutter Engine Diagram

Description

Mountfield MB 28 Parts Diagram

Model Year - 2006

Model Type - VIP 30

Art.N - 283120000/MOU

Be the first to review this product

0 product questions

	Part No.	Details
1	MO2135040 Available to backorder	Screw	£1.38 £1.15
5	MO2312120 Available to backorder	Flat Washer MB28 . MB28D	£1.40 £1.17
6	MO3745530 Available to backorder	Grommet MB28 . MB28D	£3.52 £2.93
7	MO2653280 Available to backorder	Screw MB28 . MB28D	£1.40 £1.17
11	MO2132510 Available to backorder	Screw MB28 . MB28D	£1.38 £1.15
12	MO2321050 Available to backorder	Washer MB28 . MB28D	£1.40 £1.17
13	MO3210660 Available to backorder	Electronic Coil MB28 . MB28D	£72.72 £60.60
15	MO3782470 Available to backorder	Wire Sheath MB28 . MB28D	£10.36 £8.63
18	MO4251471 Available to backorder	Flywheel Ass.Y Pos 7 - 10 incl. _ MB28 . MB28D	£73.39 £61.16
19	MO2670120 Available to backorder	Nut MB28 . MB28D	£1.40 £1.17
20	MO2135050 Available to backorder	Screw MB28 . MB28D	£1.33 £1.11
21	MO1L3630600/1 Available to backorder	Throttle Cable Adjuster MB28 . MB28D	£5.76 £4.80
22	MO2412090 Available to backorder	Nut MB28 . MB28D	£1.40 £1.17
24	MO3745130 Available to backorder	Grommet MB28 . MB28D	£1.40 £1.17
26	MO3151010 Available to backorder	Flywheel Key MB28 . MB28D	£1.33 £1.11
27	MO3614891 Available to backorder	Washer-Piston MB28 . MB28D	£3.79 £3.16
27	MO3116100 Available to backorder	Needle Bearing MB28 . MB28D	£7.13 £5.94
28	MO4251950 Available to backorder	Crankshaft MB28 . MB28D	£147.80 £123.17
29	MO3112240 Available to backorder	Needle Bearing MB28 . MB28D	£10.14 £8.45
30	MO3724031 Available to backorder	Crankcase Gasket MB28 . MB28D	£3.52 £2.93
31	MO2432040 Available to backorder	Nut MB28 . MB28D	£1.33 £1.11
32	MO2123100 Available to backorder	Screw MB28 . MB28D	£1.28 £1.07
33	MO3654050 Available to backorder	Spring MB28 . MB28D	£1.40 £1.17
34	MO3749570 Available to backorder	Starter Hook MB28 . MB28D	£1.33 £1.11
35	MO8540810 Available to backorder	Starter Cup Assy Pos 32 - 34 incl. _ MB28 . MB28D	£43.28 £36.07
36	MO2312090 Available to backorder	Flat Washer MB28 . MB28D	£1.33 £1.11
41	MO3748880 Available to backorder	Spark Plug Cap MB28 . MB28D	£2.03 £1.69
42	MO3657050 Available to backorder	Spark Plug Spring MB28 . MB28D	£3.94 £3.28
43	3359 In stock	Spark Plug (Cj7Y) Champion CJ7Y _ MB28. MB28D	£3.84 £3.20
44	MO2135150 Available to backorder	Screw MB28 . MB28D	£1.40 £1.17
45	MO3724250 Available to backorder	Cylinder Gasket MB28 . MB28D	£1.99 £1.66
46	MO3123210 Available to backorder	Piston Ring MB28 . MB28D	£4.93 £4.11
47	MO3158220 Available to backorder	Piston Pin MB28 . MB28D	£3.67 £3.06
48	MO3356050 Available to backorder	Circlip Ring MB28 . MB28D	£1.40 £1.17
49	MO3L8541100/1 Available to backorder	Piston Assy Ø 35 Pos 46 - 48 incl. _ MB28 . MB28D	£66.16 £55.13
50	MO8541093 Available to backorder	Cylinder - Piston Ass'Y Pos 49 incl. _ MB28 . MB28D	£216.71 £180.59
52	MO4253290 Available to backorder	Intake Filter MB28 . MB28D	£13.42 £11.18
53	MO8745540 In stock	Grommet Assy MB28 . MB28D	£16.06 £13.38
54	MO8741370 Available to backorder	Fuel Tank Cap MB28 . MB28D	£5.83 £4.86
55	MO4251387 Available to backorder	Fuel Tank Assy Pos 52 - 54 incl. _ MB28 . MB28D	£52.20 £43.50
57	MO2112310 Available to backorder	Screw MB28 . MB28D	£1.33 £1.11
58	MO2135180 Available to backorder	Screw MB28 . MB28D	£1.40 £1.17
