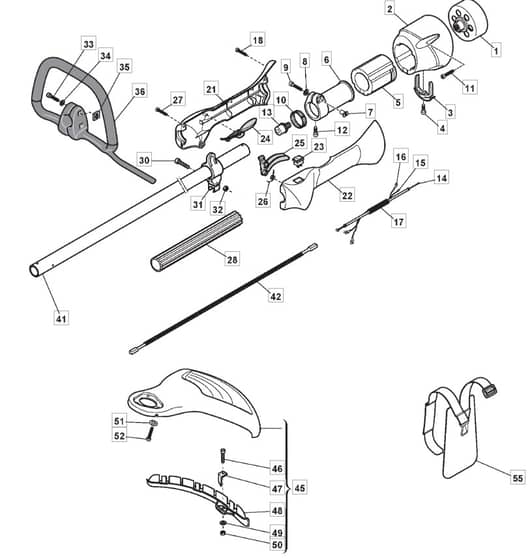

MB 26 - 2005-2007 - 282820003/MOU - Mountfield Brushcutter Handle Diagram

Name: MB 26 - 2005-2007 - 282820003/MOU - Mountfield Brushcutter Handle Diagram
SKU: mb_26_282820003_mou_handle-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MB 26 - 2005-2007 - 282820003/MOU - Mountfield Brushcutter Handle Diagram

Description

Mountfield MB 26 Parts Diagram

Model Year - 2005-2007

Model Type - STAR 28

Art.N - 282820003/MOU

Be the first to review this product

0 product questions

	Part No.	Details
1	MO383050004/0 Available to backorder	Drum Ass'Y. Clutch	£35.20 £29.33
2	MO323782005/0 Available to backorder	Support Transmission Assy	£33.11 £27.59
3	MO323232001/0 Available to backorder	Fork	£1.79 £1.49
5	MO323275000/0 Available to backorder	Grommet	£5.64 £4.70
6	MO323782003/0 Available to backorder	Support Transmission Assy	£5.60 £4.67
7	MO3643470 Available to backorder	Bushing	£3.24 £2.70
8	MO2312020 Available to backorder	Washer	£1.33 £1.11
11	MO2135160 Available to backorder	Screw	£1.40 £1.17
12	MO2653090 Available to backorder	Screw	£1.40 £1.17
13	MO123445258/0 Available to backorder	Safety Cover Honda	£12.67 £10.56
18	MO2123100 Available to backorder	Screw	£1.28 £1.07
21	MO323700002/0 Available to backorder	Right Handgrip	£6.76 £5.63
22	MO323700003/0 Available to backorder	Left Handgrip	£7.74 £6.45
23	MO118800202/0 Available to backorder	Stop Switch	£1.82 £1.52
25	MO323315054/0 Available to backorder	Safety Lever	£6.90 £5.75
27	MO2123030 Available to backorder	Screw	£1.33 £1.11
28	MO323170000/0 Available to backorder	Spacer	£1.40 £1.17
30	MO2135040 Available to backorder	Screw	£1.38 £1.15
32	MO2412030 Available to backorder	Nut	£1.38 £1.15
33	MO2135050 Available to backorder	Screw	£1.33 £1.11
34	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
35	MO2461030 Available to backorder	Nut	£1.33 £1.11
41	MO383869052/0 Available to backorder	Transmission Tube Ass.Y	£59.12 £49.27
42	MO123020009/0 Available to backorder	Spike	£39.31 £32.76
45	MO383465003/0 Available to backorder	Safety Cover Ass.Y	£31.12 £25.93
46	MO2135030 Available to backorder	Screw	£1.40 £1.17
47	MO3615000 Available to backorder	Line Cutter Blade	£8.84 £7.37
48	MO323600051/0 Available to backorder	Disc Protection	£13.12 £10.93
50	MO2432040 Available to backorder	Nut	£1.33 £1.11
51	MO2312150 Available to backorder	Washer	£1.33 £1.11
52	MO2135180 Available to backorder	Screw	£1.40 £1.17
55	MO118804015/1 Available to backorder	Single Harness	£58.54 £48.78
